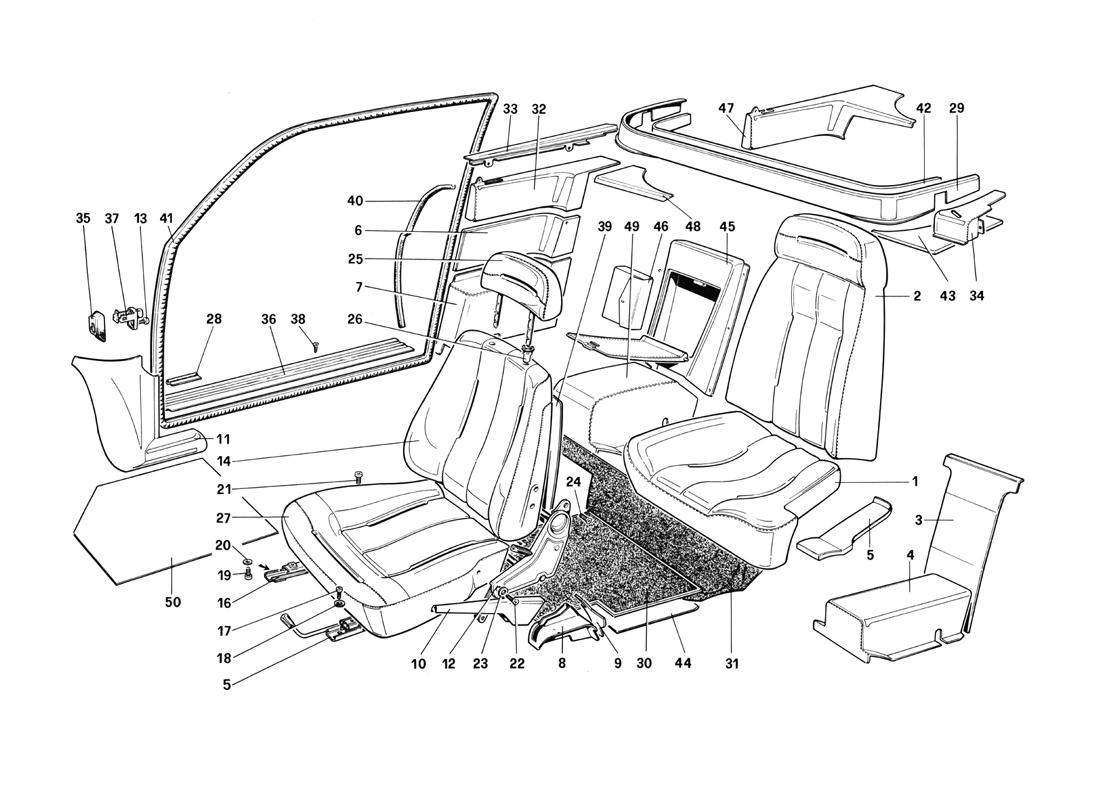

SEATS - QUATTROVALVOLE

Go to Split View

SEATS - QUATTROVALVOLE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 60667300 *Qty: 1 Front L.H. seat, complete $1,623.34
Location: - Prev | Next Part: 60667200 *Qty: 1 Front R.H. seat, complete Unavailable
Location: 1 Prev | Next Part: 61176400 *Qty: 1 L.H. seat cushion with covering (from 83) $1,399.93
Location: 1 Prev | Next Part: 61176300 *Qty: 1 R.H. seat cushion with covering (from 83) $1,399.93
Location: 1 Prev | Next Part: 60669100 *Qty: 2 Rear seat cushion with covering (to 82) Unavailable
Location: 1 Prev | Next Part: 60905400 *Qty: 1 Covering (to 82) $634.52
Location: 1 Prev | Next Part: 61177000 *Qty: 1 Covering R.H. (from 83) $911.48
Location: 1 Prev | Next Part: 61177100 *Qty: 1 Covering L.H. (from 83) $787.62
Location: 2 Prev | Next Part: 61176500 *Qty: 2 Rear seat squab with covering (from 83) $1,869.68
Location: 2 Prev | Next Part: 60905500 *Qty: 2 Covering (to 82) $369.22
Location: 2 Prev | Next Part: 60694800 *Qty: 2 Rear seat squab with covering (to 82) $1,597.42
Location: 2 Prev | Next Part: 61177200 *Qty: 2 Covering (from 83) $943.04
Location: 3 Prev | Next Part: 60680800 *Qty: 1 Central framework with covering (to 82) $722.16
Location: 4 Prev | Next Part: 60681200 *Qty: 1 Lower framework with coverinq (to 82) $1,191.91
Location: 5 Prev | Next Part: 60681900 *Qty: 1 R.H. framework with covering (to 82) Unavailable
Location: 5 Prev | Next Part: 60681600 *Qty: 1 L.H. framework with covering (to 82) Unavailable
Location: 6 Prev | Next Part: 60682300 *Qty: 1 L.H. framework with covering (to 82) Unavailable
Location: 6 Prev | Next Part: 60682600 *Qty: 1 R.H. framework with covering (to 82) $337.71
Location: 6 Prev | Next Part: 61163000 *Qty: 1 L.H. framework with covering (from 83) $276.94
Location: 6 Prev | Next Part: 61163200 *Qty: 1 R.H. framework with covering (from 83) $276.94
Location: 7 Prev | Next Part: 60683200 *Qty: 1 Covering L.H. (to 82) $229.28
Location: 7 Prev | Next Part: 60683500 *Qty: 1 Covering R.H. (to 82) $229.28
Location: 7 Prev | Next Part: 60683000 *Qty: 1 L.H. framework with covering (to 82) Unavailable
Location: 7 Prev | Next Part: 61163600 *Qty: 1 Covering L.H. (from 83) $155.66
Location: 7 Prev | Next Part: 60683300 *Qty: 1 R.H. framework with covering (to 82) Unavailable
Location: 7 Prev | Next Part: 61163800 *Qty: 1 Covering R.H. (from 83) $155.66
Location: 7 Prev | Next Part: 61163500 *Qty: 1 L.H. framework with covering (from 83) $622.84
Location: 7 Prev | Next Part: 61163700 *Qty: 1 R.H. framework with covering (from 83) $622.84
Location: 8 Prev | Next Part: 61164200 *Qty: 1 Covering (LHD)
From car 43013
Unavailable
Location: 8 Prev | Next Part: 60694700 *Qty: 1 Covering (LHD)
To car 43011
$134.40
Location: 8 Prev | Next Part: 61164900 *Qty: 1 Covering (RHD) Unavailable
Location: 8 Prev | Next Part: 60694500 *Qty: 1 Framework with covering (LHD)
To car 43011
$281.64
Location: 8 Prev | Next Part: 61164700 *Qty: 1 Framework with covering (RHD) Unavailable
Location: 8 Prev | Next Part: 61164000 *Qty: 1 Framework with covering (LHD)
From car 43013
$317.84
Location: 9 Prev | Next Part: 61165000 *Qty: 1 Protection (RHD) $37.87
Location: 9 Prev | Next Part: 61165500 *Qty: 1 Protection (LHD)
From car 43013
$17.17
Location: 9 Prev | Next Part: 60719200 *Qty: 1 Protection (LHD)
To car 43011
$21.52
Location: 10 Prev | Next Part: 60727000 *Qty: 1 Covering for brake lever $80.18
Location: 11 Prev | Next Part: 60733400 *Qty: 1 L.H. covering tubes $118.73
Location: 11 Prev | Next Part: 60733300 *Qty: 1 R.H. covering tubes
To 31-10-82
$124.36
Location: 11 Prev | Next Part: 61184600 *Qty: 1 R.H. covering tubes
From 1-1 1-82
$94.66
Location: 12 Prev | Next Part: 60675300 *Qty: 1 Adjuster for R.H. seat $400.82
Location: 12 Prev | Next Part: 60675400 *Qty: 1 Adjuster for L.H. seat $400.82
Location: 13 Prev | Next Part: 15671102 *Qty: 2 Screw $0.90
Location: 14 Prev | Next Part: 60905100 *Qty: 2 Covering $749.15
Location: 14 Prev | Next Part: 60872200 *Qty: 2 Front seat squab with covering Unavailable
Location: 15 Prev | Next Part: 60668500 *Qty: 1 Guide and control for L.H. seat $556.23
Location: 15 Prev | Next Part: 60668400 *Qty: 1 Guide and control for R.H. seat $463.92
Location: 16 Prev | Next Part: 60668600 *Qty: 2 Seat guide, without control $609.98
Location: 17 Prev | Next Part: 20293306 *Qty: 8 Screw Superseded
Location: 18 Prev | Next Part: 11193870 *Qty: 8 Washer Superseded
Location: 19 Prev | Next Part: 14305220 *Qty: 10 Screw $0.90
Location: 20 Prev | Next Part: 11197770 *Qty: 10 Washer Superseded
Location: 21 Prev | Next Part: 60801600 *Qty: 2 Screw $0.90
Location: 22 Prev | Next Part: 60719800 *Qty: 4 Screw $1.07
Location: 23 Prev | Next Part: 12520302 *Qty: 4 Washer $2.17
Location: 24 Prev | Next Part: 50206507 *Qty: 4 Screw $1.66
Location: 25 Prev | Next Part: 60820800 *Qty: 2 Covering $138.59
Location: 25 Prev | Next Part: 60667400 *Qty: 2 Headrest with covering $1,180.22
Location: 26 Prev | Next Part: 20058905 *Qty: 4 Bush $35.87
Location: 27 Prev | Next Part: 60905200 *Qty: 2 Covering $1,007.54
Location: 27 Prev | Next Part: 60872100 *Qty: 2 Front cushion with covering Unavailable
Location: 28 Prev | Next Part: 60904200 *Qty: 2 Gasket (LHD) Superseded
Location: 29 Prev | Next Part: 61186500 *Qty: 1 Framework with covering (from 83) $438.21
Location: 29 Prev | Next Part: 60683900 *Qty: 1 Framework with covering (to 82) $1,248.00
Location: 30 Prev | Next Part: 60782200 *Qty: 1 Rear L.H. carpet (LHD) Unavailable
Location: 30 Prev | Next Part: 60785100 *Qty: 1 Rear L.H. carpet (RHD) Unavailable
Location: 30 Prev | Next Part: 60786200 *Qty: 1 Rear R.H. carpet (RHD) Unavailable
Location: 30 Prev | Next Part: 60783400 *Qty: 1 Rear R.H. carpet (LHD) Unavailable
Location: 31 Prev | Next Part: 60782800 *Qty: 1 Rear vertical carpet (LHD) Unavailable
Location: 31 Prev | Next Part: 60785700 *Qty: 1 Rear vertical carpet (RHD) Unavailable
Location: 32 Prev | Next Part: 61189900 *Qty: 1 L.H. framework with covering (from 83) $159.64
Location: 32 Prev | Next Part: 61190100 *Qty: 1 R.H. framework with covering (from 83) $169.67
Location: 33 Prev | Next Part: 60686400 *Qty: 1 Moulding L.H. - To 82 $86.02
Location: 33 Prev | Next Part: 60686700 *Qty: 1 Moulding R.H. - To 82 $86.02
Location: 33 Prev | Next Part: 61190900 *Qty: 1 Moulding R.H. - From 83 $96.08
Location: 33 Prev | Next Part: 61190400 *Qty: 1 Moulding L.H. - From 83 $117.11
Location: 34 Prev | Next Part: 60684300 *Qty: 1 Cover for rear belt L.H. - To 82 $296.80
Location: 34 Prev | Next Part: 60684600 *Qty: 1 Cover for rear belt R.H. - To 82 $296.80
Location: 34 Prev | Next Part: 61184000 *Qty: 1 Cover for rear belt R.H. - From 83 $292.16
Location: 34 Prev | Next Part: 61183800 *Qty: 1 Cover for rear belt L.H. - From 83 $237.24
Location: 35 Prev | Next Part: 50313303 *Qty: 2 Gasket for switch $0.90
Location: 36 Prev | Next Part: 60675000 *Qty: 1 R.H. moulding, underdoor Unavailable
Location: 36 Prev | Next Part: 60674900 *Qty: 1 L.H. moulding, underdoor $495.18
Location: 37 Prev | Next Part: 50313204 *Qty: 2 Switch $11.94
Location: 38 Prev | Next Part: 15901372 *Qty: 8 Screw $0.90
Location: 39 Prev | Next Part: 60905300 *Qty: 2 Covering $181.14
Location: 39 Prev | Next Part: 60689200 *Qty: 2 Panel seat with covering $350.59
Location: 40 Prev | Next Part: 60726300 *Qty: 2 Gasket $7.26
Location: 41 Prev | Next Part: 60997700 *Qty: 1 R.H. gasket
Tropic only
$173.65
Location: 41 Prev | Next Part: 60924100 *Qty: 1 R.H. gasket
Tropic excluded
Unavailable
Location: 41 Prev | Next Part: 60924000 *Qty: 1 L.H. gasket
Tropic excluded
$302.76
Location: 41 Prev | Next Part: 60997800 *Qty: 1 L.H. gasket
Tropic only
$200.76
Location: 42 Prev | Next Part: 61094200 *Qty: 1 Insulation
Tropic only
Unavailable
Location: 43 Prev | Next Part: 61094300 *Qty: 1 Insulation R.H.
Tropic only
Unavailable
Location: 43 Prev | Next Part: 61094400 *Qty: 1 Insulation L.H.
Tropic only
Unavailable
Location: 44 Prev | Next Part: 61601500 *Qty: 2 Rear self adhesive carpet (LHD) $65.45
Location: 44 Prev | Next Part: 61601800 *Qty: 2 Rear self adhesive carpet (RHD) $25.50
Location: 45 Prev | Next Part: 61152900 *Qty: 1 Rear glove box (from 83) $1,248.00
Location: 46 Prev | Next Part: 61184900 *Qty: 1 First aid kit (from 83) Unavailable
Location: 47 Prev | Next Part: 60683700 *Qty: 1 L.H. framework with covering (to 82) $483.76
Location: 47 Prev | Next Part: 60683800 *Qty: 1 R.H. framework with covering (to 82) $487.30
Location: 48 Prev | Next Part: 61190000 *Qty: 1 L.H.rearframeworkwithcovering $91.16
Location: 48 Prev | Next Part: 61190200 *Qty: 1 R.H.rearframeworkwithcovering $91.16
Location: 49 Prev | Next Part: 61162800 *Qty: 1 Lower framework with covering (from83 $983.90
Location: 50 Prev | Next Part: 61601400 *Qty: 1 Front self adhesive carpet L.H. (LHD) $83.93
Location: 50 Prev | Next Part: 61601300 *Qty: 1 Front self adhesive carpet L.H. (LHD) $65.45
Location: 50 Prev | Next Part: 61601700 *Qty: 1 Front self adhesive carpet L.H. (RHD) $62.39
Location: 50 Prev | Next Part: 61601600 *Qty: 1 Front self adhesive carpet R.H. (RHD) $91.87

* Quantity shown indicates the number of pieces used in the diagram.
