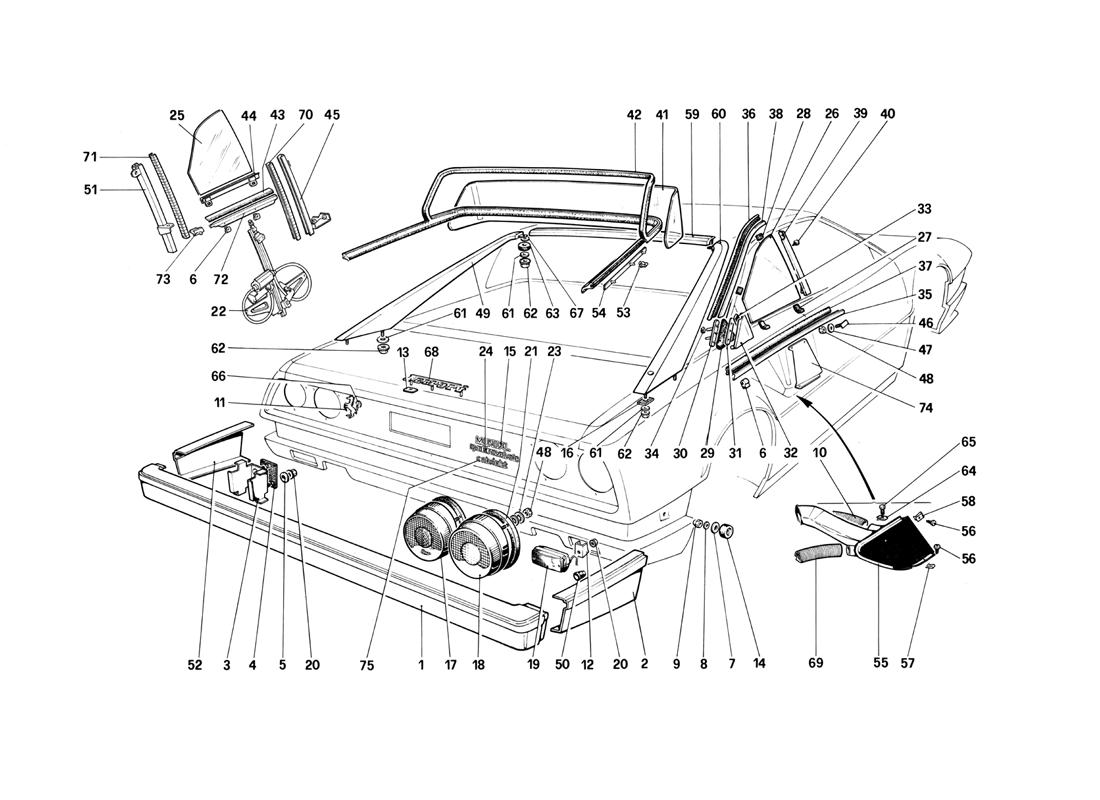

BUMPERS, LIGHTS AND REAR GLASSES

Go to Split View

BUMPERS, LIGHTS AND REAR GLASSES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60573600 *Qty: 1 Bumper, centre rear $1,550.33
Location: 2 Prev | Next Part: 60574400 *Qty: 1 Bumper, R.H. rear $264.57
Location: 3 Prev | Next Part: 60574100 *Qty: 1 L.H. bracket fixing bumper $98.49
Location: 3 Prev | Next Part: 60574000 *Qty: 1 R.H. bracket fixing bumper $158.97
Location: 4 Prev | Next Part: 60574200 *Qty: 2 Gasket $4.42
Location: 5 Prev | Next Part: 12647001 *Qty: 4 Washer Superseded
Location: 6 Prev | Next Part: 4211210 *Qty: 10 Clip (4V.) $11.99
Location: 7 Prev | Next Part: 12640601 *Qty: 4 Washer Superseded
Location: 8 Prev | Next Part: 60946000 *Qty: 2 Spacer $9.89
Location: 9 Prev | Next Part: 12575411 *Qty: 4 Nut Superseded
Location: 10 Prev | Next Part: 61203100 *Qty: 1 Pipe $26.26
Location: 11 Prev | Next Part: 60032109 *Qty: 1 Rear house $36.03
Location: 12 Prev | Next Part: 60862200 *Qty: 2 Bracket for rear fog (D only) $25.83
Location: 13 Prev | Next Part: 60324506 *Qty: 2 Clip Superseded
Location: 14 Prev | Next Part: 60573500 *Qty: 2 Spacer $10.51
Location: 15 Prev | Next Part: 61121000 *Qty: 1 Mondial name
4V. - Tropic excluded
$124.46
Location: 15 Prev | Next Part: 61133200 *Qty: 1 Mondial name (Tropic only) Call
Location: 16 Prev | Next Part: 60995400 *Qty: 4 Gasket (4V.) $13.08
Location: 17 Prev | Next Part: 60669800 *Qty: 2 Parking - stop rear light Call
Location: 18 Prev | Next Part: 60170206 *Qty: 2 Direction - reverse rear light $199.52
Location: 19 Prev | Next Part: 60670000 *Qty: 2 Rear fog light Call
Location: 20 Prev | Next Part: 13832201 *Qty: 6 Nut $0.90
Location: 21 Prev | Next Part: 60592100 *Qty: 4 Gasket for rear lights Call
Location: 22 Prev | Next Part: 61293500 *Qty: 1 L.H. window regulator (Cab.) Call
Location: 22 Prev | Next Part: 61293400 *Qty: 1 R.H. window regulator (Cab.) Call
Location: 23 Prev | Next Part: 10615271 *Qty: 24 Washer $0.90
Location: 24 Prev | Next Part: 61121100 *Qty: 1 4V. name ()
Tropic Excluded
Call
Location: 25 Prev | Next Part: 61251000 *Qty: 1 L.H. glass (Cab.) $166.72
Location: 25 Prev | Next Part: 61250900 *Qty: 1 R.H. glass (Cab.) $166.72
Location: 26 Prev | Next Part: 60999900 *Qty: 1 L.H. glass tanned
Tropic only
$115.49
Location: 26 Prev | Next Part: 60999800 *Qty: 1 R.H. glass tanned
Tropic only
$124.94
Location: 26 Prev | Next Part: 60637500 *Qty: 1 R.H. glass bleu coloured (4V.) $453.76
Location: 26 Prev | Next Part: 60637600 *Qty: 1 L.H. glass blue coloured (4V.) $560.67
Location: 27 Prev | Next Part: 60743700 *Qty: 4 Lower grommet (4V.) Call
Location: 28 Prev | Next Part: 60743800 *Qty: 4 Upper grommet (4V.) $0.99
Location: 29 Prev | Next Part: 60663800 *Qty: 2 Rubber flap (4V.) Call
Location: 30 Prev | Next Part: 60663900 *Qty: 2 Flap fixing moulding (4V.) $3.17
Location: 31 Prev | Next Part: 60664000 *Qty: 2 Counter - moulding (4V.) $3.57
Location: 32 Prev | Next Part: 60664100 *Qty: 1 R.H. moulding on flap (4V.) Call
Location: 32 Prev | Next Part: 60664200 *Qty: 1 L.H. moulding on flap (4V.) Call
Location: 33 Prev | Next Part: 60664300 *Qty: 2 Gasket (4V.) $4.42
Location: 34 Prev | Next Part: 60324506 *Qty: 4 Clip (4V.) Superseded
Location: 35 Prev | Next Part: 60672700 *Qty: 1 L.H. moulding (4V.) $320.24
Location: 35 Prev | Next Part: 60672600 *Qty: 1 R.H. moulding (4V.) $320.24
Location: 36 Prev | Next Part: 60970600 *Qty: 2 Upper gasket (4V.) $4.26
Location: 37 Prev | Next Part: 60664800 *Qty: 2 Lower gasket (4V.) $14.05
Location: 38 Prev | Next Part: 60665200 *Qty: 1 Upper L.H. frame (4V.) $57.18
Location: 38 Prev | Next Part: 60665100 *Qty: 1 Upper R.H. frame (4V.) $58.60
Location: 39 Prev | Next Part: 60671600 *Qty: 1 Moulding for R.H. post (4V.) $72.76
Location: 39 Prev | Next Part: 60671700 *Qty: 1 Moulding for L.H. post (4V.) Call
Location: 40 Prev | Next Part: 15692178 *Qty: 6 Screw (4V.) $0.90
Location: 41 Prev | Next Part: 60999700 *Qty: 1 Thermic rear window
Tropic only
$1,423.76
Location: 41 Prev | Next Part: 60695000 *Qty: 1 Thermic rear window (4V.) Superseded
Location: 42 Prev | Next Part: 60854400 *Qty: 1 Gasket for rear window (4V.) $142.22
Location: 43 Prev | Next Part: 61293700 *Qty: 1 L.H. gasket (Cab.) $27.31
Location: 43 Prev | Next Part: 61293600 *Qty: 1 R.H. gasket (Cab.) $31.73
Location: 44 Prev | Next Part: 61293800 *Qty: 2 Frame for glass (Cab.) $24.12
Location: 45 Prev | Next Part: 61294100 *Qty: 1 Guide, front L.H. (Cab.) $197.03
Location: 45 Prev | Next Part: 61294000 *Qty: 1 Guide, front R.H. (Cab.) $355.92
Location: 46 Prev | Next Part: 60707200 *Qty: 4 Plate and screw (4V.) $4.02
Location: 47 Prev | Next Part: 12642801 *Qty: 4 Washer (4V.) $0.90
Location: 48 Prev | Next Part: 10794011 *Qty: 16 Nut
For Cab. Q.ty = 12
$0.90
Location: 49 Prev | Next Part: 60578300 *Qty: 1 Rubber for L.H. fins (4V.) $597.87
Location: 50 Prev | Next Part: 60838200 *Qty: 2 Protection $10.25
Location: 51 Prev | Next Part: 61294200 *Qty: 1 Guide, rear R.H. (Cab.) $37.03
Location: 51 Prev | Next Part: 61294300 *Qty: 1 Guide, rear L.H. (Cab.) $226.01
Location: 52 Prev | Next Part: 60574500 *Qty: 1 Bumper, L.H. rear Call
Location: 53 Prev | Next Part: 60109907 *Qty: 6 Clip (4V.) $2.11
Location: 54 Prev | Next Part: 60846900 *Qty: 2 Moulding fixing gasket (4V.) $51.51
Location: 55 Prev | Next Part: 61668500 *Qty: 1 R.H. air intake (Cab.)
CH only
Call
Location: 55 Prev | Next Part: 61272200 *Qty: 1 L.H. air intake (4V.) $850.43
Location: 55 Prev | Next Part: 61325300 *Qty: 1 R.H. air intake (4V.)
From chassis no. 49743 - Tropic and CH excluded
$1,106.61
Location: 55 Prev | Next Part: 61225800 *Qty: 1 L.H. air intake (Cab.) $935.48
Location: 55 Prev | Next Part: 61137500 *Qty: 1 R.H. air intake (4V.)
To chassis no. 46971 - Tropic and CH excluded
Superseded
Location: 55 Prev | Next Part: 61286300 *Qty: 1 R.H. air intake (4V.)
Tropic only
Call
Location: 55 Prev | Next Part: 61278200 *Qty: 1 R.H. air intake (4V.)
CH oniy
Call
Location: 55 Prev | Next Part: 61225500 *Qty: 1 R.H. air intake (Cab.)
CH excluded
$1,136.00
Location: 56 Prev | Next Part: 15688306 *Qty: 12 Screw $0.90
Location: 57 Prev | Next Part: 60674700 *Qty: 6 Clip $0.90
Location: 58 Prev | Next Part: 60714300 *Qty: 6 Clip $7.78
Location: 59 Prev | Next Part: 60578100 *Qty: 1 Rear rubber for roof (4V.) $551.21
Location: 60 Prev | Next Part: 60578200 *Qty: 1 Rubber for R.H. fins (4V.) $597.87
Location: 61 Prev | Next Part: 12643701 *Qty: 7 Washer (4V.) Superseded
Location: 62 Prev | Next Part: 13832101 *Qty: 7 Nut (4V.) $0.90
Location: 63 Prev | Next Part: 60580900 *Qty: 2 Rubber washer (4V.) $1.74
Location: 64 Prev | Next Part: 60740800 *Qty: 4 Clip $0.90
Location: 65 Prev | Next Part: 60740700 *Qty: 4 Screw $3.16
Location: 66 Prev | Next Part: 60995100 *Qty: 4 Gasket $2.97
Location: 67 Prev | Next Part: 60920000 *Qty: 3 Rubber washer $4.73
Location: 68 Prev | Next Part: 61025000 *Qty: 1 Ferrari name $63.46
Location: 69 Prev | Next Part: 61137200 *Qty: 1 Pipe (CH excluded) $128.88
Location: 70 Prev | Next Part: 61295000 *Qty: 2 Front gasket (Cab.) $32.85
Location: 71 Prev | Next Part: 61295100 *Qty: 2 Rear gasket (Cab.) Superseded
Location: 72 Prev | Next Part: 61297700 *Qty: 1 Moulding R.H. (Cab.) $92.47
Location: 72 Prev | Next Part: 61297800 *Qty: 1 Moulding L.H. (Cab.) $368.15
Location: 73 Prev | Next Part: 61424800 *Qty: 1 Terminal for R.H. moulding (Cab.) $2.80
Location: 73 Prev | Next Part: 61424900 *Qty: 1 terminal for L.H. moulding (Cab.) $5.47
Location: 74 Prev | Next Part: 61296300 *Qty: 1 Insert for R.H. air intake (Cab.) $65.72
Location: 74 Prev | Next Part: 61296400 *Qty: 1 Insert for L.H. air intake (Cab.) $59.24
Location: 75 Prev | Next Part: 61341100 *Qty: 1 Cabriolet name (Cab.) $26.68

* Quantity shown indicates the number of pieces used in the diagram.
