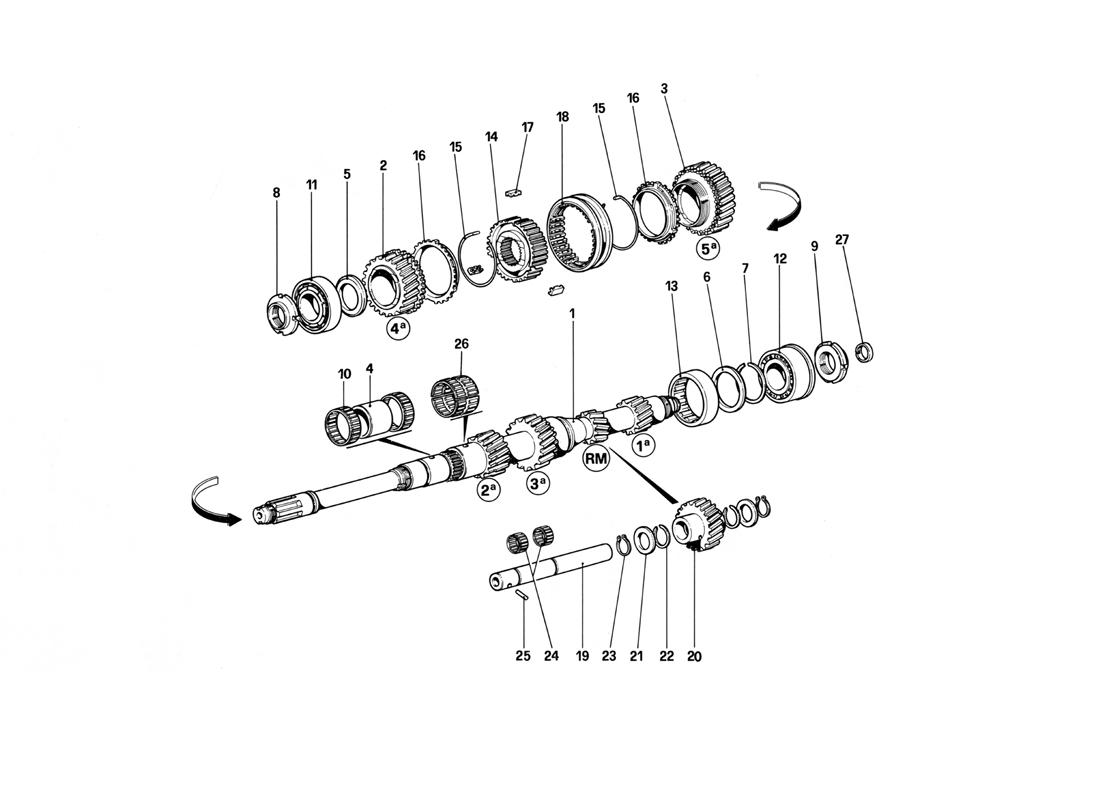

MAIN SHAFT GEARS

Go to Split View

MAIN SHAFT GEARS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119705 *Qty: 1 Mainshaft
CH version excluded
$5,106.67
Location: 1 Prev | Next Part: 119740 *Qty: 1 Mainshaft
CH only
$2,062.54
Location: 2 Prev | Next Part: 119718 *Qty: 1 Gear, 4th speed Unavailable
Location: 3 Prev | Next Part: 119719 *Qty: 1 Gear, 5th speed
CH version excluded
$1,699.36
Location: 3 Prev | Next Part: 119746 *Qty: 1 Gear, 5th speed
CH only
$1,830.67
Location: 4 Prev | Next Part: 113085 *Qty: 1 Bearing race 4th speed $60.86
Location: 5 Prev | Next Part: 104242 *Qty: 1 Spacer $87.60
Location: 6 Prev | Next Part: 105538 *Qty: 1 Spacer $60.12
Location: 7 Prev | Next Part: 112699 *Qty: 1 Spring ring $55.20
Location: 8 Prev | Next Part: 104252 *Qty: 1 Ring nut $40.00
Location: 9 Prev | Next Part: 104253 *Qty: 1 Ring nut $40.00
Location: 10 Prev | Next Part: 104255 *Qty: 2 Roller cage, 4th speed $41.90
Location: 11 Prev | Next Part: 108656 *Qty: 1 Bearing, clutch side $546.21
Location: 12 Prev | Next Part: 103042 *Qty: 1 Bearing $262.62
Location: 13 Prev | Next Part: 105539 *Qty: 1 Central bearing $101.98
Location: 14 Prev | Next Part: 106046 *Qty: 1 Synchronizer $902.57
Location: 15 Prev | Next Part: 108363 *Qty: 2 Ring spring $87.81
Location: 16 Prev | Next Part: 106048 *Qty: 2 Synchromesh ring $697.02
Location: 17 Prev | Next Part: 106049 *Qty: 3 Pad Superseded
Location: 18 Prev | Next Part: 106051 *Qty: 1 Sleeve $852.72
Location: 19 Prev | Next Part: 104221 *Qty: 1 Shaft for reverse idle gear $169.81
Location: 20 Prev | Next Part: 119713 *Qty: 1 Reverse idle gear $631.90
Location: 21 Prev | Next Part: 104249 *Qty: 2 Spacer $111.70
Location: 22 Prev | Next Part: 104250 *Qty: 2 Spring ring $1.38
Location: 23 Prev | Next Part: 11067075 *Qty: 2 Spring ring Superseded
Location: 24 Prev | Next Part: 104256 *Qty: 2 Roller cage for reverse idle gear $8.92
Location: 25 Prev | Next Part: 10336210 *Qty: 1 Pin $12.54
Location: 26 Prev | Next Part: 109002 *Qty: 2 Roller cage, 5th speed $31.46
Location: 27 Prev | Next Part: 113087 *Qty: 1 Ding $44.29

* Quantity shown indicates the number of pieces used in the diagram.
