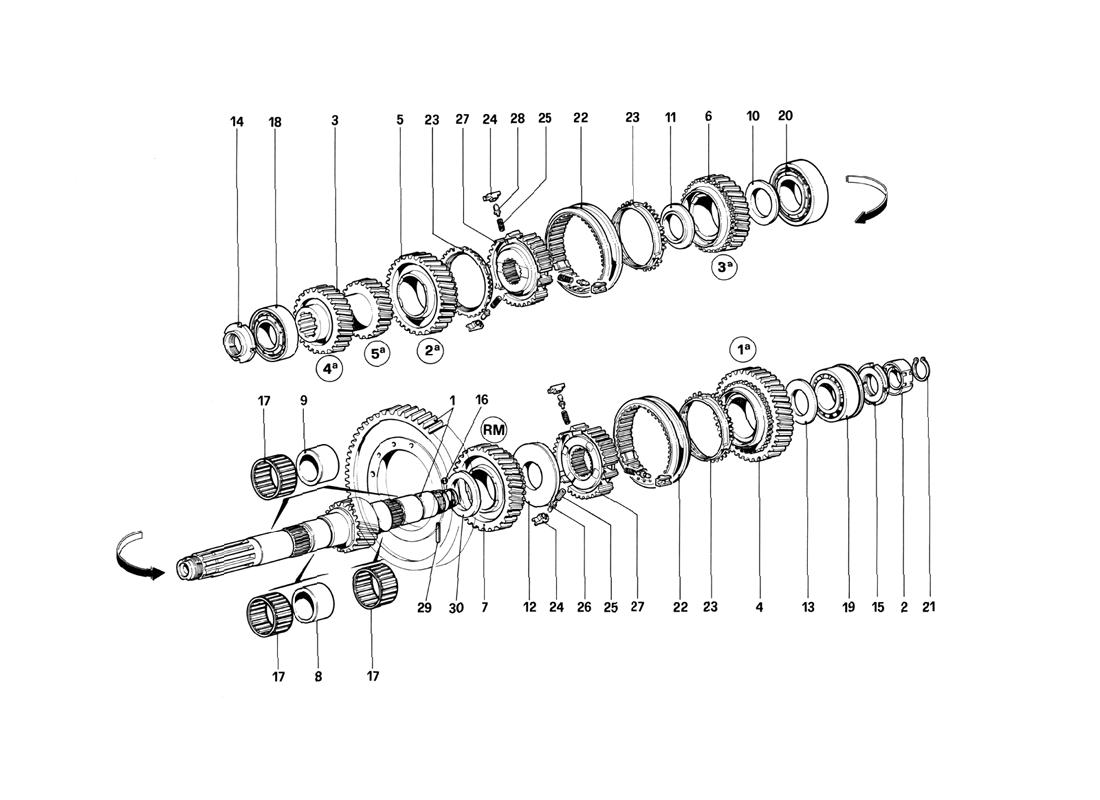

LAY SHAFT GEARS

Location Part # Quantity* Description Price Add To Cart
1 119725 1 Crown and pinion , complete
CH excluded 		$10,158.55
1 119706 1 Layshaft
With assembly no. 119725 		Unavailable
1 119748 1 Crown and pinion , complete
CH only 		Unavailable
1 119741 1 Layshaft
With assembly no. 119748 		Unavailable
2 116352 1 Disc for pulse generator $43.67
3 119742 1 Gear, 4th - 5th speeds
CH only 		$1,178.94
3 119707 1 Gear, 4th - 5th speeds
CH excluded 		$324.02
4 119715 1 Gear, 1st speed
CH excluded 		$2,025.49
4 119745 1 Gear, 1st speed
CH only 		$904.79
5 119716 1 Gear, 2nd speed Unavailable
6 119717 1 Gear, 3rd speed $2,560.18
7 119720 1 Gear, reverse Unavailable
8 113083 1 Bearing race, 3rd speed $88.06
9 113084 2 Bearing race, 1st - 2nd speeds $88.06
10 104245 1 Spacer $121.45
11 104246 1 Spacer $124.58
12 104247 1 Spacer $161.63
13 104248 1 Spacer $102.09
14 104252 1 Ring nut $40.00
15 104253 1 Ring nut $45.00
16 101611 1 Ball for worm screw Unavailable
17 104254 4 Roller cage for 1st, 2nd, 3rd speeds and reverse $73.06
18 108656 1 Bearing, clutch side $674.95
19 103042 1 Bearing $442.22
20 108657 1 Central bearing $467.51
21 11067376 1 Spring ring $1.79
22 106038 2 Sleeve for synchronizer Superseded
23 106040 3 Synchromesh ring $477.34
24 106042 6 Pad $278.88
25 106043 6 Spring $18.98
26 106044 3 Pin $96.61
27 106050 2 Synchronizer body $628.83
28 113412 3 Pin $39.06
29 13907570 1 Pin Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
