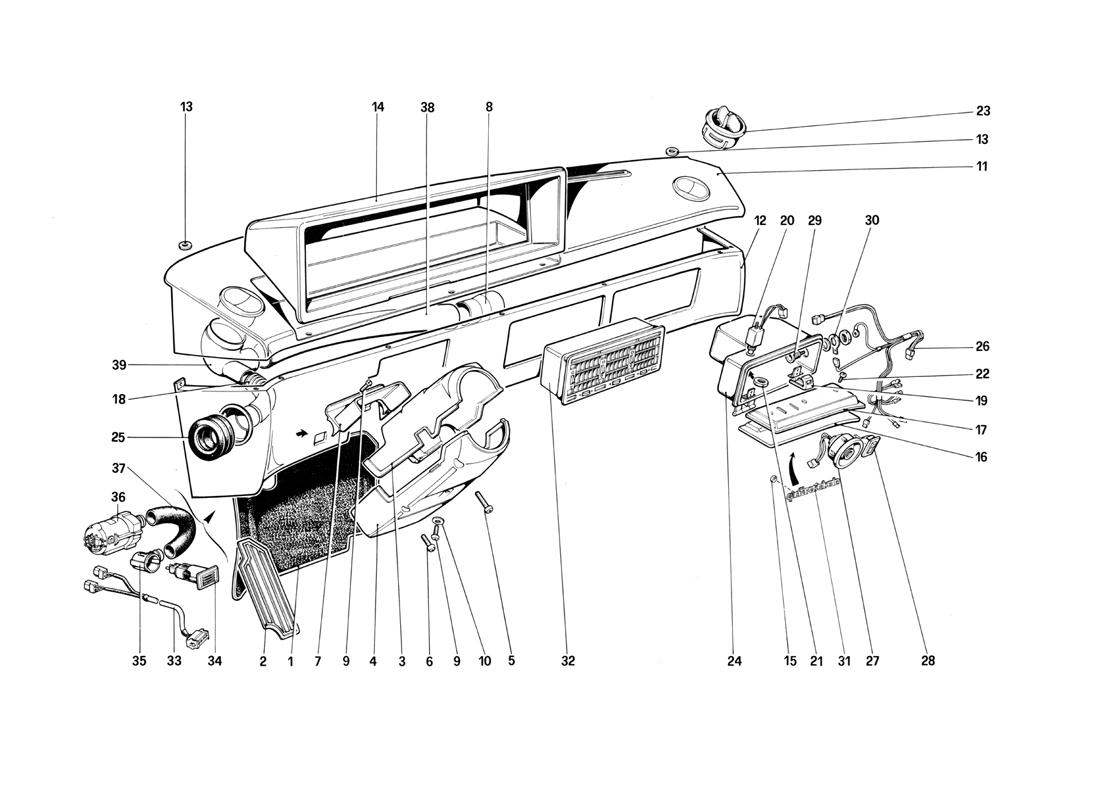

INSTRUMENT PANEL

Go to Split View

INSTRUMENT PANEL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 60654300 *Qty: 1 Cover for steering column complete (Cab.)
To exhaustion for 4V.
Superseded
Location: - Prev | Next Part: 61177400 *Qty: 1 Cover for steering column complete (4V.)
On exhaustion 60654300 - To 14.3.83
Superseded
Location: - Prev | Next Part: 61272900 *Qty: 1 Cover for steering column complete (4V.)
From 15.3.83
$137.11
Location: 1 Prev | Next Part: 60784700 *Qty: 1 Carpet, under pedals (RHD) Call
Location: 1 Prev | Next Part: 60781600 *Qty: 1 Carpet, under pedals (LHD) Call
Location: 2 Prev | Next Part: 60723400 *Qty: 1 Protection (LHD) $13.86
Location: 2 Prev | Next Part: 61158500 *Qty: 1 Protection (RHD) $13.65
Location: 3 Prev | Next Part: 60654400 *Qty: 1 Upper section
On exhaustion use no. 61177500
Superseded
Location: 4 Prev | Next Part: 61272800 *Qty: 1 Lower section
For cover complete no. 61272900
Call
Location: 4 Prev | Next Part: 60654500 *Qty: 1 Lower section
For cover complete no. 60654300
Superseded
Location: 4 Prev | Next Part: 61177600 *Qty: 1 Lower section
For cover complete no. 61177400
Call
Location: 5 Prev | Next Part: 15687708 *Qty: 2 Screw Call
Location: 6 Prev | Next Part: 15688208 *Qty: 2 Screw $1.00
Location: 7 Prev | Next Part: 60668000 *Qty: 1 Small upper cover Call
Location: 8 Prev | Next Part: 61274400 *Qty: 2 Fannel for A.C. tubes
From 16.12.82
$20.96
Location: 9 Prev | Next Part: 60702800 *Qty: 2 Screw $1.13
Location: 10 Prev | Next Part: 60702900 *Qty: 1 Washer $1.14
Location: 11 Prev | Next Part: 61116900 *Qty: 1 Upper dashboard (LHD - 4V.) Superseded
Location: 11 Prev | Next Part: 61130400 *Qty: 1 Upper dashboard (RHD - 4V.) $1,236.80
Location: 11 Prev | Next Part: 61216200 *Qty: 1 Upper dashboard (LHD - Cab.) Superseded
Location: 11 Prev | Next Part: 61440600 *Qty: 1 Upper dashboard (RHD - Cab.) Call
Location: 12 Prev | Next Part: 61116700 *Qty: 1 Lower dashboard (LHD) $823.13
Location: 12 Prev | Next Part: 61130200 *Qty: 1 Lower dashboard (RHD) $860.94
Location: 13 Prev | Next Part: 60657600 *Qty: 1 Rubber washer $1.90
Location: 14 Prev | Next Part: 61683500 *Qty: 1 Housing instruments with covering (RHD) $997.41
Location: 14 Prev | Next Part: 61683400 *Qty: 1 Housing instruments with covering (LHD) $997.41
Location: 15 Prev | Next Part: 14183376 *Qty: 3 Clip $0.90
Location: 16 Prev | Next Part: 61131700 *Qty: 1 Lid with covering (LHD) $113.81
Location: 16 Prev | Next Part: 60656000 *Qty: 1 Covering $56.49
Location: 16 Prev | Next Part: 61130700 *Qty: 1 Lid with covering (RHD) $207.25
Location: 17 Prev | Next Part: 60655400 *Qty: 1 Lid inner covering (LHD) $28.78
Location: 17 Prev | Next Part: 60734800 *Qty: 1 Lid inner covering (RHD) $33.80
Location: 18 Prev | Next Part: 60657300 *Qty: 2 Air pipe on door $20.17
Location: 19 Prev | Next Part: 60675600 *Qty: 1 Lock striker $1.78
Location: 20 Prev | Next Part: 60868600 *Qty: 1 Magnet Call
Location: 21 Prev | Next Part: 60538800 *Qty: 1 Ring nut $8.68
Location: 22 Prev | Next Part: 60675900 *Qty: 4 Screw $0.91
Location: 23 Prev | Next Part: 60656500 *Qty: 2 Side air outlet Call
Location: 24 Prev | Next Part: 60655700 *Qty: 1 Dashboard box (4V. - LHD) $54.18
Location: 24 Prev | Next Part: 61344000 *Qty: 1 Dashboard box (Cab. - LHD) $155.19
Location: 24 Prev | Next Part: 61440700 *Qty: 1 Dashboard box (Cab. - RHD) $243.59
Location: 24 Prev | Next Part: 60734900 *Qty: 1 Dashboard box (4V. - RHD) $117.39
Location: 25 Prev | Next Part: 60657400 *Qty: 2 Gasket $13.08
Location: 26 Prev | Next Part: 119429 *Qty: 1 Connecting cables $34.23
Location: 27 Prev | Next Part: 60743100 *Qty: 1 Glove box light $54.41
Location: 28 Prev | Next Part: 60743000 *Qty: 1 Switch $41.64
Location: 29 Prev | Next Part: 60701500 *Qty: 1 Socket $35.49
Location: 30 Prev | Next Part: 60701400 *Qty: 1 Negative terminal $5.37
Location: 31 Prev | Next Part: 61132700 *Qty: 1 Qua ttroval vole name $34.86
Location: 32 Prev | Next Part: 60657100 *Qty: 1 Central air outlet $540.00
Location: 33 Prev | Next Part: 119430 *Qty: 1 Cables for sensor $12.61
Location: 34 Prev | Next Part: 61079100 *Qty: 1 Sensor Call
Location: 35 Prev | Next Part: 61079200 *Qty: 1 Housing sensor $5.37
Location: 36 Prev | Next Part: 61079300 *Qty: 1 Suction fan for sensor Superseded
Location: 37 Prev | Next Part: 61089300 *Qty: 1 Pipe suction fan - sensor $12.13
Location: 38 Prev | Next Part: 61290600 *Qty: 1 Pipe A.C. - L.H. air outlet Superseded
Location: 38 Prev | Next Part: 61290700 *Qty: 1 Pipe A.C. - R.H. air outlet $66.57
Location: 39 Prev | Next Part: 60754000 *Qty: 1 Union for L.H. air outlet (RHD) $23.19
Location: 39 Prev | Next Part: 60753900 *Qty: 1 Union for R.H. air outlet (RHD) $23.19
Location: 39 Prev | Next Part: 60656800 *Qty: 1 Union for L.H. air outlet (LHD) $28.68
Location: 39 Prev | Next Part: 60656700 *Qty: 1 Union for R.H. air outlet (LHD) $28.68

* Quantity shown indicates the number of pieces used in the diagram.
