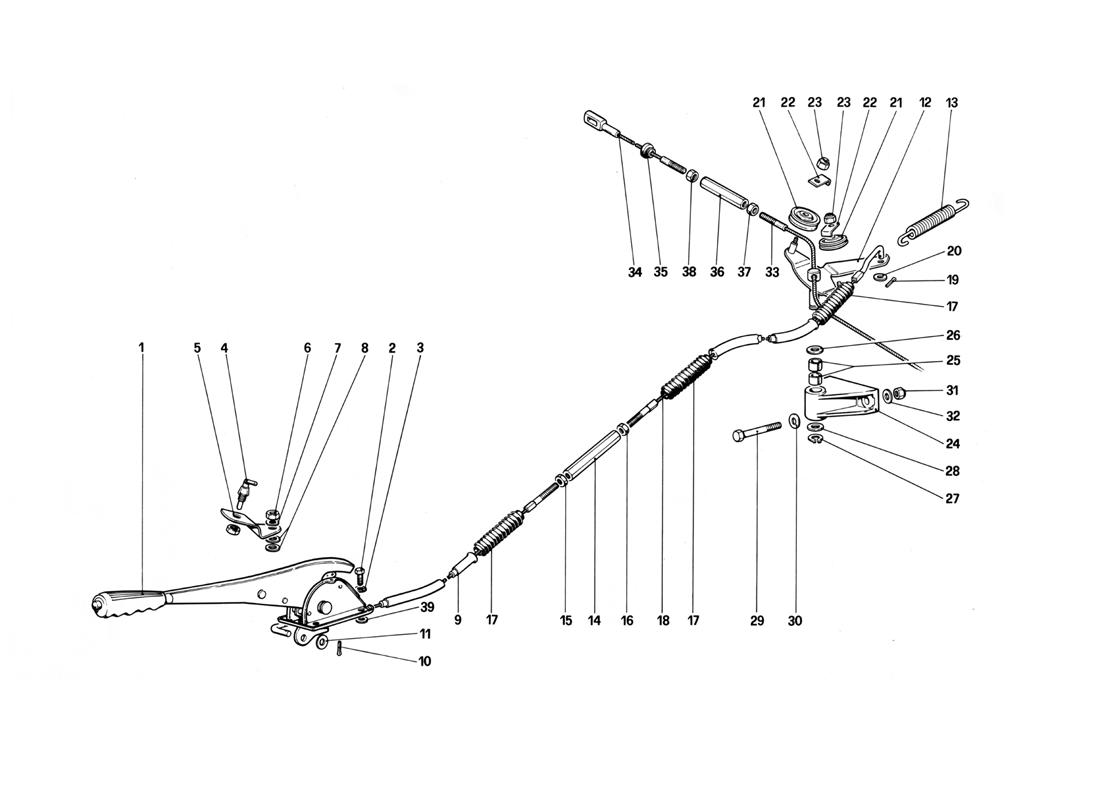

HAND - BRAKE CONTROL (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011)

Go to Split View

HAND - BRAKE CONTROL (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 114313 *Qty: 1 Hand brake lever $595.30
Location: 2 Prev | Next Part: 10902321 *Qty: 4 Screw Superseded
Location: 3 Prev | Next Part: 106850 *Qty: 4 Washer Superseded
Location: 4 Prev | Next Part: 114318 *Qty: 1 Switch $23.73
Location: 5 Prev | Next Part: 114320 *Qty: 1 Switch bracket $2.89
Location: 6 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 7 Prev | Next Part: 12605270 *Qty: 1 Washer $0.90
Location: 8 Prev | Next Part: 10519301 *Qty: 2 Washer
Possible fitting
$0.90
Location: 9 Prev | Next Part: 116418 *Qty: 1 Front cable $90.50
Location: 10 Prev | Next Part: 10734301 *Qty: 1 Split pin $0.90
Location: 11 Prev | Next Part: 12646701 *Qty: 1 Washer Superseded
Location: 12 Prev | Next Part: 115064 *Qty: 1 Rear rocker lever for cable $135.23
Location: 13 Prev | Next Part: 105260 *Qty: 1 Return spring $11.54
Location: 14 Prev | Next Part: 11092511 *Qty: 1 Adjuster Call
Location: 15 Prev | Next Part: 16102311 *Qty: 1 Locknut, right thread Superseded
Location: 16 Prev | Next Part: 16102911 *Qty: 1 Locknut, left thread Superseded
Location: 17 Prev | Next Part: 110947 *Qty: 3 Protection boot $21.64
Location: 18 Prev | Next Part: 116419 *Qty: 1 Rear cable $43.05
Location: 19 Prev | Next Part: 10734201 *Qty: 1 Split pin Call
Location: 20 Prev | Next Part: 10519601 *Qty: 1 Washer Superseded
Location: 21 Prev | Next Part: 104006 *Qty: 2 Sheave Call
Location: 22 Prev | Next Part: 105790 *Qty: 2 Plate $9.46
Location: 23 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 24 Prev | Next Part: 106415 *Qty: 1 Support $221.54
Location: 25 Prev | Next Part: 103227 *Qty: 2 Bush $3.16
Location: 26 Prev | Next Part: 106416 *Qty: 1 Washer $1.79
Location: 27 Prev | Next Part: 11066476 *Qty: 1 Seeger ring $0.90
Location: 28 Prev | Next Part: 106416 *Qty: 1 Washer $1.79
Location: 29 Prev | Next Part: 16044621 *Qty: 2 Screw $0.90
Location: 30 Prev | Next Part: 10519601 *Qty: 2 Washer Superseded
Location: 31 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 32 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 33 Prev | Next Part: 112854 *Qty: 1 Long rear caole $111.40
Location: 34 Prev | Next Part: 112855 *Qty: 1 Short rear cable $92.14
Location: 35 Prev | Next Part: 105794 *Qty: 2 Fair - lead $10.14
Location: 36 Prev | Next Part: 10091011 *Qty: 1 Adjuster Superseded
Location: 37 Prev | Next Part: 10725911 *Qty: 1 Locknut, ring thread Superseded
Location: 38 Prev | Next Part: 10727311 *Qty: 1 Locknut, left thread $1.81
Location: 39 Prev | Next Part: 104339 *Qty: 2 Spacer $4.92

* Quantity shown indicates the number of pieces used in the diagram.
