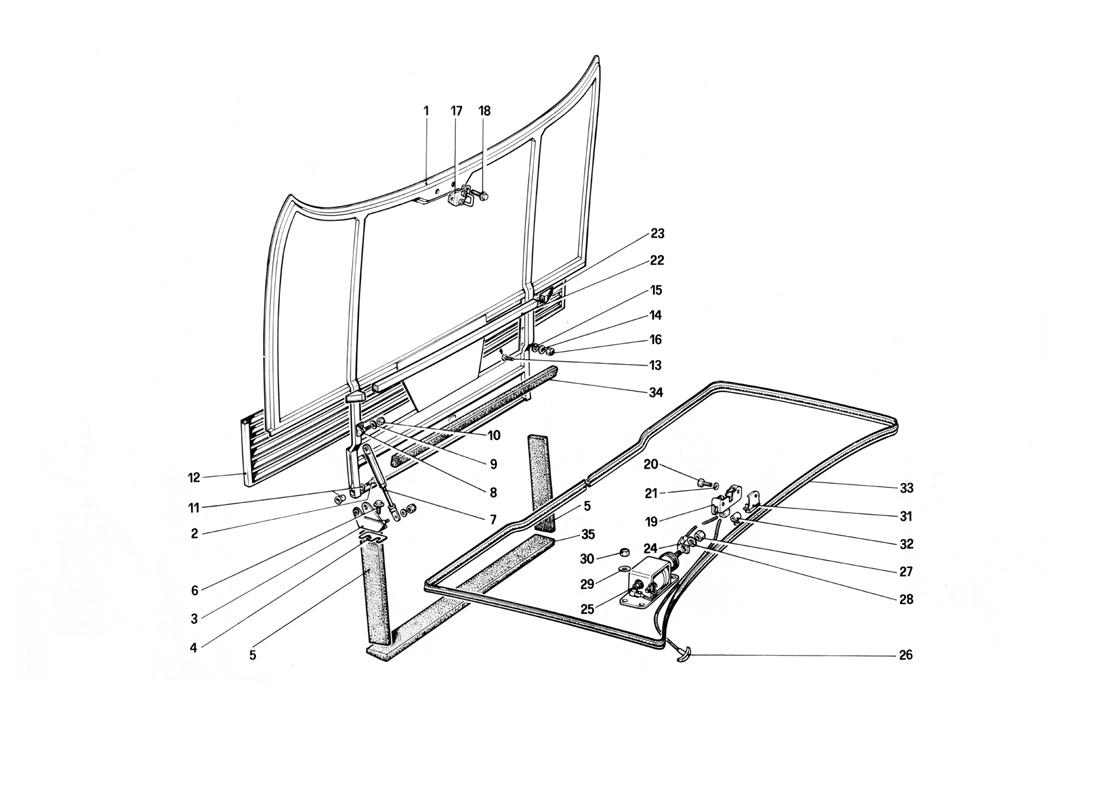

FRONT COMPARTMENT LID

Go to Split View

FRONT COMPARTMENT LID

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60919200 *Qty: 1 Front bonnet Call
Location: 2 Prev | Next Part: 60919100 *Qty: 2 Pin for hinge $18.76
Location: 3 Prev | Next Part: 60918600 *Qty: 1 Right hinge $58.81
Location: 3 Prev | Next Part: 60918700 *Qty: 1 Left hinge $54.49
Location: 4 Prev | Next Part: 60644700 *Qty: 6 Shim for hinge $4.26
Location: 5 Prev | Next Part: 60773500 *Qty: 2 Radiator side gasket $65.15
Location: 6 Prev | Next Part: 13838071 *Qty: 4 Screw, hexagonal - head $0.90
Location: 7 Prev | Next Part: 60559500 *Qty: 2 Support $84.38
Location: 8 Prev | Next Part: 60558800 *Qty: 2 Bracket $51.04
Location: 9 Prev | Next Part: 12639701 *Qty: 4 Washer Call
Location: 10 Prev | Next Part: 12574211 *Qty: 4 Selflocking nut Superseded
Location: 11 Prev | Next Part: 60919400 *Qty: 4 Bush $6.94
Location: 12 Prev | Next Part: 60559600 *Qty: 1 Grill Call
Location: 13 Prev | Next Part: 61349600 *Qty: 6 Fixing screw for grill
Only for light colour cars
$0.98
Location: 13 Prev | Next Part: 20297602 *Qty: 6 Fixing screw for grill
Only for dark colour cars
$11.53
Location: 14 Prev | Next Part: 12638108 *Qty: 6 Washer for grill Superseded
Location: 15 Prev | Next Part: 12604178 *Qty: 6 Spring washer for grill $0.90
Location: 16 Prev | Next Part: 14054048 *Qty: 6 Fixing nut for grill Superseded
Location: 17 Prev | Next Part: 60536900 *Qty: 1 Catch $31.75
Location: 18 Prev | Next Part: 13836301 *Qty: 2 Screw $0.90
Location: 19 Prev | Next Part: 60277407 *Qty: 1 Lock for front bonnet Call
Location: 20 Prev | Next Part: 20297503 *Qty: 2 Screw $0.90
Location: 21 Prev | Next Part: 10519501 *Qty: 2 Washer $0.90
Location: 22 Prev | Next Part: 60641400 *Qty: 1 Rear gasket for grill $8.20
Location: 23 Prev | Next Part: 60703000 *Qty: 2 Rubber piece $0.90
Location: 24 Prev | Next Part: 60559700 *Qty: 1 Cable $8.83
Location: 25 Prev | Next Part: 60536500 *Qty: 1 Electric bonnet opener Superseded
Location: 26 Prev | Next Part: 60706200 *Qty: 1 Emergency cable, opening bonnet $6.32
Location: 27 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 28 Prev | Next Part: 11195471 *Qty: 1 Spring washer Superseded
Location: 29 Prev | Next Part: 10519301 *Qty: 4 Washer $0.90
Location: 30 Prev | Next Part: 12574111 *Qty: 4 Selflocking nut Superseded
Location: 31 Prev | Next Part: 61164400 *Qty: 1 Warning light control
Bonnet open
$60.05
Location: 32 Prev | Next Part: 60276607 *Qty: 1 Cable clamp $36.37
Location: 33 Prev | Next Part: 60949300 *Qty: 1 Bonnet gasket $307.88
Location: 34 Prev | Next Part: 60773300 *Qty: 1 Radiator upper gasket Superseded
Location: 35 Prev | Next Part: 60773400 *Qty: 1 Radiator lower gasket $74.54

* Quantity shown indicates the number of pieces used in the diagram.
