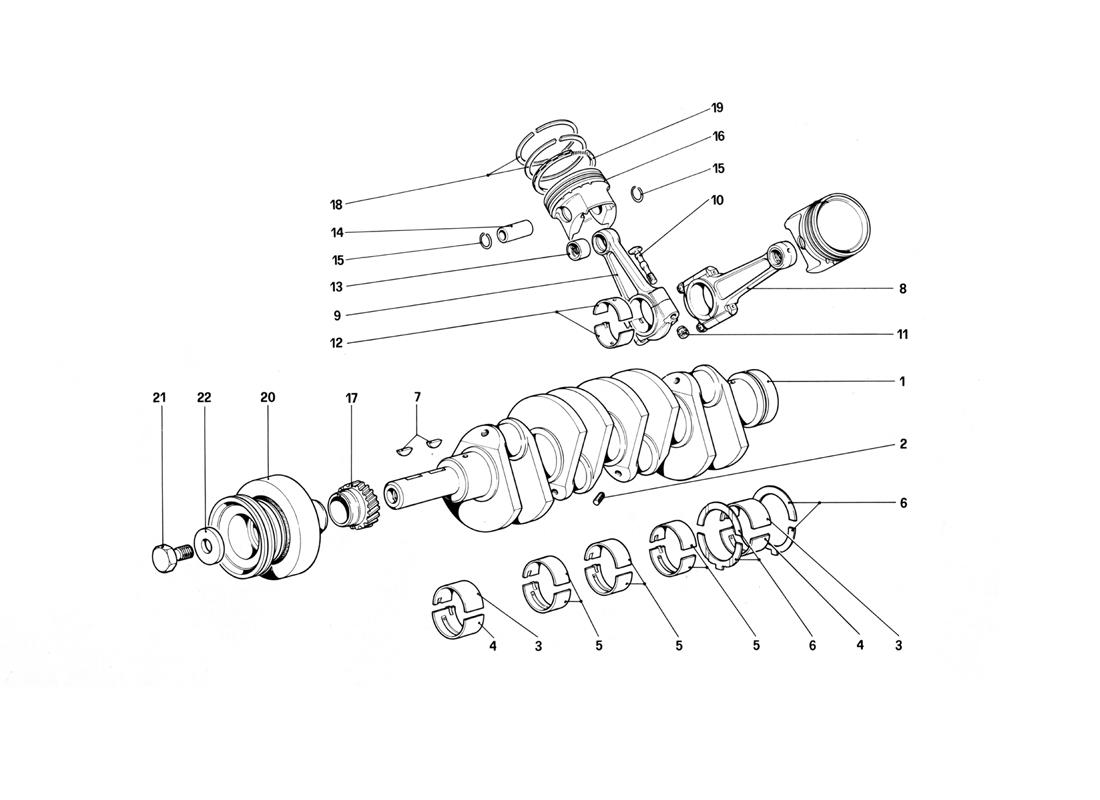

CRANKSHAFT - CONNECTING RODS AND PISTONS

Go to Split View

CRANKSHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 105623 *Qty: 1 Crankshaft Superseded
Location: 2 Prev | Next Part: 14326150 *Qty: 8 Plug Unavailable
Location: 3 Prev | Next Part: 100119 *Qty: 2 1st undersize 0,254 mm. on ? $100.61
Location: 3 Prev | Next Part: 100118 *Qty: 2 Upper half bearing $56.17
Location: 3 Prev | Next Part: 100119 *Qty: 2 1st undersize 0,254 mm. on ? $100.61
Location: 3 Prev | Next Part: 100120 *Qty: 2 2nd undersize 0,508 mm. on ? $45.97
Location: 4 Prev | Next Part: 100124 *Qty: 2 2nd undersize 0,508 mm. on ? $51.39
Location: 4 Prev | Next Part: 100123 *Qty: 2 1st undersize 0,254 mm. on ? $120.82
Location: 4 Prev | Next Part: 100124 *Qty: 2 2nd undersize 0,508 mm. on ? $51.39
Location: 4 Prev | Next Part: 100122 *Qty: 2 Lover half bearing $48.35
Location: 5 Prev | Next Part: 104024 *Qty: 6 1st undersize 0,254 mm. on ? Superseded
Location: 5 Prev | Next Part: 104023 *Qty: 6 Half bearing, upper and lower Unavailable
Location: 5 Prev | Next Part: 104024 *Qty: 6 1st undersize 0,254 mm. on ? Superseded
Location: 5 Prev | Next Part: 104025 *Qty: 6 2nd undersize 0,508 mm. on ? $46.59
Location: 6 Prev | Next Part: 113984 *Qty: 2 1st oversize 0,127 mm. $14.72
Location: 6 Prev | Next Part: 100146 *Qty: 2 Shim for rear support $31.97
Location: 6 Prev | Next Part: 100147 *Qty: 2 2nd oversize 0,25 mm. $15.56
Location: 7 Prev | Next Part: 10206020 *Qty: 2 Tongue $2.02
Location: 8 Prev | Next Part: 109738 *Qty: 8 Connecting rod, complete $869.67
Location: 9 Prev | Next Part: 109688 *Qty: 8 Connecting rod and cap
With assembly no. 109738
Unavailable
Location: 10 Prev | Next Part: 100156 *Qty: 16 Bolt securing con. rod $22.17
Location: 11 Prev | Next Part: 104011 *Qty: 16 Nut for con. rod bolt $13.65
Location: 12 Prev | Next Part: 100151 *Qty: 16 1st undersize 0,254 mm. on ? $70.43
Location: 12 Prev | Next Part: 100152 *Qty: 16 2nd undersize 0,508 mm. on ? $99.66
Location: 12 Prev | Next Part: 100150 *Qty: 16 Con. rod half bearing Superseded
Location: 12 Prev | Next Part: 100151 *Qty: 16 1st undersize 0,254 mm. on ? $70.43
Location: 13 Prev | Next Part: 107100 *Qty: 8 Bush for gudgeon pin
On exhaustion no. 100155
$26.66
Location: 14 Prev | Next Part: 104487 *Qty: 8 Gudgeon pin - For Borgo piston Unavailable
Location: 14 Prev | Next Part: 119537 *Qty: 8 Gudgeon pin - For Mahle piston $85.98
Location: 15 Prev | Next Part: 100174 *Qty: 16 Ring for gudgeon pin $4.59
Location: 16 Prev | Next Part: 119538 *Qty: 8 Piston with piston ring $317.80
Location: 17 Prev | Next Part: 119539 *Qty: 1 Set of pistons rings - For Mahle piston $129.71
Location: 17 Prev | Next Part: 117655 *Qty: 1 Driving sprocket for timing system $606.47
Location: 18 Prev | Next Part: 123710 *Qty: 16 AC conical seal ring (1st- 2nd groove)
With complete set no. 123714
Unavailable
Location: 18 Prev | Next Part: 119534 *Qty: 16 AC conical seal ring (1st- 2nd groove)
With complete set no. 119539
Unavailable
Location: 19 Prev | Next Part: 123711 *Qty: 8 ROF scraper ring with spring (3td groove)
With complete set no. 123714
Unavailable
Location: 19 Prev | Next Part: 123714 *Qty: 1 Set of piston ring
For Borgo piston
Unavailable
Location: 19 Prev | Next Part: 119535 *Qty: 8 ROF scraper ring with spring (3td groove)
With complete set no. 119539
Unavailable
Location: 20 Prev | Next Part: 105160 *Qty: 1 Torsion damper with pulley
Assembly with single belt
$4,050.25
Location: 20 Prev | Next Part: 121570 *Qty: 1 Torsion damper with pulley
Assembly with 2 individual belts
$728.83
Location: 20 Prev | Next Part: 122869 *Qty: 1 Torsion damper with pulley
With Sankyo compressor
$1,267.47
Location: 21 Prev | Next Part: 100476 *Qty: 1 Screw Superseded
Location: 22 Prev | Next Part: 102775 *Qty: 1 Washer $35.74

* Quantity shown indicates the number of pieces used in the diagram.
