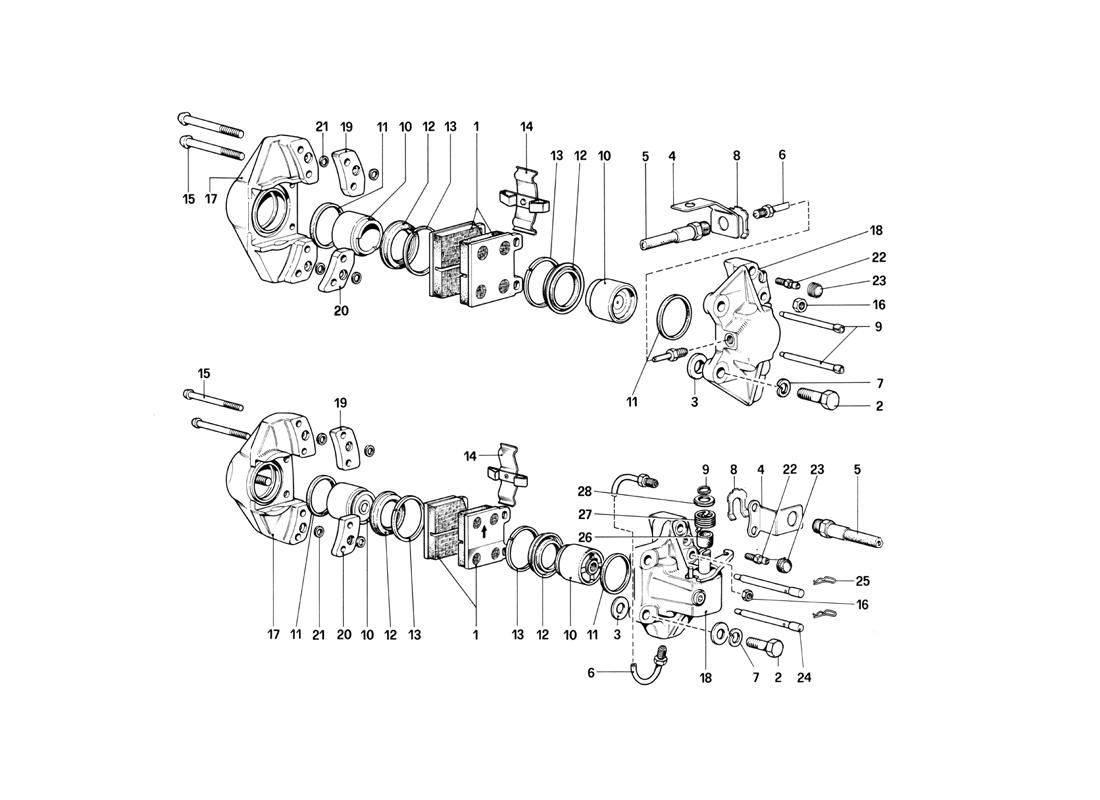

CALIPERS FOR FRONT AND REAR BRAKES (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011)
Location |
Part # |
Quantity* |
Description |
Price |
Add To Cart |
1
|
117411
|
1
|
Set of front pads FERODO I/D 332
|
$152.64
|
|
1
|
115775
|
1
|
Left rear caliper unit with pads FERODO I/D 332
|
|
Unavailable
|
1
|
115774
|
1
|
Right rear caliper unit with pads FERODO I/D 332
|
|
Unavailable
|
1
|
117412
|
1
|
Set of rear pads FERODO I/D 332
|
$137.72
|
|
1
|
115768
|
1
|
Right front caliper unit with pads FERODO I/D 332
|
$951.70
|
|
1
|
115769
|
1
|
Left front caliper unit with pads FERODO I/D 332
|
$951.70
|
|
2
|
112821
|
4
|
Bolt, fixing front calipers
|
$41.25
|
|
2
|
112821
|
4
|
Bolt, fixing rear calipers
|
$41.25
|
|
3
|
108918
|
4
|
Shim, thickness 0,2 mm., Possible fitting
|
|
Superseded
|
3
|
108919
|
4
|
Ditto, thickness 0,3 mm.
|
|
Unavailable
|
3
|
108920
|
4
|
Ditto, thickness 0,5 mm.
|
|
Superseded
|
3
|
108921
|
4
|
Ditto, thickness 0,6 mm.
|
|
Superseded
|
3
|
108922
|
4
|
Ditto, thickness 0,7 mm.
|
|
Unavailable
|
3
|
108923
|
4
|
Ditto, thickness 0,8 mm.
|
|
Superseded
|
3
|
108924
|
4
|
Ditto, thickness 1 mm.
|
|
Superseded
|
3
|
108918
|
4
|
Shim, thickness 0,2 mm. Possible fitting
|
|
Superseded
|
4
|
116394
|
2
|
Bracket for hose right
|
$12.48
|
|
4
|
116396
|
2
|
Bracket for hose
|
$57.37
|
|
4
|
116395
|
2
|
Bracket for hose left
|
$13.11
|
|
5
|
116373
|
2
|
Hose
|
|
Superseded
|
5
|
116489
|
2
|
Hose
|
$141.80
|
|
6
|
105856
|
2
|
Piping, hose to calipers
|
$11.92
|
|
6
|
101401
|
2
|
Piping, hose to calipers
|
|
Unavailable
|
7
|
10517071
|
4
|
Spring washer
|
|
Superseded
|
7
|
106854
|
4
|
Spring washer
|
|
Superseded
|
8
|
116374
|
4
|
Clip for hose
|
$2.82
|
|
9
|
ATE
|
2
|
Stop ring Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
9
|
-
|
2
|
Stop ring Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
9
|
ATE
|
2
|
Pin for pads With kit no. 117411
|
|
Unavailable
|
10
|
95691535
|
1
|
Set of sealing rings for 1 calyper
|
$48.94
|
|
10
|
ATE
|
4
|
Brake cylinder Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
10
|
ATE
|
4
|
Brake cylinder Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
10
|
-
|
4
|
Brake cylinder Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
10
|
-
|
4
|
Brake cylinder Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
11
|
95691536
|
1
|
Set of sealing rings for 1 caliper
|
|
Unavailable
|
11
|
-
|
4
|
Sealing ring With assembly no. 95691536
|
|
Unavailable
|
11
|
ATE
|
4
|
Sealing ring With assembly no. 95651535
|
|
Unavailable
|
11
|
ATE
|
4
|
Sealing ring With assembly no. 95691536
|
|
Unavailable
|
12
|
-
|
4
|
Dust protection ring With assembly no. 95651 535
|
|
Unavailable
|
12
|
ATE
|
4
|
Dust protection ring With assembly no. 95691536
|
|
Unavailable
|
12
|
ATE
|
4
|
Dust protection ring With assembly no. 95651 535
|
|
Unavailable
|
13
|
-
|
4
|
Stop ring Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
13
|
-
|
4
|
Stop ring Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
13
|
ATE
|
4
|
Stop ring Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
13
|
ATE
|
4
|
Stop ring Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
14
|
ATE
|
2
|
Pad pressure spring With kit no. 117412
|
|
Unavailable
|
14
|
-
|
2
|
Pad pressure spring With kit no. 117412
|
|
Unavailable
|
14
|
-
|
2
|
Pad pressure spring With kit no. 117411
|
|
Unavailable
|
14
|
ATE
|
2
|
Pad pressure spring With kit no. 117411
|
|
Unavailable
|
15
|
ATE
|
4
|
Bolt Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
15
|
ATE
|
4
|
Bolt Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
15
|
-
|
4
|
Bolt Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
15
|
-
|
4
|
Bolt Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
16
|
-
|
4
|
Nut Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
16
|
ATE
|
4
|
Nut Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
16
|
ATE
|
4
|
Nut Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
16
|
-
|
4
|
Nut Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
17
|
-
|
2
|
Cylinder body, outside Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
17
|
ATE
|
2
|
Cylinder body, outside Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
17
|
ATE
|
2
|
Cylinder body, outside Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
17
|
-
|
2
|
Cylinder body, outside Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
18
|
-
|
2
|
Cylinder body, inside Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
18
|
-
|
2
|
Cylinder body, inside Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
18
|
ATE
|
2
|
Cylinder body, inside Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
18
|
ATE
|
2
|
Cylinder body, inside Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
19
|
-
|
2
|
Upper spacer Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
19
|
-
|
2
|
Upper spacer Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
19
|
ATE
|
2
|
Upper spacer Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
19
|
ATE
|
2
|
Upper spacer Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
20
|
-
|
2
|
Lower spacer Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
20
|
ATE
|
2
|
Lower spacer Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
20
|
ATE
|
2
|
Lower spacer Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
20
|
-
|
2
|
Lower spacer Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
21
|
ATE
|
8
|
Sealing ring on spacer Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
21
|
ATE
|
8
|
Sealing ring on spacer Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
21
|
-
|
8
|
Sealing ring on spacer Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
21
|
-
|
8
|
Sealing ring on spacer Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
22
|
-
|
2
|
Bleeder Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
22
|
ATE
|
2
|
Bleeder Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
22
|
ATE
|
2
|
Bleeder Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
22
|
-
|
2
|
Bleeder Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
23
|
-
|
2
|
Bleeder cap Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
23
|
ATE
|
2
|
Bleeder cap Not available as spare parts but are supplied with assembly no.s 115768 and 115769
|
|
Unavailable
|
23
|
-
|
2
|
Bleeder cap Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
23
|
ATE
|
2
|
Bleeder cap Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
24
|
-
|
4
|
Pin for pads With kit no. 117412
|
|
Unavailable
|
24
|
ATE
|
4
|
Pin for pads With kit no. 117412
|
|
Unavailable
|
25
|
-
|
4
|
Clamp for pin Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
25
|
ATE
|
4
|
Clamp for pin Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
26
|
-
|
2
|
Bushing Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
26
|
ATE
|
2
|
Bushing Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
27
|
ATE
|
2
|
Spring Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
27
|
-
|
2
|
Spring Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
28
|
ATE
|
2
|
Washer Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
28
|
-
|
2
|
Washer Not available as spare parts but are supplied with assembly nos. 115774 and 115775
|
|
Unavailable
|
* Quantity shown indicates the number of pieces used in the diagram.
