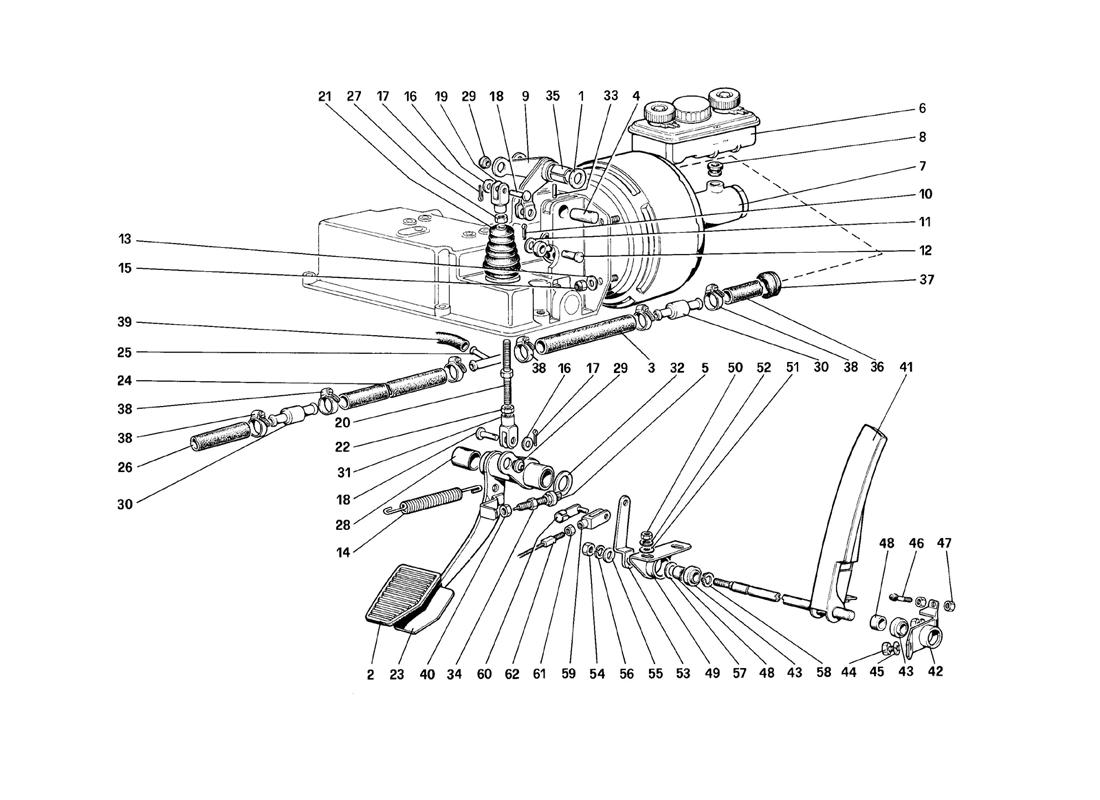

THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSION)

Go to Split View

THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSION)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 112126 *Qty: 2 Rondella di rasamento $0.90
Location: 2 Prev | Next Part: 106950 *Qty: 1 Gommino copripedale $27.54
Location: 3 Prev | Next Part: 111023 *Qty: 1 Tubo dalla valvola al 3 vie $16.50
Location: 4 Prev | Next Part: 112165 *Qty: 1 Perno supporto leva rinvio $12.77
Location: 5 Prev | Next Part: 101663 *Qty: 1 Interruttore luci arresto $50.06
Location: 6 Prev | Next Part: 108802 *Qty: 1 Vaschetta liquido freni Call
Location: 7 Prev | Next Part: 111339 *Qty: 1 Servofreno Call
Location: 8 Prev | Next Part: 106625 *Qty: 2 Anello di tenuta Superseded
Location: 9 Prev | Next Part: 116884 *Qty: 1 Leva servofreno $334.92
Location: 10 Prev | Next Part: 10796401 *Qty: 1 Copiglia Superseded
Location: 11 Prev | Next Part: 10730521 *Qty: 1 Rondella $2.56
Location: 12 Prev | Next Part: 10033411 *Qty: 1 Perno Superseded
Location: 13 Prev | Next Part: 12601371 *Qty: 4 Rondella Superseded
Location: 14 Prev | Next Part: 104895 *Qty: 1 Molla richiamo pedale $8.01
Location: 15 Prev | Next Part: 16104411 *Qty: 4 Dado $0.90
Location: 16 Prev | Next Part: 103167 *Qty: 2 RondelPa $4.31
Location: 17 Prev | Next Part: 10796401 *Qty: 2 Copiglia Superseded
Location: 18 Prev | Next Part: 10033411 *Qty: 2 Perno . Superseded
Location: 19 Prev | Next Part: 104910 *Qty: 1 Forcellino filetto Dx. $9.78
Location: 20 Prev | Next Part: 112178 *Qty: 1 Tirante $27.71
Location: 21 Prev | Next Part: 112157 *Qty: 1 Soffietto $11.82
Location: 22 Prev | Next Part: 103157 *Qty: 1 Dado filetto Sx. Superseded
Location: 23 Prev | Next Part: 113829 *Qty: 1 Pedale freno $278.22
Location: 24 Prev | Next Part: 117253 *Qty: 1 Tubo dal 3 vie alia valvola post. $152.45
Location: 25 Prev | Next Part: 117759 *Qty: 1 Tre vie $30.66
Location: 26 Prev | Next Part: 107982 *Qty: 1 Tubo dalla valvola al collettore Call
Location: 27 Prev | Next Part: 103160 *Qty: 1 Dado filetto Dx. Superseded
Location: 28 Prev | Next Part: 103163 *Qty: 2 Boccola $3.80
Location: 29 Prev | Next Part: 100424 *Qty: 2 Snodo sferico Call
Location: 30 Prev | Next Part: 101538 *Qty: 2 Valvola non ritorno Superseded
Location: 31 Prev | Next Part: 104911 *Qty: 1 Forcellino filetto Sx. $23.95
Location: 32 Prev | Next Part: 106083 *Qty: 1 Rondella di rasamento $0.90
Location: 33 Prev | Next Part: 112166 *Qty: 1 Spirol $0.90
Location: 34 Prev | Next Part: 10791211 *Qty: 1 Dado registro $0.90
Location: 35 Prev | Next Part: 112161 *Qty: 1 Boccola $39.23
Location: 36 Prev | Next Part: 110748 *Qty: 1 Tubo dal servofreno alla valvola non ritorno $52.08
Location: 37 Prev | Next Part: 10396880 *Qty: 1 Passafilo $2.59
Location: 38 Prev | Next Part: 100507 *Qty: 8 Fascetta Call
Location: 39 Prev | Next Part: 111463 *Qty: 1 Presa depressione impianto condizionamento $200.02
Location: 40 Prev | Next Part: 101662 *Qty: 1 Dado paracolpi $3.38
Location: 41 Prev | Next Part: 116522 *Qty: 1 Pedale acceleratore $513.41
Location: 42 Prev | Next Part: 116526 *Qty: 1 Supporto pedale acceleratore $103.94
Location: 43 Prev | Next Part: 107620 *Qty: 2 Snodo $299.24
Location: 44 Prev | Next Part: 16043221 *Qty: 2 Vite $0.90
Location: 45 Prev | Next Part: 106852 *Qty: 2 Rondella Superseded
Location: 46 Prev | Next Part: 116527 *Qty: 1 Vite registro $9.15
Location: 47 Prev | Next Part: 16102311 *Qty: 2 Dado Superseded
Location: 48 Prev | Next Part: 116529 *Qty: 2 Distanziale $8.99
Location: 49 Prev | Next Part: 116528 *Qty: 1 Supporto snodo lato leva rinvio $100.17
Location: 50 Prev | Next Part: 15896211 *Qty: 2 Dado Superseded
Location: 51 Prev | Next Part: 12643701 *Qty: 2 Rondella tranciata Superseded
Location: 52 Prev | Next Part: 106850 *Qty: 2 Rondella elastica Superseded
Location: 53 Prev | Next Part: 115399 *Qty: 1 Leva comando acceleratore $15.12
Location: 54 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 55 Prev | Next Part: 10519601 *Qty: 1 Rondella tranciata Superseded
Location: 56 Prev | Next Part: 106852 *Qty: 1 Rondella elastica Superseded
Location: 57 Prev | Next Part: 105930 *Qty: 1 Idem spessore mm. 0,5 $2.05
Location: 57 Prev | Next Part: 105929 *Qty: 1 Rondella di rasamento spessore mm O,3 $0.90
Location: 57 Prev | Next Part: 105931 *Qty: 1 Idem spessore mm. 0,7 $0.90
Location: 58 Prev | Next Part: 11066075 *Qty: 1 Seeger $0.90
Location: 59 Prev | Next Part: 100655 *Qty: 1 Forcella $130.59
Location: 60 Prev | Next Part: 100656 *Qty: 1 Perno di sicurezza $2.54
Location: 61 Prev | Next Part: 10725911 *Qty: 1 Dado Superseded
Location: 62 Prev | Next Part: 116521 *Qty: 1 Cavo comando acceleratore $85.69

* Quantity shown indicates the number of pieces used in the diagram.
