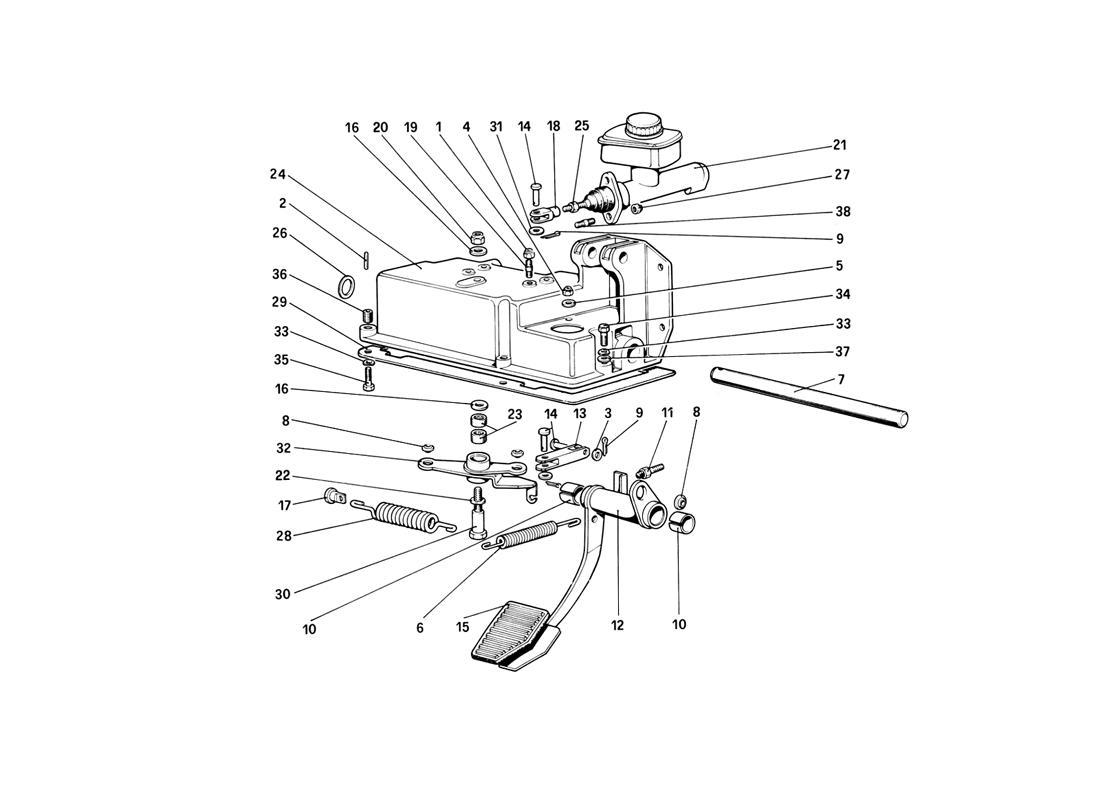

PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD VERSIONS)

Go to Split View

PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD VERSIONS)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 12574121 *Qty: 4 Dado Superseded
Location: 2 Prev | Next Part: 13942870 *Qty: 1 Spina $0.90
Location: 3 Prev | Next Part: 10519601 *Qty: 2 Rondella Superseded
Location: 4 Prev | Next Part: 16100821 *Qty: 1 Dado Unavailable
Location: 5 Prev | Next Part: 12601371 *Qty: 1 Rondella Superseded
Location: 6 Prev | Next Part: 104895 *Qty: 2 Molla richiamo pedale $29.90
Location: 7 Prev | Next Part: 113831 *Qty: 1 Perno supporto pedali $164.96
Location: 8 Prev | Next Part: 109407 *Qty: 3 Shodo sferico $60.93
Location: 9 Prev | Next Part: 10734201 *Qty: 3 Copiglia Unavailable
Location: 10 Prev | Next Part: 103163 *Qty: 2 Boccola $3.80
Location: 11 Prev | Next Part: 114825 *Qty: 1 Puntalino d''arresto $54.54
Location: 12 Prev | Next Part: 113826 *Qty: 1 Pedale frizione $309.66
Location: 13 Prev | Next Part: 112172 *Qty: 1 Forcellino $140.58
Location: 14 Prev | Next Part: 10050810 *Qty: 3 Perno Superseded
Location: 15 Prev | Next Part: 106949 *Qty: 1 Gommino copripedale $30.66
Location: 16 Prev | Next Part: 113500 *Qty: 2 Rondella $14.55
Location: 17 Prev | Next Part: 114828 *Qty: 1 Perno tenuta molla $56.44
Location: 18 Prev | Next Part: 10007871 *Qty: 1 Forcellino $17.31
Location: 19 Prev | Next Part: 11000821 *Qty: 4 THREADED STUD $0.90
Location: 20 Prev | Next Part: 16105121 *Qty: 1 Dado autobloccante Superseded
Location: 21 Prev | Next Part: 116093 *Qty: 1 Pompa comando idraulico frizione Unavailable
Location: 22 Prev | Next Part: 112126 *Qty: 1 Rondella di rasamento $0.90
Location: 23 Prev | Next Part: 115430 *Qty: 2 Astuccio a rullini $17.88
Location: 24 Prev | Next Part: 113830 *Qty: 1 Supporto pedaliera $1,667.52
Location: 25 Prev | Next Part: 16102311 *Qty: 1 Controdado Superseded
Location: 26 Prev | Next Part: 113834 *Qty: 1 Idem spessore mm. 1,2
Di eventuale montaggio
Unavailable
Location: 26 Prev | Next Part: 113835 *Qty: 1 Idem spessore mm. 1,3
Di eventuale montaggio
Unavailable
Location: 26 Prev | Next Part: 113836 *Qty: 1 Idem spessore mm. 1,4
Di eventuale montaggio
Unavailable
Location: 26 Prev | Next Part: 113833 *Qty: 1 Idem spessore mm. 1,1
Di eventuale montaggio
Unavailable
Location: 26 Prev | Next Part: 106083 *Qty: 1 Rondella di rasamento spessore mm. 1
Di eventuale montaggio
$0.90
Location: 27 Prev | Next Part: 16104111 *Qty: 2 Dado Superseded
Location: 28 Prev | Next Part: 114826 *Qty: 1 Molla assistenza $64.15
Location: 29 Prev | Next Part: 112151 *Qty: 1 Guarnizione $36.48
Location: 30 Prev | Next Part: 114830 *Qty: 1 Perno per leva rinvio $15.77
Location: 31 Prev | Next Part: 12642701 *Qty: 1 Rondella $0.90
Location: 32 Prev | Next Part: 116531 *Qty: 1 Leva rinvio $357.58
Location: 33 Prev | Next Part: 106852 *Qty: 5 Rondella Superseded
Location: 34 Prev | Next Part: 16136021 *Qty: 3 Vite $0.95
Location: 35 Prev | Next Part: 16043421 *Qty: 2 Vite Superseded
Location: 36 Prev | Next Part: 105510 *Qty: 2 Heli-coil Superseded
Location: 37 Prev | Next Part: 10519620 *Qty: 3 Rondella Superseded
Location: 38 Prev | Next Part: 13543321 *Qty: 2 THREADED STUD Superseded

* Quantity shown indicates the number of pieces used in the diagram.
