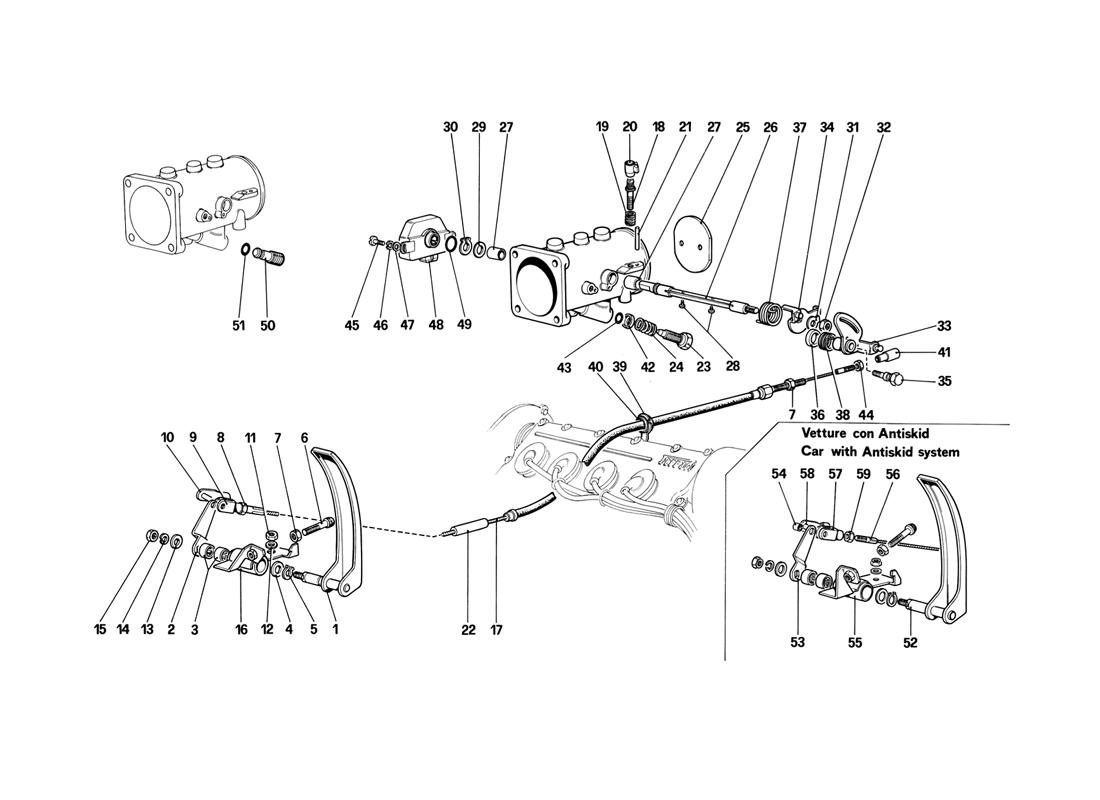

THROTTLE HOUSING AND LINKAGE

Go to Split View

THROTTLE HOUSING AND LINKAGE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 120073 *Qty: 1 Accelerator pedal $94.71
Location: 2 Prev | Next Part: 115399 *Qty: 1 Lever $17.67
Location: 3 Prev | Next Part: 101677 *Qty: 2 Roller cage $2.18
Location: 4 Prev | Next Part: 108576 *Qty: 1 Shim $1.54
Location: 5 Prev | Next Part: 11066076 *Qty: 1 Seeger Superseded
Location: 6 Prev | Next Part: 105232 *Qty: 1 Adjusting screw $5.35
Location: 7 Prev | Next Part: 16102311 *Qty: 2 Nut Superseded
Location: 8 Prev | Next Part: 10725911 *Qty: 1 Locknut Superseded
Location: 9 Prev | Next Part: 100655 *Qty: 1 Fork $152.60
Location: 10 Prev | Next Part: 100656 *Qty: 1 Pin with strap $2.97
Location: 11 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 12 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 13 Prev | Next Part: 10519601 *Qty: 1 Spacer Superseded
Location: 14 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 15 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 16 Prev | Next Part: 120070 *Qty: 1 Support for accelerator pedal $88.62
Location: 17 Prev | Next Part: 118817 *Qty: 1 Control cable for accelerator $143.37
Location: 18 Prev | Next Part: 114366 *Qty: 1 Adjusting screw for throttle control lever $3.38
Location: 19 Prev | Next Part: 107824 *Qty: 1 Spring $1.29
Location: 20 Prev | Next Part: 111182 *Qty: 1 Inviolability cap $12.67
Location: 21 Prev | Next Part: 114367 *Qty: 1 Pin for cap Unavailable
Location: 22 Prev | Next Part: 120027 *Qty: 1 Cable protection
For RHD use no. 120027
Unavailable
Location: 23 Prev | Next Part: 119308 *Qty: 1 Air adjusting screw
Not for US
$3.33
Location: 24 Prev | Next Part: 113571 *Qty: 1 Spring
Not for US
Unavailable
Location: 25 Prev | Next Part: 114851 *Qty: 1 Throttle
Not spare
$35.08
Location: 26 Prev | Next Part: 121802 *Qty: 1 Throttle spindle
Not spare
$388.94
Location: 27 Prev | Next Part: 107443 *Qty: 2 Bush
Not spare
Unavailable
Location: 28 Prev | Next Part: 115361 *Qty: 2 Screw
Not spare
$0.91
Location: 29 Prev | Next Part: 121835 *Qty: 1 Washer Unavailable
Location: 30 Prev | Next Part: 104182 *Qty: 1 Seeger $1.16
Location: 31 Prev | Next Part: 113566 *Qty: 1 Lock washer $2.76
Location: 32 Prev | Next Part: 16102311 *Qty: 1 Nut Superseded
Location: 33 Prev | Next Part: 118296 *Qty: 1 Throttle control lever
After exhaustion use no. 128942
Unavailable
Location: 34 Prev | Next Part: 115590 *Qty: 1 Throttle adjust lever Unavailable
Location: 35 Prev | Next Part: 114863 *Qty: 1 Lever pin
After exhaustion use no. 10903021
$23.83
Location: 36 Prev | Next Part: 114986 *Qty: 1 Spacer washer
Not spare
Unavailable
Location: 37 Prev | Next Part: 115573 *Qty: 1 Spring $28.38
Location: 38 Prev | Next Part: 118294 *Qty: 1 Spring $15.22
Location: 39 Prev | Next Part: 118809 *Qty: 1 Support plate for cable $14.48
Location: 40 Prev | Next Part: 10396580 *Qty: 1 Fair-lead $7.31
Location: 41 Prev | Next Part: 105617 *Qty: 1 Ball joint Superseded
Location: 42 Prev | Next Part: 115204 *Qty: 1 Plate
Not for US
$14.58
Location: 43 Prev | Next Part: 114919 *Qty: 1 Grommet
Not for US
$1.35
Location: 44 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 45 Prev | Next Part: 10444621 *Qty: 2 Screw Unavailable
Location: 46 Prev | Next Part: 106848 *Qty: 2 Washer Unavailable
Location: 47 Prev | Next Part: 10519201 *Qty: 2 Washer Unavailable
Location: 48 Prev | Next Part: 121517 *Qty: 1 Throttle microswitch $220.83
Location: 49 Prev | Next Part: 116736 *Qty: 1 Sealing ring $1.16
Location: 50 Prev | Next Part: 105661 *Qty: 1 Screw
For US and C8
$1.83
Location: 51 Prev | Next Part: 127916 *Qty: 1 Sealing ring
For US and C8
$6.38
Location: 52 Prev | Next Part: 130353 *Qty: 1 Accelerator pedal $102.82
Location: 53 Prev | Next Part: 133751 *Qty: 1 Lever $5.52
Location: 54 Prev | Next Part: 132212 *Qty: 1 Bush $28.94
Location: 55 Prev | Next Part: 115396 *Qty: 1 Support for accelerator pedal $58.74
Location: 56 Prev | Next Part: 133750 *Qty: 1 Control cable for accelerator $104.84
Location: 57 Prev | Next Part: 132290 *Qty: 1 Fork $18.77
Location: 58 Prev | Next Part: 132291 *Qty: 1 Pin with strap $2.97
Location: 59 Prev | Next Part: 10725011 *Qty: 1 Locknut $1.86

* Quantity shown indicates the number of pieces used in the diagram.
