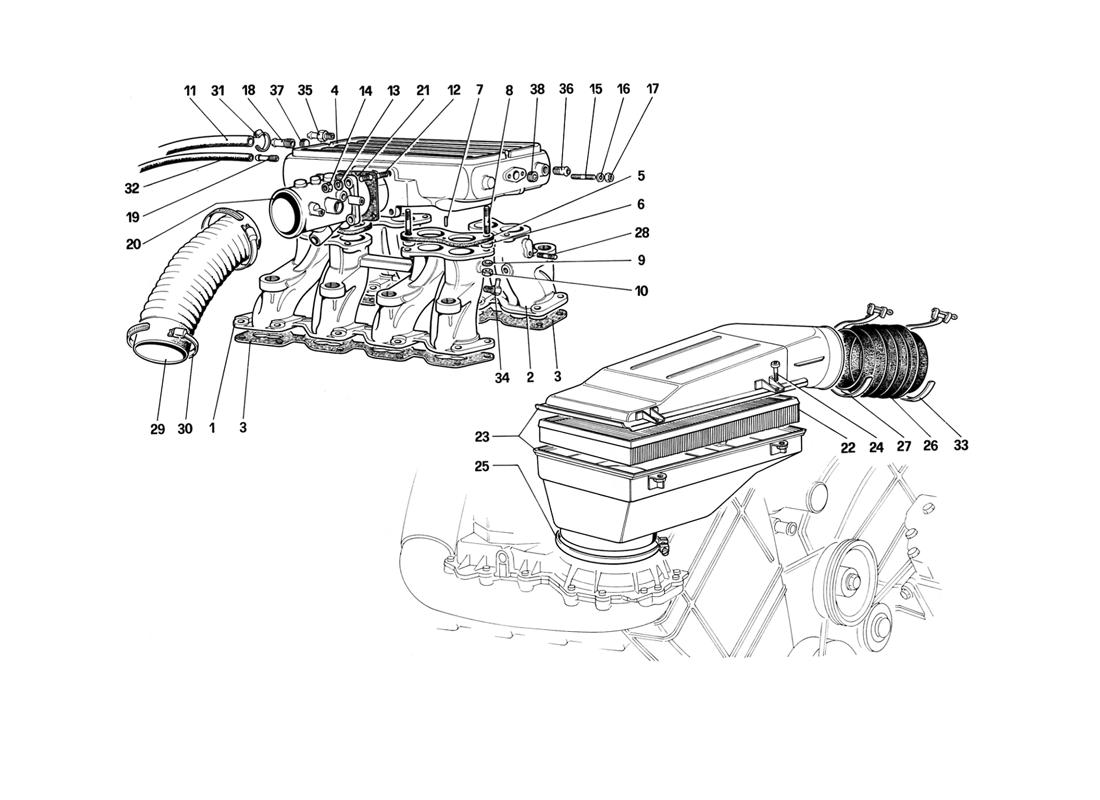

AIR INTAKE AND MANIFOLDS

Go to Split View

AIR INTAKE AND MANIFOLDS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 135032 *Qty: 1 Intake manifold, right complete
For C8
$697.14
Location: 1 Prev | Next Part: 128199 *Qty: 1 Intake manifold, right complete
Not for US and C8
$1,074.07
Location: 1 Prev | Next Part: 128034 *Qty: 1 Intake manifold, right complete
For US
$1,097.16
Location: 2 Prev | Next Part: 135033 *Qty: 1 Intake manifold, left complete
For CS
$1,044.67
Location: 2 Prev | Next Part: 128201 *Qty: 1 Intake manifold, left complete
Not for US and C8
$1,074.07
Location: 2 Prev | Next Part: 128035 *Qty: 1 Intake manifold, left complete
For US
$950.16
Location: 3 Prev | Next Part: 135093 *Qty: 2 Gasket
For C8
$4.83
Location: 3 Prev | Next Part: 117262 *Qty: 2 Gasket
Not for C8
Superseded
Location: 4 Prev | Next Part: 133913 *Qty: 1 (A) Body, air delivery to manifolds complete
Not for US
$1,127.60
Location: 4 Prev | Next Part: 127097 *Qty: 1 (B) Body, air delivery to manifolds complete
Not for US
$552.25
Location: 4 Prev | Next Part: 128023 *Qty: 1 Body for air delivery to manifolds -
With assembly no. 127097
Call
Location: 4 Prev | Next Part: 127544 *Qty: 1 (B) Body, air delivery to manifolds complete
For US
$400.59
Location: 4 Prev | Next Part: 134873 *Qty: 1 Body air delivery to manifolds
With assembly no. 133915
Call
Location: 4 Prev | Next Part: 128023 *Qty: 1 Body air delivery to manifolds
With assembly no. 133913
Call
Location: 4 Prev | Next Part: 128023 *Qty: 1 Body air delivery to manifolds
With assembly no. 133914
Call
Location: 4 Prev | Next Part: 128203 *Qty: 1 Body for air delivery to manifolds
With assembly no. 127544
Call
Location: 4 Prev | Next Part: 133915 *Qty: 1 (A) Body air delivery to manifolds complete
For C8
$1,157.00
Location: 4 Prev | Next Part: 133914 *Qty: 1 (A) Body air delivery to manifolds complete
For US
$644.65
Location: 5 Prev | Next Part: 114983 *Qty: 4 Gasket $21.29
Location: 6 Prev | Next Part: 114984 *Qty: 8 Spacer $9.35
Location: 7 Prev | Next Part: 10331111 *Qty: 4 Centering dowel Call
Location: 8 Prev | Next Part: 13543521 *Qty: 8 Stud Superseded
Location: 9 Prev | Next Part: 11198071 *Qty: 8 Washer Superseded
Location: 10 Prev | Next Part: 16100811 *Qty: 8 Nut Superseded
Location: 11 Prev | Next Part: 107982 *Qty: 1 (B) Rubber hose for servo - brake depression Call
Location: 12 Prev | Next Part: 13541121 *Qty: 4 Stud Superseded
Location: 13 Prev | Next Part: 12601271 *Qty: 4 Washer Superseded
Location: 14 Prev | Next Part: 12574211 *Qty: 4 Nut Superseded
Location: 15 Prev | Next Part: 13540821 *Qty: 2 Stud
For CS
Superseded
Location: 15 Prev | Next Part: 13541621 *Qty: 2 Stud
Not for C8
Superseded
Location: 16 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 17 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 18 Prev | Next Part: 103870 *Qty: 1 (B) Nipple for intake servo - brake depression Call
Location: 19 Prev | Next Part: 113652 *Qty: 1 Nipple for depression on the central ignition station Call
Location: 20 Prev | Next Part: 127899 *Qty: 1 Throttle body
Not spare - With assembly no. 128957
Call
Location: 20 Prev | Next Part: 128957 *Qty: 1 Complete throttle body
For US
$938.64
Location: 20 Prev | Next Part: 128956 *Qty: 1 Complete throttle body $1,190.61
Location: 20 Prev | Next Part: 127163 *Qty: 1 Throttle body
Not spare - With assembly no. 128956
Call
Location: 20 Prev | Next Part: 134980 *Qty: 1 Throttle body
Not spare - With assembly no. 134985
Call
Location: 20 Prev | Next Part: 134985 *Qty: 1 Complete throttle body
For CS
$880.89
Location: 21 Prev | Next Part: 115038 *Qty: 1 Gasket
Not for C8
Superseded
Location: 21 Prev | Next Part: 135098 *Qty: 1 Gasket
For CS
$7.83
Location: 22 Prev | Next Part: 132626 *Qty: 1 Cartridge
For C7 and C8
$68.67
Location: 22 Prev | Next Part: 118006 *Qty: 1 Cartridge
Not for C7 and C8
$34.80
Location: 23 Prev | Next Part: 118313 *Qty: 1 Air inlet
Not for US - C7 and C8
$1,007.92
Location: 23 Prev | Next Part: 121736 *Qty: 1 Air inlet
For US
$787.43
Location: 23 Prev | Next Part: 132875 *Qty: 1 Air inlet
For C7 and C8
$922.87
Location: 24 Prev | Next Part: 14305426 *Qty: 4 Screw $0.90
Location: 25 Prev | Next Part: 114996 *Qty: 1 Clamp $19.68
Location: 26 Prev | Next Part: 114019 *Qty: 1 Sleeve
For C7 and C8 use no. 133152
$126.53
Location: 27 Prev | Next Part: 10300190 *Qty: 1 Clamp
Not for C7 and C8
Call
Location: 28 Prev | Next Part: 11500021 *Qty: 1 Stud Superseded
Location: 29 Prev | Next Part: 118310 *Qty: 1 Pipe from support throttle valve body Call
Location: 30 Prev | Next Part: 12174990 *Qty: 2 Clamp $1.05
Location: 31 Prev | Next Part: 12179590 *Qty: 1 Clamp Superseded
Location: 32 Prev | Next Part: 128305 *Qty: 1 Vacuum hose to digiplex $33.60
Location: 33 Prev | Next Part: 10301890 *Qty: 1 Clamp
For C7 and C8 Q = 2
Call
Location: 34 Prev | Next Part: 128016 *Qty: 8 Union
For US
$11.78
Location: 35 Prev | Next Part: 119465 *Qty: 1 Nipple for A.C.
Not for US
$13.03
Location: 35 Prev | Next Part: 119466 *Qty: 1 Nipple for blow-by and A.C.
Not for US
$21.00
Location: 36 Prev | Next Part: 128208 *Qty: 1 Union
Not for US and SA
$9.89
Location: 37 Prev | Next Part: 10269550 *Qty: 1 (A) Plug $0.90
Location: 38 Prev | Next Part: 10268450 *Qty: 1 (A) Plug
For C8
$8.70

* Quantity shown indicates the number of pieces used in the diagram.
