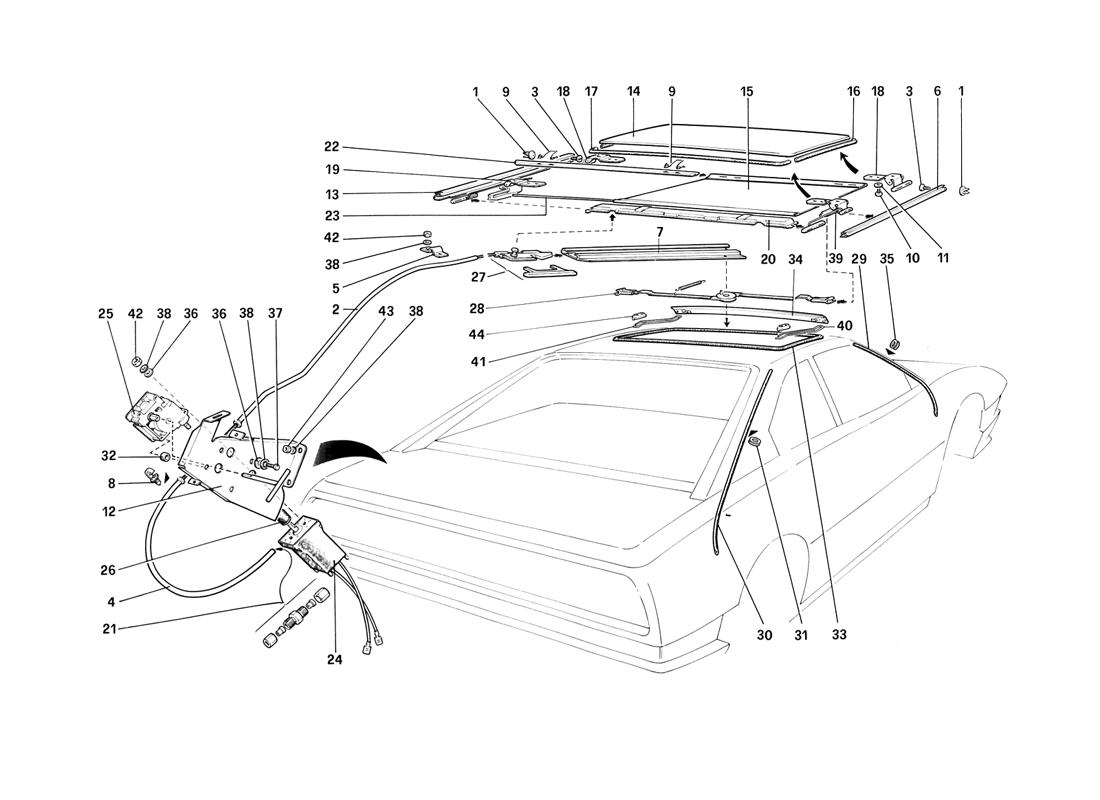

SUN ROOF - 3.2 MONDIAL COUPE

Go to Split View

SUN ROOF - 3.2 MONDIAL COUPE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60911800 *Qty: 2 Nut screw $0.90
Location: 2 Prev | Next Part: 60911700 *Qty: 1 Tube
Until 75038
$147.00
Location: 2 Prev | Next Part: 62447100 *Qty: 1 Tube
From 75039
$131.52
Location: 3 Prev | Next Part: 60911900 *Qty: 2 Screw Call
Location: 4 Prev | Next Part: 60970400 *Qty: 1 Tube
Until 75038
$93.45
Location: 4 Prev | Next Part: 62447000 *Qty: 1 Tube
From 75039
$203.97
Location: 5 Prev | Next Part: 60916100 *Qty: 3 Bracket $8.37
Location: 6 Prev | Next Part: 60964700 *Qty: 1 Rightfrontguide Call
Location: 7 Prev | Next Part: 61310500 *Qty: 1 Guide $29.32
Location: 8 Prev | Next Part: 14573480 *Qty: 3 Clip $0.90
Location: 9 Prev | Next Part: 60963800 *Qty: 2 Stop spring $95.61
Location: 10 Prev | Next Part: 60965100 *Qty: 12 Screw for front and rear plate $0.90
Location: 11 Prev | Next Part: 60965200 *Qty: 12 Spring washer $0.90
Location: 12 Prev | Next Part: 60917300 *Qty: 1 Support for motor
Until 75038
$90.09
Location: 12 Prev | Next Part: 62446600 *Qty: 1 Support for motor
From 75039
$52.78
Location: 13 Prev | Next Part: 60964600 *Qty: 1 Left front guide Call
Location: 14 Prev | Next Part: 60913300 *Qty: 1 Sliding roof, complete $508.68
Location: 15 Prev | Next Part: 61030000 *Qty: 1 Inner covering $778.79
Location: 16 Prev | Next Part: 60963100 *Qty: 1 Front, side gasket Call
Location: 17 Prev | Next Part: 60963200 *Qty: 1 Rear gasket Call
Location: 18 Prev | Next Part: 60963500 *Qty: 2 Front guide plate $516.56
Location: 19 Prev | Next Part: 60963600 *Qty: 1 Rear left guide plate $282.71
Location: 20 Prev | Next Part: 60913600 *Qty: 1 Mobile traverse Call
Location: 21 Prev | Next Part: 60964900 *Qty: 1 Cable terminal $52.08
Location: 22 Prev | Next Part: 60963900 *Qty: 1 Guide $272.46
Location: 23 Prev | Next Part: 60964000 *Qty: 1 Rod $4.73
Location: 24 Prev | Next Part: 62446800 *Qty: 1 Motor
From 75039
$869.32
Location: 24 Prev | Next Part: 60964200 *Qty: 1 Motor
Until 75038
Call
Location: 25 Prev | Next Part: 60964300 *Qty: 1 Reduction gear
Until 75038
Superseded
Location: 26 Prev | Next Part: 60964400 *Qty: 1 Flexible coupling
Until 75038
$43.69
Location: 27 Prev | Next Part: 60970200 *Qty: 1 Cable $885.54
Location: 28 Prev | Next Part: 60976600 *Qty: 1 Leverage $493.42
Location: 29 Prev | Next Part: 60915600 *Qty: 2 Front drain tube $9.78
Location: 30 Prev | Next Part: 60915700 *Qty: 2 Rear drain tube $4.90
Location: 31 Prev | Next Part: 10396680 *Qty: 2 Insulating ring for rear tubes $0.90
Location: 32 Prev | Next Part: 60915800 *Qty: 4 Spacer
Until 75038
$5.45
Location: 33 Prev | Next Part: 60962900 *Qty: 1 Gasket $204.75
Location: 34 Prev | Next Part: 61105200 *Qty: 1 Spoyler Superseded
Location: 35 Prev | Next Part: 10396280 *Qty: 2 Insulating ring for front tubes $0.90
Location: 36 Prev | Next Part: 12638101 *Qty: 6 Washer Superseded
Location: 37 Prev | Next Part: 10978221 *Qty: 4 Screw
Until 75038
$1.45
Location: 38 Prev | Next Part: 10615371 *Qty: 12 Washer $0.90
Location: 39 Prev | Next Part: 60963700 *Qty: 1 Rear right guide plate $282.71
Location: 40 Prev | Next Part: 61105400 *Qty: 1 R.H. spring $38.60
Location: 41 Prev | Next Part: 61105300 *Qty: 1 L.H. spring $28.54
Location: 42 Prev | Next Part: 15896411 *Qty: 8 Nut Superseded
Location: 43 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 44 Prev | Next Part: 61105600 *Qty: 2 Bracket $4.10

* Quantity shown indicates the number of pieces used in the diagram.
