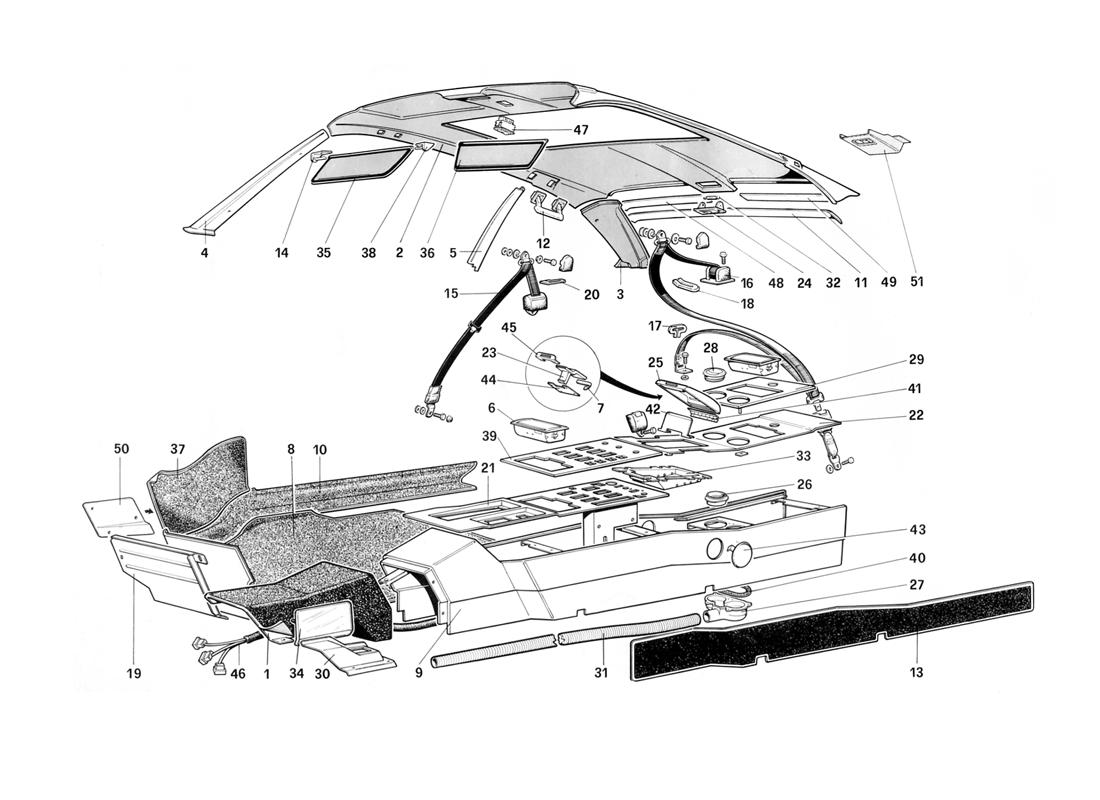

ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE

Go to Split View

ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61123800 *Qty: 1 Front tunnel with moquette - RHD $470.35
Location: 1 Prev | Next Part: 61145100 *Qty: 1 Moquette - RHD Call
Location: 1 Prev | Next Part: 61116200 *Qty: 1 Front tunnel with moquette - LHD $497.67
Location: 1 Prev | Next Part: 61142200 *Qty: 1 Moquette - LHD $152.65
Location: 2 Prev | Next Part: 61266400 *Qty: 1 Covering - TA
Not for US
$521.27
Location: 2 Prev | Next Part: 61168700 *Qty: 1 Covering Call
Location: 2 Prev | Next Part: 62334800 *Qty: 1 Roof with covering - AUS Call
Location: 2 Prev | Next Part: 61168800 *Qty: 1 Roof with covering - RHD
Not for AUS
$1,260.70
Location: 2 Prev | Next Part: 61870800 *Qty: 1 Roof with covering - TA - US $1,147.30
Location: 2 Prev | Next Part: 61871000 *Qty: 1 Covering - TA - US $529.95
Location: 2 Prev | Next Part: 61168500 *Qty: 1 Roof with covering - LHD $1,318.97
Location: 2 Prev | Next Part: 61266200 *Qty: 1 Roof with covering - TA - LHD
Not for US
$1,318.97
Location: 2 Prev | Next Part: 61269000 *Qty: 1 Roof with covering - TA - RHD $1,203.19
Location: 3 Prev | Next Part: 60680000 *Qty: 1 Rear L.H. moulding $320.24
Location: 3 Prev | Next Part: 60679900 *Qty: 1 Rear R.H. moulding $320.24
Location: 4 Prev | Next Part: 60685000 *Qty: 1 L.H. moulding $62.55
Location: 4 Prev | Next Part: 60685300 *Qty: 1 R.H. moulding $62.55
Location: 5 Prev | Next Part: 60685700 *Qty: 1 L.H. center post. $63.64
Location: 5 Prev | Next Part: 60686000 *Qty: 1 R.H. center post. $62.15
Location: 6 Prev | Next Part: 61058900 *Qty: 2 Ash tray $303.00
Location: 7 Prev | Next Part: 61059700 *Qty: 1 Spring $5.53
Location: 8 Prev | Next Part: 61144200 *Qty: 1 Front carpet driver - RHD Call
Location: 8 Prev | Next Part: 61144400 *Qty: 1 Front carpet passenger - RHD Call
Location: 8 Prev | Next Part: 61140500 *Qty: 1 Front carpet driver - LHD Call
Location: 8 Prev | Next Part: 61140700 *Qty: 1 Front carpet passenger - LHD $164.84
Location: 9 Prev | Next Part: 61144700 *Qty: 1 Covering - RHD Call
Location: 9 Prev | Next Part: 61622400 *Qty: 1 Tunnel with covering - RHD Call
Location: 9 Prev | Next Part: 61622200 *Qty: 1 Tunnel with covering - LHD $1,865.68
Location: 9 Prev | Next Part: 61056600 *Qty: 1 Covering - LHD $538.60
Location: 10 Prev | Next Part: 61258000 *Qty: 1 Carpet R.H. framework - LHD $121.16
Location: 10 Prev | Next Part: 61258600 *Qty: 1 Carpet L.H. framework - LHD $143.65
Location: 10 Prev | Next Part: 61259800 *Qty: 1 Carpet L.H. framework - RHD Call
Location: 10 Prev | Next Part: 61259200 *Qty: 1 Carpet R.H. framework - RHD Call
Location: 11 Prev | Next Part: 61092200 *Qty: 3 Rear framework for roof with covering
Not for TA
$150.57
Location: 12 Prev | Next Part: 61119600 *Qty: 3 Blackstrap Call
Location: 12 Prev | Next Part: 60699700 *Qty: 3 Withe strap Call
Location: 13 Prev | Next Part: 61143300 *Qty: 1 R.H. moquette for tunnel - LHD $46.61
Location: 13 Prev | Next Part: 61145500 *Qty: 1 L.H. moquette for tunnel - RHD Call
Location: 13 Prev | Next Part: 61145700 *Qty: 1 R.H. moquette for tunnel - RHD Call
Location: 13 Prev | Next Part: 61143000 *Qty: 1 L.H. moquette for tunnel - LHD $46.61
Location: 14 Prev | Next Part: 61003200 *Qty: 2 R.H. bracket $138.64
Location: 15 Prev | Next Part: 60712900 *Qty: 1 Front safety belts set
Not for US - SA - AUS
Call
Location: 15 Prev | Next Part: 60834900 *Qty: 1 Front safety belts set - US - SA Call
Location: 16 Prev | Next Part: 60713500 *Qty: 1 Rear safety belts set
Not for US - SA - AUS
$281.05
Location: 16 Prev | Next Part: 60835000 *Qty: 1 Rear safety belts set - US - SA $281.60
Location: 17 Prev | Next Part: 60709400 *Qty: 2 Lower frame for rear belts $7.25
Location: 18 Prev | Next Part: 60709800 *Qty: 1 R.H. frame for rear belts $25.83
Location: 18 Prev | Next Part: 60709700 *Qty: 1 L.H. frame for rear belts $25.83
Location: 19 Prev | Next Part: 62339600 *Qty: 1 (A) Passenger footrest - LHD $57.55
Location: 19 Prev | Next Part: 62378500 *Qty: 1 (A) Passenger footrest - RHD $83.79
Location: 19 Prev | Next Part: 61140300 *Qty: 1 (B) Passenger footrest- LHD $65.95
Location: 19 Prev | Next Part: 61141700 *Qty: 1 (B) Passenger footrest - RHD $54.61
Location: 20 Prev | Next Part: 60841100 *Qty: 2 Upper frame for front belts $40.12
Location: 21 Prev | Next Part: 62380700 *Qty: 1 (A) Front plate with covering - RHD $290.85
Location: 21 Prev | Next Part: 62383200 *Qty: 1 (A) Covering - LHD $48.09
Location: 21 Prev | Next Part: 61057500 *Qty: 1 (B) Front plate with covering - LHD $501.86
Location: 21 Prev | Next Part: 62382900 *Qty: 1 (A) Front plate with covering - LHD $272.99
Location: 21 Prev | Next Part: 62381000 *Qty: 1 (A) Covering - RHD $37.82
Location: 21 Prev | Next Part: 61057900 *Qty: 1 (B) Covering $90.30
Location: 21 Prev | Next Part: 61122400 *Qty: 1 (B) Front plate with covering - RHD $284.53
Location: 22 Prev | Next Part: 61029700 *Qty: 1 Rear plate with covering - US - SA $276.13
Location: 22 Prev | Next Part: 61058300 *Qty: 1 Covering $85.46
Location: 22 Prev | Next Part: 61058000 *Qty: 1 Rear plate with covering
Not for US - SA
$204.11
Location: 23 Prev | Next Part: 61059600 *Qty: 1 Knob for lid $3.49
Location: 24 Prev | Next Part: 60326709 *Qty: 1 Lamp $85.05
Location: 25 Prev | Next Part: 61059400 *Qty: 1 Lid with covering $496.10
Location: 25 Prev | Next Part: 61059500 *Qty: 1 Covering $17.95
Location: 26 Prev | Next Part: 61058500 *Qty: 2 Ring nut $4.90
Location: 27 Prev | Next Part: 61058400 *Qty: 1 Air conveyor $20.17
Location: 28 Prev | Next Part: 60656500 *Qty: 2 Air outler Call
Location: 29 Prev | Next Part: 61023000 *Qty: 1 Plate with covering for tunnel $177.45
Location: 30 Prev | Next Part: 61066900 *Qty: 1 Accelerator pedal cover - LHD $53.73
Location: 30 Prev | Next Part: 61112800 *Qty: 1 Accelerator pedal cover - RHD $196.86
Location: 31 Prev | Next Part: 61120400 *Qty: 1 Pipe $33.41
Location: 32 Prev | Next Part: 50100205 *Qty: 1 Bulb Call
Location: 33 Prev | Next Part: 61154100 *Qty: 1 Cassette box - RHD $21.00
Location: 33 Prev | Next Part: 61059000 *Qty: 1 Cassette box - LHD $14.05
Location: 34 Prev | Next Part: 61120800 *Qty: 1 Protection for front tunnel - LHD $11.35
Location: 34 Prev | Next Part: 61124100 *Qty: 1 Protection for front tunnel - RHD $39.22
Location: 35 Prev | Next Part: 61186900 *Qty: 1 R.H. sun visor - AUS Call
Location: 35 Prev | Next Part: 61002300 *Qty: 1 R.H . sun visor - RHD
Not for AUS
$174.83
Location: 35 Prev | Next Part: 61169400 *Qty: 1 R.H. sun visor - LHD
Not for USA - SA
$169.31
Location: 35 Prev | Next Part: 61179900 *Qty: 1 R.H. sun visor - TA - RHD
Not for AUS
$133.73
Location: 35 Prev | Next Part: 61171700 *Qty: 1 R.H. sun visor - TA - LHD $158.30
Location: 36 Prev | Next Part: 61002500 *Qty: 1 L.H. sun visor - LHD $240.19
Location: 36 Prev | Next Part: 61180100 *Qty: 1 L.H. sun visor- TA - RHD
Not for AUS
$137.83
Location: 36 Prev | Next Part: 61004300 *Qty: 1 L.H. sun visor - TA - LHD $128.52
Location: 36 Prev | Next Part: 61169700 *Qty: 1 L.H. sun visor - RHD
Not for AUS
$167.74
Location: 36 Prev | Next Part: 61187000 *Qty: 1 L.H. sun visor - AUS Call
Location: 37 Prev | Next Part: 62381300 *Qty: 1 Carpet for R.H. wheelhouse - LHD $84.84
Location: 37 Prev | Next Part: 62381600 *Qty: 1 Carpet for L.H . wheelhouse - LHD $57.55
Location: 37 Prev | Next Part: 62382400 *Qty: 1 Carpet for L.H. wheelhouse - RHD Call
Location: 37 Prev | Next Part: 62382100 *Qty: 1 Carpet for R.H. wheelhouse - RHD Call
Location: 38 Prev | Next Part: 61003300 *Qty: 2 L.H. bracket $138.64
Location: 39 Prev | Next Part: 62380000 *Qty: 1 Upper front plate - US
From 1-10-87
$278.22
Location: 39 Prev | Next Part: 62380200 *Qty: 1 Upper front plate - RHD
From 1-10-87
$335.97
Location: 39 Prev | Next Part: 61122900 *Qty: 1 Upper front plate - RHD
Until 30-9-87
Call
Location: 39 Prev | Next Part: 62379800 *Qty: 1 Upper front plate - LHD
Not for US - From 1-10-87
$265.64
Location: 39 Prev | Next Part: 61022900 *Qty: 1 Upper front plate - LHD
Until 30-9-87
Call
Location: 40 Prev | Next Part: 61120300 *Qty: 1 Gasket $5.37
Location: 41 Prev | Next Part: 61059200 *Qty: 1 Hinge for cid $24.45
Location: 42 Prev | Next Part: 61059100 *Qty: 4 Shield panel for cassette bow $1.90
Location: 43 Prev | Next Part: 61081800 *Qty: 2 Plug for tunnel $41.60
Location: 44 Prev | Next Part: 61059800 *Qty: 1 Lid for spring $2.54
Location: 45 Prev | Next Part: 61059900 *Qty: 1 Moulding for nob $8.75
Location: 46 Prev | Next Part: 119425 *Qty: 1 (B) Electrical cables fortunnel $316.03
Location: 46 Prev | Next Part: 133740 *Qty: 1 (A) Elecrical cables for tunnel $382.16
Location: 47 Prev | Next Part: 114635 *Qty: 1 Switch for sun roof - TA Call
Location: 48 Prev | Next Part: 61267300 *Qty: 1 R.H. framework with covering - TA
Not for US
$92.47
Location: 48 Prev | Next Part: 61871700 *Qty: 1 R.H. framework with covering - US $114.81
Location: 49 Prev | Next Part: 61267400 *Qty: 1 L.H. framework with covering - TA
Not for US
$115.08
Location: 49 Prev | Next Part: 61871800 *Qty: 1 L.H. framework with covering - US $114.81
Location: 50 Prev | Next Part: 61168300 *Qty: 1 Inox protection - RHD $172.62
Location: 51 Prev | Next Part: 61872000 *Qty: 1 Stop lamp support - US $216.57

* Quantity shown indicates the number of pieces used in the diagram.
