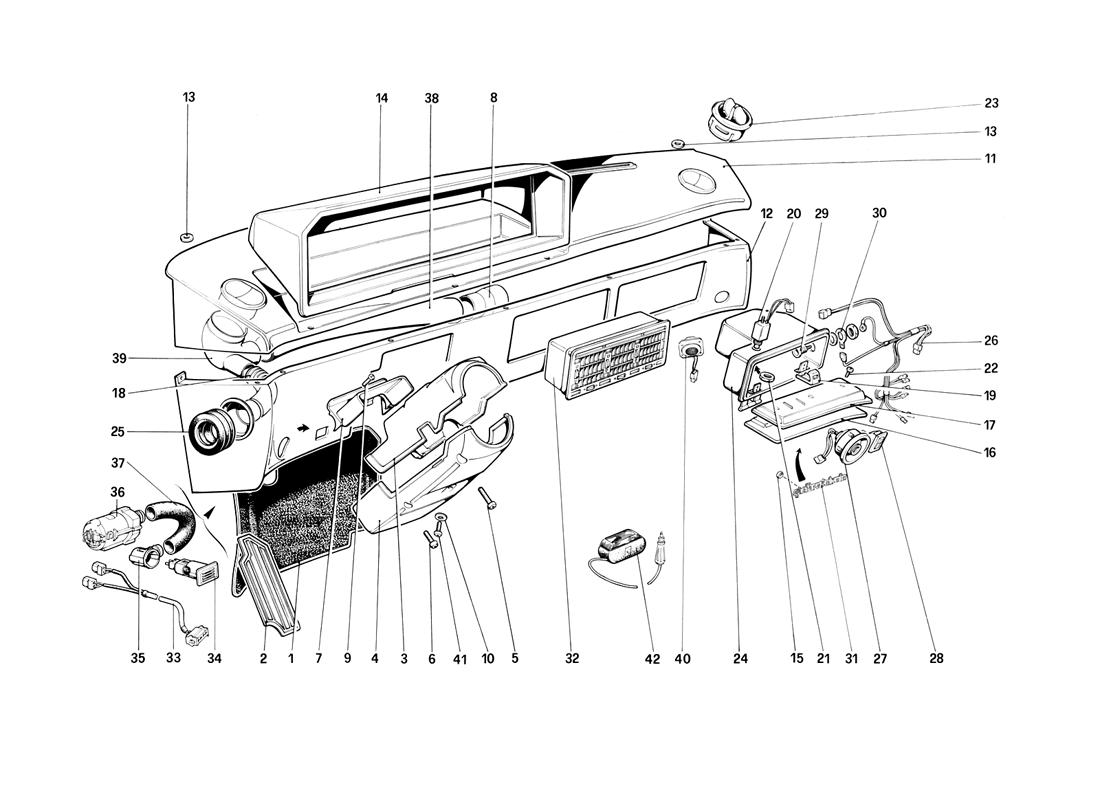

INSTRUMENTS PANEL

Go to Split View

INSTRUMENTS PANEL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60781600 *Qty: 1 Carpet - LHD Call
Location: 1 Prev | Next Part: 62381900 *Qty: 1 Carpet - RHD Call
Location: 2 Prev | Next Part: 60723400 *Qty: 1 Protection - LHD $13.86
Location: 2 Prev | Next Part: 61272900 *Qty: 1 (1) Cover for steering complete $137.11
Location: 2 Prev | Next Part: 60654300 *Qty: 1 (2) Cover for steering complete Superseded
Location: 2 Prev | Next Part: 61158500 *Qty: 1 Protection - RHD $13.65
Location: 3 Prev | Next Part: 61177500 *Qty: 1 (1) Cover Call
Location: 3 Prev | Next Part: 60654400 *Qty: 1 (2) Cover Superseded
Location: 4 Prev | Next Part: 60654500 *Qty: 1 (2) Cover Superseded
Location: 4 Prev | Next Part: 61272800 *Qty: 1 (1) Cover Call
Location: 5 Prev | Next Part: 15687708 *Qty: 2 Screw Call
Location: 6 Prev | Next Part: 15688208 *Qty: 2 Screw $1.00
Location: 7 Prev | Next Part: 60698000 *Qty: 1 Small cover $17.82
Location: 8 Prev | Next Part: 61274400 *Qty: 2 Fannel $20.96
Location: 9 Prev | Next Part: 60698100 *Qty: 1 Screw $1.10
Location: 10 Prev | Next Part: 60702900 *Qty: 1 Washer $1.14
Location: 11 Prev | Next Part: 61777000 *Qty: 1 (1) Dashboard - LHD $2,523.99
Location: 11 Prev | Next Part: 61829500 *Qty: 1 (1) Dashboard - RHD $1,929.73
Location: 11 Prev | Next Part: 62428000 *Qty: 1 (2A) Dashboard - RHD $2,216.35
Location: 11 Prev | Next Part: 61916000 *Qty: 1 (2B) Dashboard - RHD $1,692.46
Location: 11 Prev | Next Part: 62396300 *Qty: 1 (2A) Dashboard - LHD $2,401.14
Location: 11 Prev | Next Part: 61784700 *Qty: 1 (2B) Dashboard - LHD $1,592.72
Location: 12 Prev | Next Part: 62362700 *Qty: 1 (A) Lower dashboard - LHD $1,011.06
Location: 12 Prev | Next Part: 61777100 *Qty: 1 (B) Lower dashboard - LHD
Until 30-4-87
$1,109.76
Location: 12 Prev | Next Part: 61829600 *Qty: 1 Lower dashboard - RHD $1,437.34
Location: 12 Prev | Next Part: 62362700 *Qty: 1 (B) Lower dashboard - LHD
From 1-5-87
$1,011.06
Location: 13 Prev | Next Part: 60657600 *Qty: 1 Rubber washer $1.90
Location: 14 Prev | Next Part: 61829000 *Qty: 1 Seat instruments with covering - RHD $690.86
Location: 14 Prev | Next Part: 61776500 *Qty: 1 Seat instruments with covering - LHD $954.36
Location: 15 Prev | Next Part: 14183376 *Qty: 3 Clip $0.90
Location: 16 Prev | Next Part: 61131700 *Qty: 1 Lid with covering - LHD $113.81
Location: 16 Prev | Next Part: 60656000 *Qty: 1 Covering $56.49
Location: 16 Prev | Next Part: 61130700 *Qty: 1 Lid with covering - RHD $207.25
Location: 17 Prev | Next Part: 60655400 *Qty: 1 Lid inner covering - LHD $28.78
Location: 17 Prev | Next Part: 60734800 *Qty: 1 Lid inner covering - RHD $33.80
Location: 18 Prev | Next Part: 60657300 *Qty: 2 Air pipe on door $20.17
Location: 19 Prev | Next Part: 60675600 *Qty: 1 Lock striker $1.78
Location: 20 Prev | Next Part: 60868600 *Qty: 1 Magnet Call
Location: 21 Prev | Next Part: 60538800 *Qty: 1 Ring nut $8.68
Location: 22 Prev | Next Part: 60675900 *Qty: 4 Screw $0.91
Location: 23 Prev | Next Part: 60656500 *Qty: 2 Side air outlet Call
Location: 24 Prev | Next Part: 60734900 *Qty: 1 (1) Box - RHD $117.39
Location: 24 Prev | Next Part: 61440700 *Qty: 1 (2) Box - RHD $243.59
Location: 24 Prev | Next Part: 61344000 *Qty: 1 (2) Box - LHD $155.19
Location: 24 Prev | Next Part: 60655700 *Qty: 1 (1) Box - LHD $54.18
Location: 25 Prev | Next Part: 60657400 *Qty: 2 Gasket $13.08
Location: 26 Prev | Next Part: 119429 *Qty: 1 Connecting cables $34.23
Location: 27 Prev | Next Part: 60743100 *Qty: 1 Glove box light $54.41
Location: 28 Prev | Next Part: 60743000 *Qty: 1 Switch $41.64
Location: 29 Prev | Next Part: 60701500 *Qty: 1 Socket $35.49
Location: 30 Prev | Next Part: 60701400 *Qty: 1 Negative terminal $5.37
Location: 31 Prev | Next Part: 61132700 *Qty: 1 Quattrovalvole name $34.86
Location: 32 Prev | Next Part: 60657100 *Qty: 1 Central air outlet $540.00
Location: 33 Prev | Next Part: 119430 *Qty: 1 Cables for sensor $12.61
Location: 34 Prev | Next Part: 61079100 *Qty: 1 Sensor Call
Location: 35 Prev | Next Part: 61079200 *Qty: 1 Housing sensor $5.37
Location: 36 Prev | Next Part: 61079300 *Qty: 1 Suction fan
After exhaustion use no. 61983500
Superseded
Location: 37 Prev | Next Part: 61089300 *Qty: 1 Pipe suction fan - sensor $12.13
Location: 38 Prev | Next Part: 61876500 *Qty: 1 (1) Pipe A.C. - R.H. air outlet $129.95
Location: 38 Prev | Next Part: 61876600 *Qty: 1 (1) Pipe A.C. - L.H. air outlet $187.41
Location: 38 Prev | Next Part: 61981600 *Qty: 1 (2) Pipe A.C. - L.H. air outlet - LHD $86.95
Location: 38 Prev | Next Part: 61876500 *Qty: 1 (2) Pipe A.C. - R.H. air outlet - LHD $129.95
Location: 38 Prev | Next Part: 61981600 *Qty: 1 (2) Pipe A.C. - R.H. air outlet - RHD $86.95
Location: 38 Prev | Next Part: 61876500 *Qty: 1 (2) Pipe A.C. - L.H. air outlet - RHD $129.95
Location: 39 Prev | Next Part: 60656800 *Qty: 1 Union for L.H. air outlet - LHD $28.68
Location: 39 Prev | Next Part: 60753900 *Qty: 1 Union for R.H. air outlet - RHD $23.19
Location: 39 Prev | Next Part: 60658700 *Qty: 1 Union for R.H. air outlet - LHD Call
Location: 39 Prev | Next Part: 60754000 *Qty: 1 Union for L.H. air outlet - RHD $23.19
Location: 40 Prev | Next Part: 62462600 *Qty: 2 Loud speaker
After exhaustion use no. 127296
Call
Location: 40 Prev | Next Part: 127296 *Qty: 2 Loud speaker
To exhaustion
Superseded
Location: 41 Prev | Next Part: 60702800 *Qty: 1 Screw $1.13
Location: 42 Prev | Next Part: 40179202 *Qty: 1 Aid lamp Call

* Quantity shown indicates the number of pieces used in the diagram.
