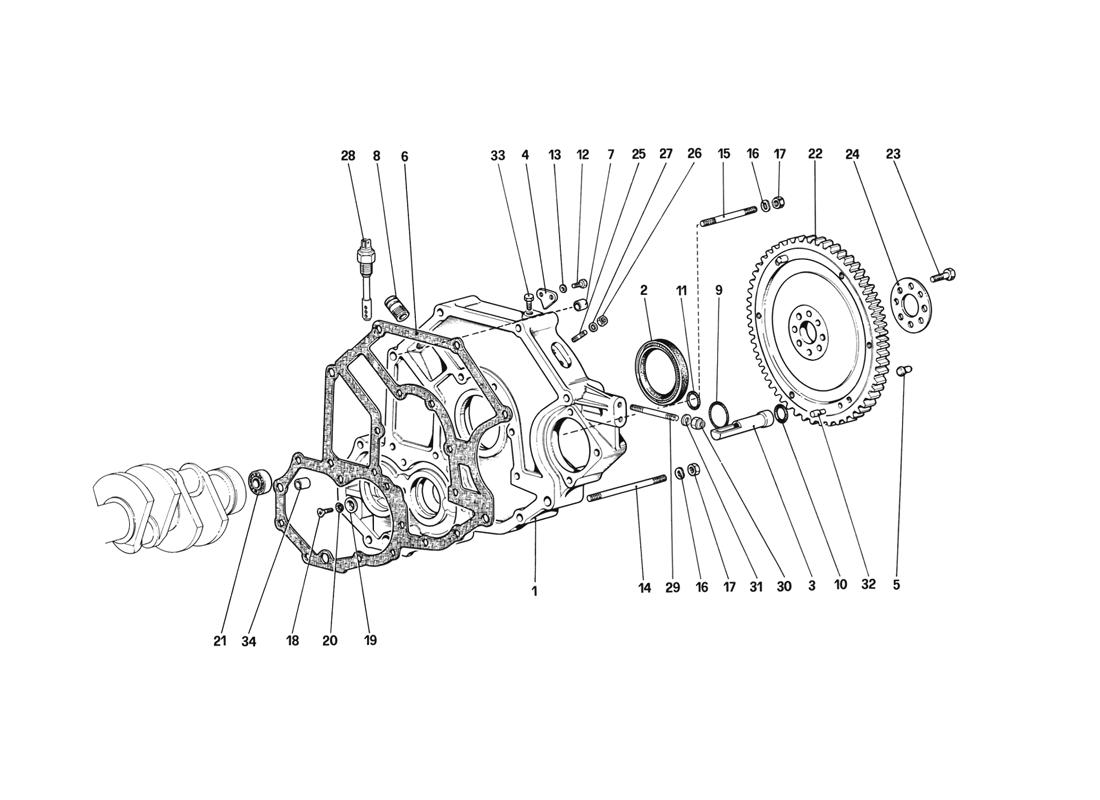

FLYWHEEL AND CLUTCH HOUSING SPACER

FLYWHEEL AND CLUTCH HOUSING SPACER

Location Part # Quantity* Description Price Add To Cart
1 134497 1 (A) Intemediate body complete $2,299.64
1 130526 1 (B) Intermediate body complete $1,957.35
1 127452 1 Intermediate body
With assembly no. 130526
Unavailable
1 133816 1 Intermediate body
With assembly no. 134497
Unavailable
2 106244 1 Sealing ring
As option to no. 40000230
Superseded
3 104035 1 Oil tube $57.00
4 114603 1 Plate, timing refer Unavailable
5 101535 3 Dowel $39.16
6 104202 1 Gasket Superseded
7 102692 1 Dowel $8.53
8 102705 1 Union $152.86
9 114947 1 Sealing ring $3.74
10 103775 1 Sealing ring $2.82
11 104214 1 Sealing ring $4.06
12 10977621 2 Screw Superseded
13 106849 2 Sping washer Superseded
14 104217 1 Long stud Unavailable
15 13952421 1 Short stud $1.56
16 11194071 2 Washer Unavailable
17 16100811 2 Nut Superseded
18 111213 1 Screw Unavailable
19 108039 1 Washer $5.16
20 108041 1 Washer Unavailable
21 103877 1 Bearing $39.95
22 124751 1 Engine flywhell
Not for US and CH
$4,146.38
22 129648 1 Engine flywhell
For C6 and C7
Unavailable
22 127506 1 Engine flywhell
For US and C8
Unavailable
23 103875 8 Bolt Superseded
24 103876 1 Washer $11.98
25 13539021 4 Stud fixing sensor Superseded
26 15896411 4 Nut Superseded
27 106849 4 Washer Superseded
28 116053 1 (B) Sensor for gearbox oil level $48.72
29 13544321 2 Stud Superseded
30 16104111 2 Nut Superseded
31 12601371 2 Washer Superseded
32 114769 2 Dowel $24.79
33 13825821 2 Screw Superseded
34 102692 1 Dowel - From car no. 71799 $8.53

* Quantity shown indicates the number of pieces used in the diagram.
