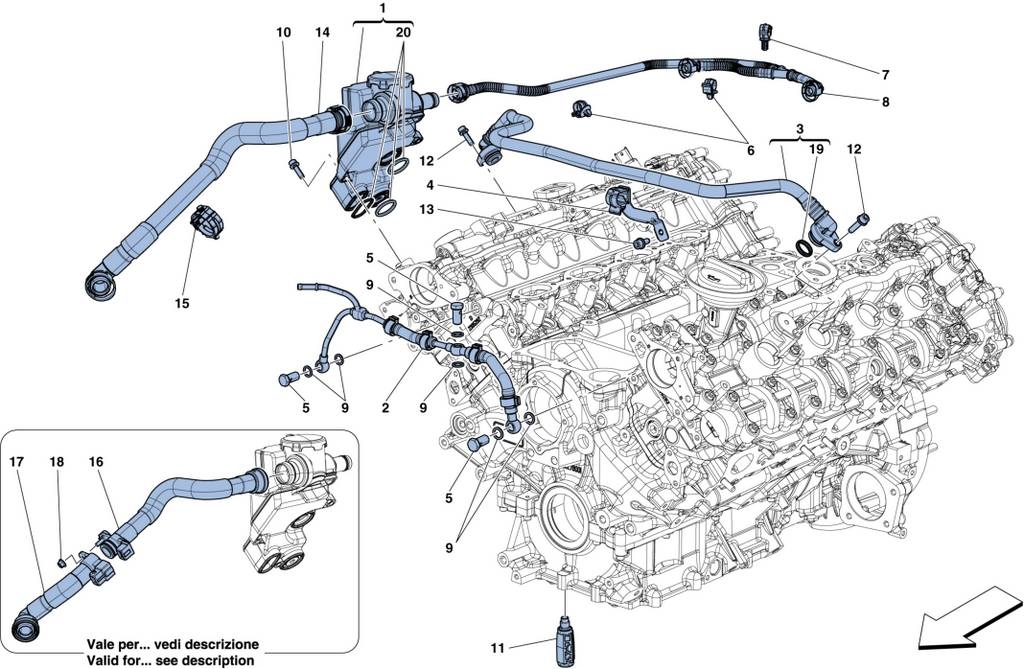

VENTS - BLOW BY SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 299742 1 Oil Vapour Separator $334.40
2 307637 1 Water Vent Pipe $271.82
3 320055 1 Compensator Pipe $132.88
4 309274 1 Bracket $18.69
5 11903811 3 Banjo Bolt Unavailable
6 191904 2 Clip Unavailable
7 291552 1 Clip $1.52
8 312161 1 Pipe From Separator To Intake Manifold $108.65
9 10260960 6 Washer;Also comes with engine gasket set Unavailable
10 231619 3 Screw 6x22 Unavailable
11 285403 1 Valve $34.68
12 231619 2 Screw 6x22 Unavailable
13 282392 1 Screw 6x14 Unavailable
14 337244 1 Blow-By Pipe From Intake Man;Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $101.68
14 337244 1 Blow-By Pipe From Intake Man;Applicable for EU GS- AUS- UK- -Applicable up to engine No. 389923 $101.68
15 82051100 1 Clip $1.16
16 767862 1 Male Blow-By Pipe;Applicable for USA- CDN- USA LIGHT $133.47
16 767862 1 Male Blow-By Pipe;Applicable for EU GS- AUS- UK- -Applicable from engine No. 389924 $133.47
17 767814 1 Female Blow-By Pipe;Applicable for USA- CDN- USA LIGHT $181.76
17 767814 1 Female Blow-By Pipe;Applicable for EU GS- AUS- UK- -Applicable from engine No. 389924 $181.76
18 14040514 1 Nut;Applicable for USA- CDN- USA LIGHT Unavailable
18 14040514 1 Nut;Applicable for EU GS- AUS- UK- -Applicable from engine No. 389924 Unavailable
19 130295 2 Oil Ring $1.38
20 849688 3 Oil Return Line Gasket $38.47

* Quantity shown indicates the number of pieces used in the diagram.
