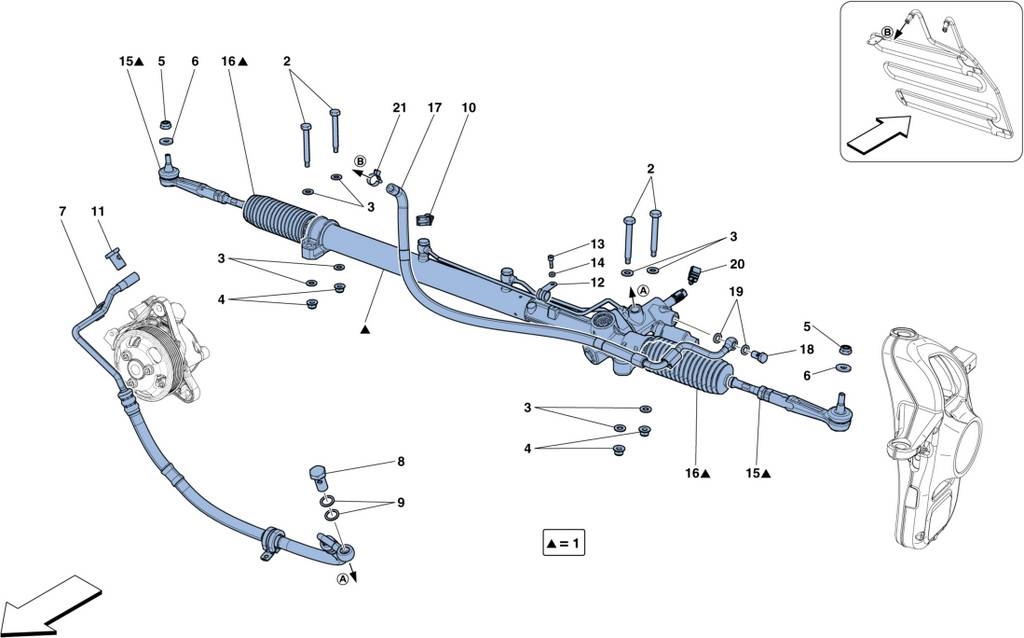

STEERING RACK

STEERING RACK

Location Part # Quantity* Description Price Add To Cart
1 256225 1 Steering Box LHD; Not for Right Hand Drive Vehicles $4,961.40
1 267116 1 Steering Box RHD; Applicable for Right Hand Drive Vehicles $7,201.02
2 277720 4 Screw 10x1.25x80 $5.18
3 14496624 8 Washer D. 10.50-21 x2 $0.90
4 14058621 4 Nut Unavailable
5 102742 2 Nyloc Nut M10x1.25x10 Unavailable
6 12626224 2 Washer Unavailable
7 323250 1 Pipe From Pump To Steering B; Not for Right Hand Drive Vehicles $298.68
7 340311 1 Pipe From Pump To Steering B; Applicable for Right Hand Drive Vehicles $318.51
8 276087 1 Connector Pipe For Union 16x1.5 $21.62
9 10257060 2 Copper Washer $0.90
10 239094 1 Clip $1.48
11 245041 1 Union $55.85
12 305724 1 Bracket; Not for Right Hand Drive Vehicles $5.38
13 14304024 1 Screw; Not for Right Hand Drive Vehicles Superseded
14 11181574 1 Washer; Not for Right Hand Drive Vehicles Unavailable
15 250196 2 Rod End Steering Rack $458.58
16 229521 1 Boot Replacement Kit - Steering Rack $483.51
17 323251 1 Pipe From Steering Box To Co; Not for Right Hand Drive Vehicles $121.75
17 340312 1 Pipe From Steering Box To Co; Applicable for Right Hand Drive Vehicles $110.19
18 277407 1 Union $11.02
19 10280060 2 Copper Washer 1mm $0.90
20 259508 1 Clip 15.8mm-18.5mm Unavailable
21 13127070 1 Collar $2.66

* Quantity shown indicates the number of pieces used in the diagram.
