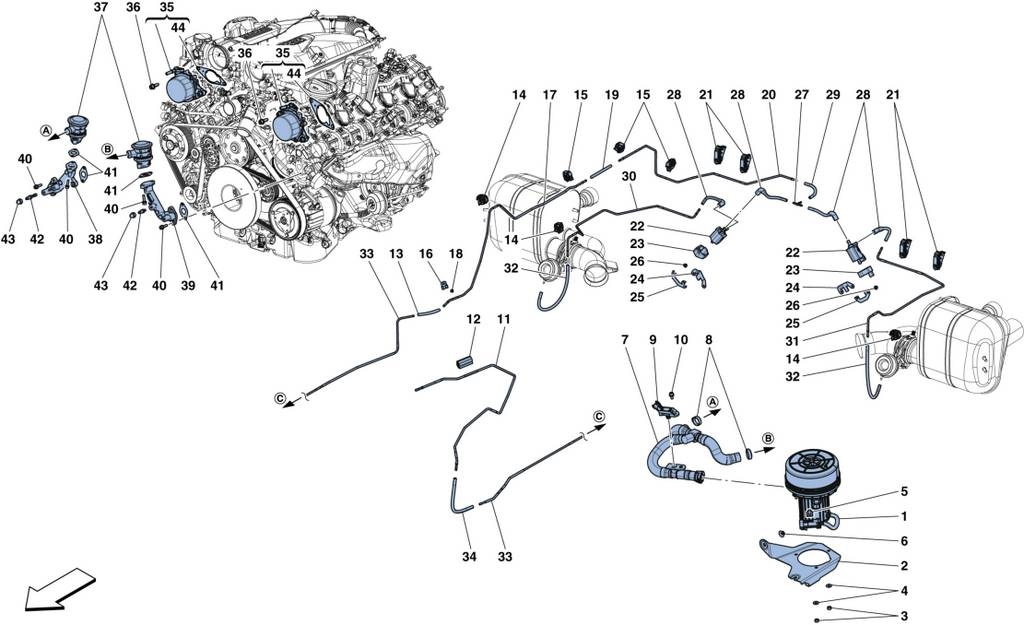

SECONDARY AIR SYSTEM

Go to Split View

SECONDARY AIR SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 247795 1 Secondary Air Pump $771.60
2 767674 1 Secondary Air System Fastener $60.75
3 15896214 3 Nut 6x5 Unavailable
4 11194674 3 Washer Unavailable
5 253769 1 Clip Unavailable
6 14039614 2 Flange Nut Unavailable
7 337243 1 Engine Side Secondary Air $202.09
8 178053 2 Clip Unavailable
9 282849 1 Pressure Sensor Unavailable
10 233600 1 Screw 6x12 Unavailable
11 329508 1 Rigid Bypass Pipe On Firewall;Not for RHD $76.27
11 343307 1 Rigid Bypass Pipe On Firewall;Applicable for RHD- -Applicable until depletion Unavailable
11 807600 1 Rigid Bypass Pipe On Firewall;Applicable for RHD- -Applicable after depletion of 343307 $88.97
12 262737 1 Rubber Retainer $6.33
13 316035 1 Rubber Pipe $6.11
14 234284 3 Clip Unavailable
15 234285 3 Clip Unavailable
16 10440890 1 P Clip Bracket With Sheath Unavailable
17 315760 1 Rigid Pipe $82.62
18 160472 1 Nut $2.86
19 199691 1 Rubber Pipe D 3.5-8x120 Unavailable
20 269072 1 Rigid Pipe $53.39
21 234286 4 Clip $1.93
22 178309 2 Solenoid Valve $103.71
23 317860 2 Solenoid Valve Retainer Block $10.08
24 329823 2 Solenoid Valve Mounting Bracket $32.56
25 329824 2 Solenoid Valve Mounting Bracket $25.52
26 14059111 4 Nut M5 Unavailable
27 257691 1 3 Way Union $1.91
28 294268 4 Rubber Pipe Unavailable
29 141235 1 Rubber Pipe D.3.5-8x90 $10.21
30 269074 1 RH Rigid Pipe $54.01
31 269073 1 LH Rigid Pipe Unavailable
32 304764 2 Rigid Pipe $10.18
33 268394 1 Emission Control System Pipe $90.50
34 159542 1 Rubber Pipe $4.36
35 303259 2 Pressure Reducer $810.13
36 231628 4 Screw 8x25 Unavailable
37 284235 2 Secondary Air System Valve $256.63
38 292403 1 RH Secondary Air System Valve $118.18
39 292404 1 LH Secondary Air System Valve $115.63
40 231619 10 Screw 6x22 Unavailable
41 186781 4 Gasket $5.40
42 210868 2 Threaded Union M6-M8 $16.22
43 150595 2 Domed Nut $1.10
44 343352 2 Gasket $49.95

* Quantity shown indicates the number of pieces used in the diagram.
