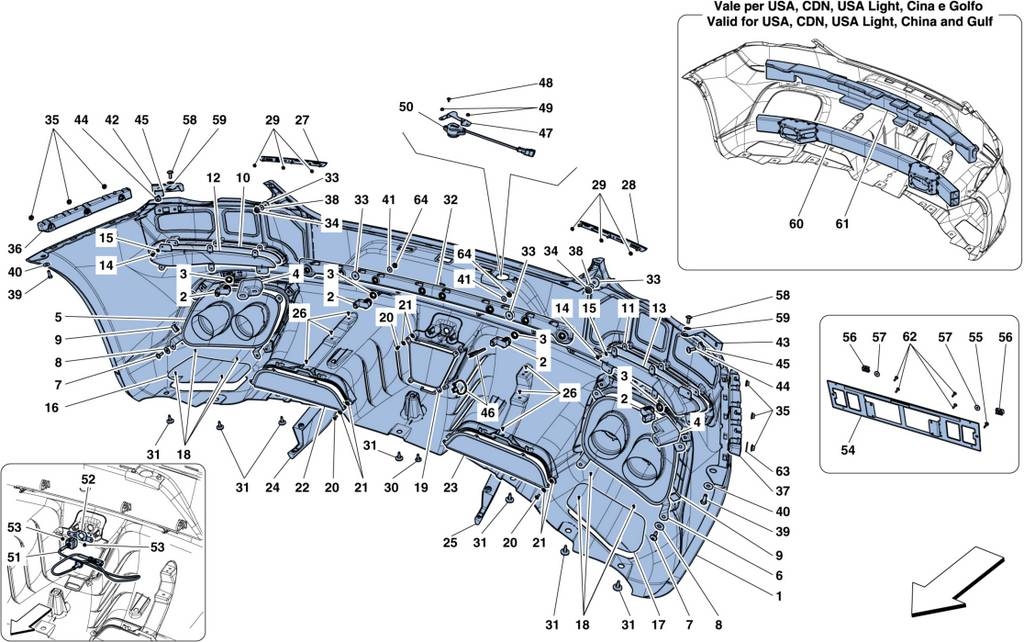

REAR BUMPER

Go to Split View

REAR BUMPER

Location Part # Quantity* Description Price Add To Cart
1 89047210 1 Rear Bumper ** ITEM NOT AVAILABLE **; Sensors ordered separately- -Applicable for Korea and Brazil- -Not for ADAS version- -Not for USA, CDN, USA LIGHT $5,211.39
1 -0 1 Rear Bumper ** ITEM NOT AVAILABLE **; Sensors ordered separately- -Applicable for Korea and Brazil- -Applicable for ADAS version- -Not for surround view version- -Not for USA, CDN, USA LIGHT Unavailable
1 -0 1 Rear Bumper ** ITEM NOT AVAILABLE **; Applicable for ADAS version- -Surround view version- -Sensors ordered separately- -Applicable for Korea and Brazil- -Not for USA, CDN, USA LIGHT Unavailable
1 89294210 1 Rear Bumper ** ITEM NOT AVAILABLE **; Sensors ordered separately- -Not for Korea and Brazil- -Not for ADAS version- -Applicable for USA, CDN, USA LIGHT $5,211.15
1 -0 1 Rear Bumper ** ITEM NOT AVAILABLE **; Sensors ordered separately- -Not for Korea and Brazil- -Applicable for ADAS version- -Not for surround view version- -Applicable for USA, CDN, USA LIGHT Unavailable
1 -0 1 Rear Bumper ** ITEM NOT AVAILABLE **; Applicable for ADAS version- -Surround view version- -Sensors ordered separately- -Not for Korea and Brazil- -Applicable for USA, CDN, USA LIGHT Unavailable
2 295361 4 Parking Sensor $78.74
3 81544800 4 Parking Sensor Ring $10.45
4 87879200 2 Parking Sensor Heat Shield $76.27
5 88168700 1 RH Exhaust Tailpipe Tip $462.21
5 761932 1 RH Exhaust Tailpipe Tip; Version with sports tailpipes $808.09
5 761930 1 RH Exhaust Tailpipe Tip; Version with black sports tailpipes $1,409.91
6 88168600 1 LH Exhaust Tailpipe Tip $462.21
6 761931 1 LH Exhaust Tailpipe Tip; Version with sports tailpipes $808.09
6 761929 1 LH Exhaust Tailpipe Tip; Version with black sports tailpipes $1,409.91
7 82113500 8 Screw Unavailable
8 81078500 8 Washer $1.30
9 80874300 8 Clip $1.32
10 87802400 1 RH Lateral Grill $243.66
11 87802300 1 LH Lateral Grill $243.66
12 87802600 1 RH Lateral Grill Duct $114.40
13 87802500 1 LH Lateral Grill Duct $114.40
14 14643293 12 Rivet $11.06
15 14497778 12 Washer Unavailable
16 87220700 1 RH Heat Vent Grill $154.05
17 87220800 1 LH Heat Vent Grill $154.05
18 14641596 8 Black Pop Rivet 3.2 X 11.4 Unavailable
19 87803200 1 Centre Grill $270.01
20 14643293 12 Rivet $11.06
21 14497778 24 Washer Unavailable
22 87803400 1 Lateral Grill On RH Diffuser $256.75
23 87803300 1 Lateral Grill On LH Diffuser $256.75
24 87809400 1 RH Fin $419.43
25 87809100 1 LH Fin $419.43
26 65752800 8 Screw 4x10 $2.66
27 84806800 1 RH Reflector $17.01
28 84806900 1 LH Reflector $17.01
29 84784600 8 Washer For Pin Unavailable
30 80874900 3 Screw 6x22 Unavailable
31 83442900 7 Screw 6x22 Unavailable
32 87638400 1 Centre Mount For Rear Bumper $40.05
33 65841100 4 Black Foam Washer - Self Adhesive $1.34
34 14039614 2 Flange Nut Unavailable
35 13046014 6 Nut Unavailable
36 86864700 1 RH Rear Lateral Bumper Mount $19.07
37 86864600 1 LH Rear Lateral Bumper Mount $19.07
38 84029200 2 Seal; No longer supplied Unavailable
39 10902387 2 Screw $1.02
40 12643778 2 Washer Unavailable
41 13577701 8 Washer; Not for CINA, GOLFO, USA LIGHT Unavailable
42 87398400 1 RH Rear Bumper Bracket Under $101.68
43 87398600 1 LH Rear Bumper Bracket Under $101.68
44 82113500 4 Screw Unavailable
45 80874300 4 Clip $1.32
46 69850100 2 Clip $1.10
47 87904400 1 Battery Conditioner Bracket $63.55
48 309629 1 Screw 4x8 $3.02
49 14039414 2 Nut $0.90
50 314630 1 Battery Conditioner Socket $414.69
51 319478 1 Rear Parking Camera; Not for ADAS version- -Applicable up to Ass. No. 157913 $1,525.20
51 836146 1 Rear Parking Camera; Applicable for ADAS version- -Applicable from Ass. No. 157914 $1,525.20
51 326604 1 Rear Parking Camera; Applicable for front and rear digital cameras- -Not for ADAS version $1,525.20
51 -0 1 SURROUND CAMERA; Surround view version- -Applicable for ADAS version- -Wiring harness not included - visible in tab.137, ref. 852873 Unavailable
52 87789200 1 Parking Camera Mounting Bracket; Not for ADAS version- -Not for surround view version- -Applicable up to Ass. No. 157913 $114.26
52 839855 1 Parking Camera Mounting Bracket; Not for surround view version- -Applicable from Ass. No. 157914 Unavailable
52 -0 1 PARKING CAMERA MOUNTING BRACKET; Applicable for ADAS version- -Surround view version Unavailable
53 14039414 2 Nut $0.90
54 82283100 1 Rear License Plate Mounting; Applicable for UAE- -Applicable for Korea- -Applicable for EU GS, UK $67.46
54 82283200 1 Rear License Plate Mounting; Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT $164.65
54 82287200 1 Rear License Plate Mounting; Applicable for AUS, CINA $246.97
54 82679900 1 Number Plate Holder; Not for UAE- -Applicable for GOLFO $190.96
54 82289300 1 Rear License Plate Mounting; Applicable for J $246.97
55 14415690 4 Rivet; Applicable for USA, CDN, GOLFO $1.14
55 14415690 4 Rivet; Applicable for UAE- -Applicable for Korea- -Applicable for EU GS, UK $1.14
56 62766300 2 Spire Clip Unavailable
57 12604274 2 Washer $0.90
58 85833700 2 Screw 5x14 Unavailable
59 61148700 2 Washer Unavailable
60 84071400 1 Crash Box Cross Member; Applicable for CINA, USA, CDN, GOLFO, USA LIGHT $877.00
61 89050000 1 Rear Bumper Impact Absorber; Applicable for CINA, USA, CDN, GOLFO, USA LIGHT $216.08
62 63343400 4 Screw 4x15; Not applicable for Korea $3.17
63 65841100 2 Black Foam Washer - Self Adhesive $1.34
64 14039511 8 Nut Unavailable
65 14417921 2 Screw; Applicable for ADAS version- -Surround view version $2.74

* Quantity shown indicates the number of pieces used in the diagram.
