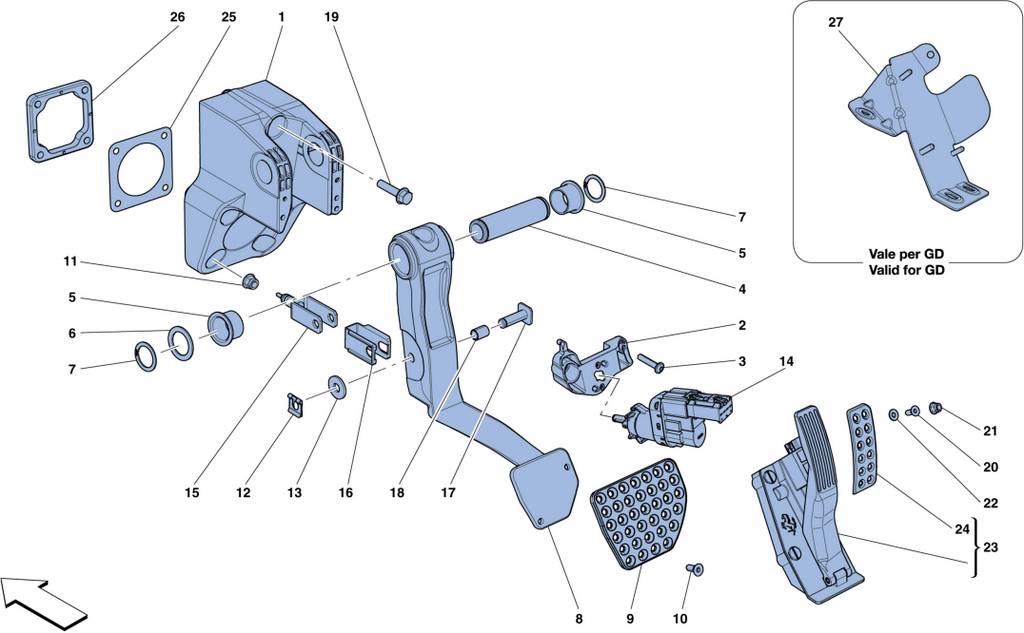

PEDAL BOARD ASSEMBLY

Go to Split View

PEDAL BOARD ASSEMBLY

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 261612 *Qty: 1 Pedal Board Mounting Unavailable
Location: 2 Prev | Next Part: 317720 *Qty: 1 F1 Switch Bracket $62.55
Location: 3 Prev | Next Part: 240931 *Qty: 2 Screw $5.27
Location: 4 Prev | Next Part: 240930 *Qty: 1 Pin $74.77
Location: 5 Prev | Next Part: 240771 *Qty: 2 Gasket Superseded
Location: 6 Prev | Next Part: 240929 *Qty: 1 Rubber Pivot Washer $11.43
Location: 7 Prev | Next Part: 12700076 *Qty: 2 Seeger Ring $11.43
Location: 8 Prev | Next Part: 261832 *Qty: 1 Brake Pedal LHD;Not for RHD Vehicles Unavailable
Location: 8 Prev | Next Part: 261846 *Qty: 1 Brake Pedal RHD;Applicable for RHD Vehicles Unavailable
Location: 9 Prev | Next Part: 240987 *Qty: 1 Drilled Plate $237.31
Location: 10 Prev | Next Part: 14441324 *Qty: 2 Countersunk Allen Screw 6x1.00x11mm Unavailable
Location: 11 Prev | Next Part: 12578211 *Qty: 4 Nut Unavailable
Location: 12 Prev | Next Part: 11064176 *Qty: 1 Safety Clip $3.15
Location: 13 Prev | Next Part: 245181 *Qty: 1 Rubber Washer $8.78
Location: 14 Prev | Next Part: 318205 *Qty: 1 Pushbutton Switch $24.17
Location: 15 Prev | Next Part: 245178 *Qty: 1 Brake Servo Linkage Yoke $68.54
Location: 16 Prev | Next Part: 245179 *Qty: 1 Cage $21.98
Location: 17 Prev | Next Part: 245180 *Qty: 1 Pin $72.64
Location: 18 Prev | Next Part: 260639 *Qty: 1 Bushing $15.24
Location: 19 Prev | Next Part: 16287421 *Qty: 1 Bolt Unavailable
Location: 20 Prev | Next Part: 69855300 *Qty: 3 Press-Fit Button Unavailable
Location: 21 Prev | Next Part: 12575421 *Qty: 3 Nyloc Nut Superseded
Location: 22 Prev | Next Part: 12646624 *Qty: 3 Washer 6.15-15x1.5 Unavailable
Location: 23 Prev | Next Part: 243117 *Qty: 1 Floor Hinged Accelerator Pedal Complete $272.80
Location: 24 Prev | Next Part: 243120 *Qty: 1 Accelerator Pedal Complete $254.24
Location: 25 Prev | Next Part: 190378 *Qty: 1 Gasket $1.07
Location: 26 Prev | Next Part: 196080 *Qty: 1 Spacer $34.67
Location: 27 Prev | Next Part: 82467100 *Qty: 1 Accelerator Pedal Bracket RHD;Applicable for RHD Vehicles $29.80

* Quantity shown indicates the number of pieces used in the diagram.
