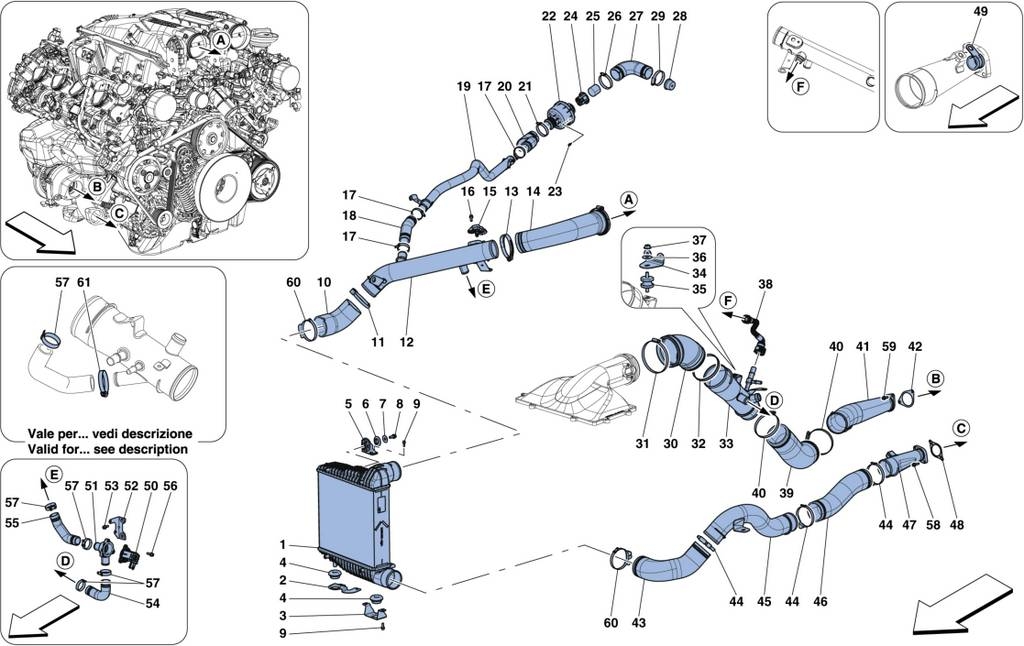

INTERCOOLER

Go to Split View

INTERCOOLER

Location Part # Quantity* Description Price Add To Cart
1 340704 1 RH Intercooler $735.53
1 340705 1 LH Intercooler $735.53
2 332737 1 RH Outer Intercooler Mounting $17.17
2 332738 1 LH Outer Intercooler Mounting $17.17
3 332735 2 Inner Lower Intercooler Mounting $17.17
4 290935 4 Radiator Mounting Bush $7.76
5 338490 2 Compl. Upper Intercooler Bracket $49.56
6 338492 2 Spacer $5.83
7 66121400 2 Spacer $13.48
8 248334 2 Screw 6x16 $0.90
9 231617 12 Screw 6x18 Unavailable
10 342917 2 HOSE FROM INTERCOOLER TO THROTTLE BODY $101.55
11 297484 2 Collar $7.41
12 332789 1 Pipe From Intercooler To RH $721.93
12 332790 1 Pipe From Intercooler To LH $721.93
13 311609 2 Collar $3.82
14 325998 1 Compl. RH Hose Union $540.19
14 335414 1 Compl. LH Hose Union $540.19
15 272880 2 Pressure and Temperature Sensor $39.14
16 282393 2 Screw 6x16 Unavailable
17 262113 6 Collar $2.07
18 330011 2 Intercooler Pipe Hose Union $57.56
19 330125 1 RH Rigid Pipe $185.32
19 330126 1 LH Rigid Pipe $182.78
20 330010 2 Pipe From Disconnector To Re $74.73
21 262116 2 Collar $3.46
22 310096 2 Sound Generator $232.17
23 314100 4 Rivet Unavailable
24 310602 2 Foam Mount $1.71
25 313318 2 Foam $8.90
26 296345 2 Collar Unavailable
27 330006 1 RH Pipe From Resonator To Fi $64.19
27 330008 1 LH Pipe From Resonator To Fi $64.19
28 333404 2 Adapter On Resonator Pipe $14.24
29 296782 2 Hose Clamp 32-50mm $11.61
30 333840 2 Air Flow Meter Hose Union $61.63
31 323688 2 Ring Clamp Unavailable
32 13001190 2 Clamp 80-100mm $1.44
33 339143 1 RH Pipe From Air Flow Meter Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $705.80
33 339143 1 RH Pipe From Air Flow Meter Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $705.80
33 785850 1 RH Pipe From Air Flow Meter Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $1,169.58
33 785850 1 RH Pipe From Air Flow Meter Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $1,169.58
33 339145 1 LH Pipe From Air Flow Meter Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $599.02
33 339145 1 LH Pipe From Air Flow Meter Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $599.02
33 785848 1 LH Pipe From Air Flow Meter Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $1,042.50
33 785848 1 LH Pipe From Air Flow Meter Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $1,042.50
34 339121 2 Rigid Vacuum Pipe Mounting B $19.07
35 195373 2 Pad $16.63
36 12647727 2 Washer 6X21 Unavailable
37 13046112 2 Nut Unavailable
38 329766 1 Connector Pipe On RH Venturi Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $109.31
38 329766 1 Connector Pipe On RH Venturi Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $109.31
38 769265 1 Connector Pipe On RH Venturi Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $118.20
38 769265 1 Connector Pipe On RH Venturi Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $118.20
38 329765 1 Connector Pipe On LH Venturi Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $109.31
38 329765 1 Connector Pipe On LH Venturi Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $109.31
38 769266 1 Connector Pipe On LH Venturi Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $118.20
38 769266 1 Connector Pipe On LH Venturi Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $118.20
39 322870 1 RH Turbocharger Disconnector $165.23
39 322871 1 LH Turbocharger Disconnector $180.49
40 296786 4 Hose Clamp 70 to 90mm $15.87
41 340763 1 RH Turbocharger Disconnector Evaporative Emissions Control; Applicable after depletion of 340026 $459.35
41 340762 1 LH Turbocharger Disconnector Evaporative Emissions Control; Applicable after depletion of 340025 $459.35
42 330933 2 Compressor Intake Gasket $20.77
43 332786 1 RH Intercooler Disconnector $268.82
43 332788 1 LH Intercooler Disconnector $268.82
44 297484 6 Collar $7.41
45 339089 1 RH Pipe From Turbocharger To $319.65
45 339090 1 LH Pipe From Turbocharger To $319.65
46 319912 1 RH Hose From Turbocharger To $256.24
46 319913 1 LH Hose From Turbocharger To $256.24
47 319903 1 RH Pipe From Turbocharger To $293.61
47 319904 1 LH Pipe From Turbocharger To $293.61
48 308862 2 Compressor Outlet Gasket $18.43
49 10450690 1 P Clip Bracket With Sheath Unavailable
50 315495 2 Dump-Valve $191.33
51 317738 2 Dump Valve Base Unavailable
52 322857 1 RH Dump Valve Bracket Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $16.25
52 322857 1 RH Dump Valve Bracket Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $16.25
52 762441 1 RH Dump Valve Bracket Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $16.25
52 762441 1 RH Dump Valve Bracket Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $16.25
52 322858 1 LH Dump Valve Bracket Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $16.25
52 322858 1 LH Dump Valve Bracket Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $16.25
52 762442 1 LH Dump Valve Bracket Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $16.25
52 762442 1 LH Dump Valve Bracket Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $16.25
53 282394 4 Screw $0.90
54 334790 2 Low Pressure Dump Valve Hose Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $41.31
54 334790 2 Low Pressure Dump Valve Hose Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $41.31
54 787898 1 RH Low Pressure Dump Valve Hose Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $40.29
54 787898 1 RH Low Pressure Dump Valve Hose Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $40.29
54 787899 1 LH Low Pressure Dump Valve Hose Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $42.84
54 787899 1 LH Low Pressure Dump Valve Hose Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $42.84
55 334788 1 RH High Pressure Dump Valve Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $33.30
55 334788 1 RH High Pressure Dump Valve Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $33.30

* Quantity shown indicates the number of pieces used in the diagram.
