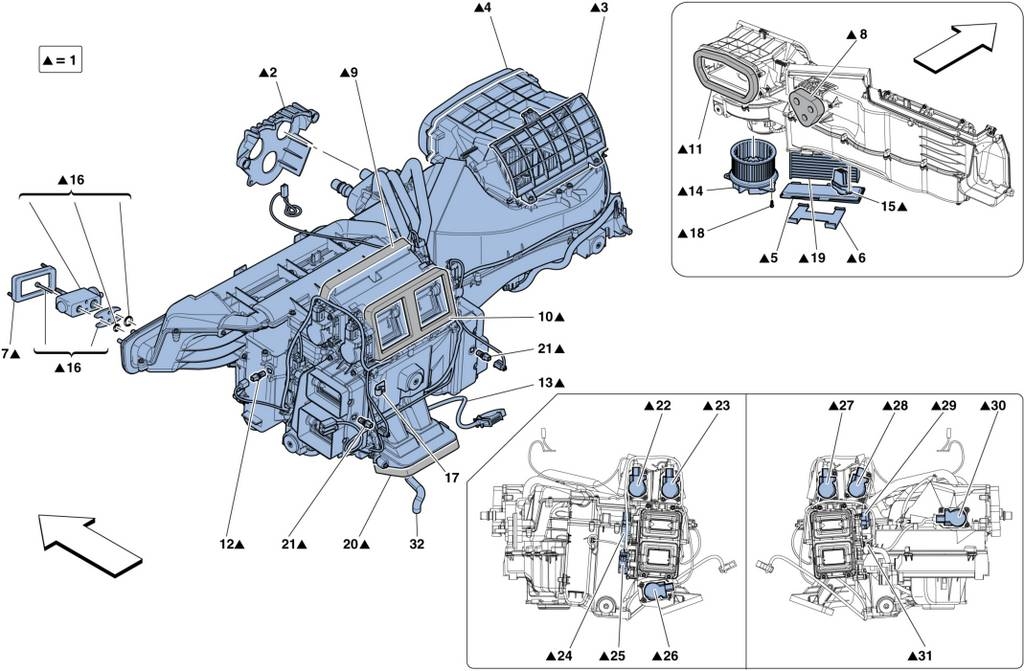

EVAPORATOR UNIT

Location Part # Quantity* Description Price Add To Cart
1 88330800 1 Compl. Ac Unit;Not for Right Hand Drive Vehicles $3,957.04
1 88330900 1 Compl. Ac Unit;Applicable for Right Hand Drive Vehicles $4,232.46
2 82045500 1 Pipes Retainer $91.45
3 82045700 1 Grill $163.50
4 82045800 1 Flange $162.05
5 68390600 1 Pollen Filter Cover Unavailable
6 68390700 1 Pollen Filter Clip Unavailable
7 82046200 1 Gasket $265.20
8 82046400 1 Water Pipe Sink $136.15
9 82046600 1 Sink For Defrost Ducting $187.98
10 82046800 1 Front Sink $241.55
11 82046900 1 Inlet Sink $200.93
12 83749200 1 Evaporator Sensor $215.77
13 88923400 1 Ac Wiring Harness;Not for Right Hand Drive Vehicles $510.96
13 88923500 1 Ac Wiring Harness;Applicable for Right Hand Drive Vehicles $494.42
14 82048800 1 Fan LHD $1,201.74
15 82049000 1 Lpm2 $420.70
16 87390400 1 TXV Service Kit $603.90
17 266000 1 Clip Unavailable
18 68391900 3 Screw $3.71
19 82035700 1 Pollen Filter Complete $116.91
20 84025100 1 Rear Duct Seal $266.87
21 68390100 2 Air Sensor $16.06
22 82047900 1 Actuator $227.34
23 82047700 1 Actuator $243.58
24 82048100 1 Actuator $227.34
25 82048200 1 Actuator $227.34
26 83941300 1 Rear HVAC Actuator $345.08
27 82047600 1 RH Lin Bus Fan Actuator $227.34
28 82047500 1 Actuator $227.34
29 82047400 1 RH Lin Bus Lateral Actuator $227.34
30 82047200 1 Actuator $199.43
31 82047300 1 Actuator $227.34
32 82386900 1 Pipe $30.89

* Quantity shown indicates the number of pieces used in the diagram.
