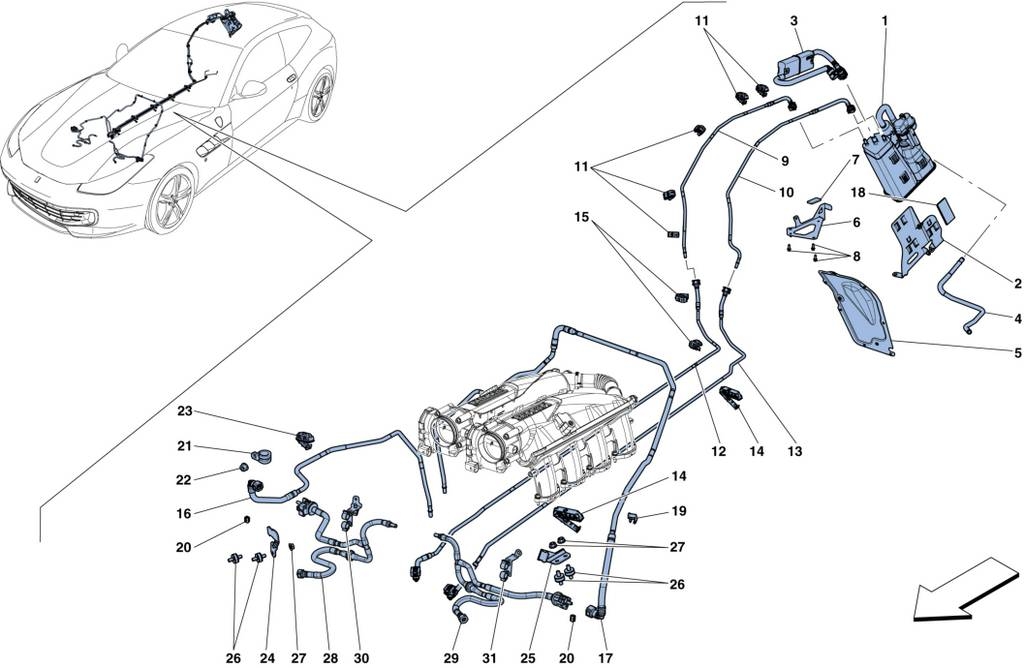

EVAPORATIVE EMISSIONS CONTROL

EVAPORATIVE EMISSIONS CONTROL

Location Part # Quantity* Description Price Add To Cart
1 312809 1 Vapor Filter $662.59
2 282521 1 Canister Bracket Complete $80.20
3 266580 1 Vapor Separator Kit $202.51
4 274347 1 OBD Air Filter Inlet Pipe $43.47
5 88423100 1 Canister Protection Cover $102.96
6 321152 1 Staffa Separatore Vapori C $53.39
7 217156 1 Rubber Shim Unavailable
8 11568027 6 Screw 6x18 $1.87
9 292199 1 RH Rear Flush Pipe $85.81
10 292200 1 LH Rear Flush Pipe $85.81
11 244277 5 Clip Unavailable
12 292198 1 RH Underbody Flush Pipe $102.58
13 292197 1 LH Underbody Flush Pipe $102.58
14 241118 5 Clip;5 compartments $1.62
15 244277 2 Clip Unavailable
15 234285 1 Clip Unavailable
16 292201 1 RH Flush Pipe $89.48
17 321099 1 LH Flush Pipe $97.87
18 255515 1 Zagato Seal $1.93
19 206536 1 Clip D.14 Unavailable
20 254427 2 Clip Unavailable
21 10441290 1 P Clip Bracket With Sheath 28mm D.10 Unavailable
22 13046012 1 Nut Unavailable
23 244277 2 Clip Unavailable
24 275616 1 RH Flush Valve Bracket $12.70
25 275615 1 LH Flush Valve Bracket $12.70
26 225408 4 Cylindrical Bushing $8.06
27 14059214 4 Nut M6 Unavailable
28 342872 1 RH Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $278.34
28 342872 1 RH Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $278.34
28 769260 1 RH Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $299.96
28 769260 1 RH Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $299.96
29 342873 1 LH Evaporative Emissions Control; Not for EU GS- AUS- USA- CDN- UK- USA LIGHT $278.34
29 342873 1 LH Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable up to Ass. No. 152428 $278.34
29 769259 1 LH Evaporative Emissions Control; Applicable for USA- CDN- USA LIGHT $294.87
29 769259 1 LH Evaporative Emissions Control; Applicable for EU GS- AUS- UK- -Applicable from Ass. No. 152429 $294.87
30 312802 1 Compl. Evaporative Emissions $41.95
31 312803 1 Compl. Evaporative Emissions $25.42

* Quantity shown indicates the number of pieces used in the diagram.
