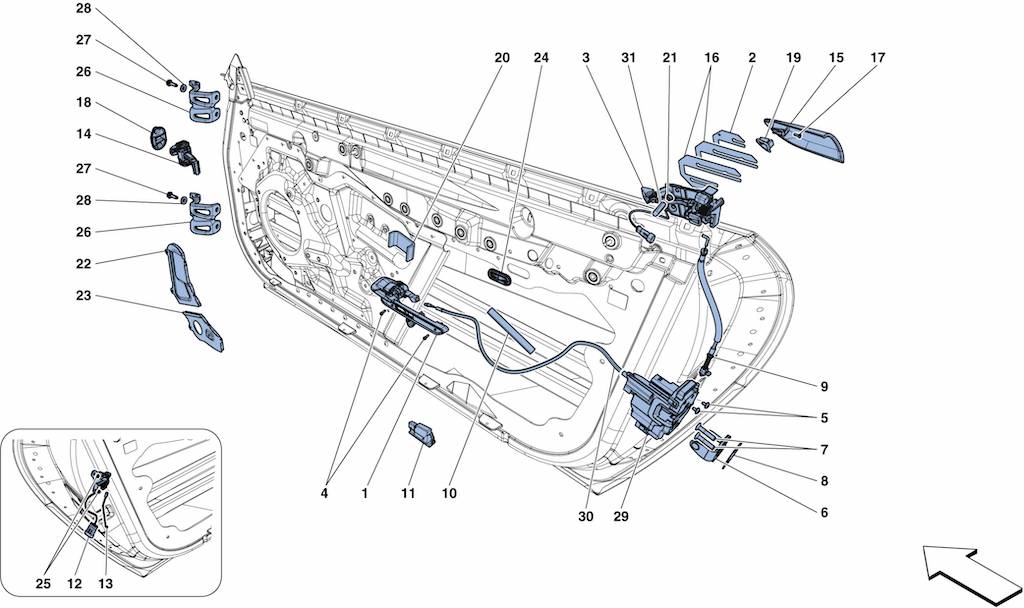

DOORS - OPENING MECHANISMS AND HINGES

Location Part # Quantity* Description Price Add To Cart
1 88554400 1 Compl. RH Door Handle Unavailable
1 88553700 1 Compl. LH Door Handle Unavailable
2 88007300 2 Door Handle Spacer LHD $4.12
3 87507400 1 Compl. RH Outer Door Handle $228.78
3 87507500 1 Compl. LH Outer Door Handle $228.78
4 14418924 4 Screw Unavailable
5 85478900 6 Screw 6x12 $1.32
6 85052500 2 Door Lock Striker Plate Unavailable
7 85052700 4 Screw Unavailable
8 85052600 2 Door Striker Plate Shim Unavailable
9 891987 2 Bowden; For vehicles up to Ass.ly No.163780 also order bracket 305724 ref.32 and nut 14059121 ref.33 $67.36
10 82936500 6 Protective Sheath For Internal Handle Bowden Cable; Applicable up to Ass. No. 163780 $2.54
10 82936500 4 Protective Sheath For Internal Handle Bowden Cable; Applicable from Ass. No. 163781 $2.54
11 318013 2 Light Unit $33.94
12 89180700 1 Latch Holder; Not for Right Hand Drive Vehicles $149.34
12 89180800 1 Latch Holder; Applicable for Right Hand Drive Vehicles $149.34
13 87589500 1 Compl. LH Door Latch Lever; Not for Right Hand Drive Vehicles $183.66
13 88037500 1 Compl. RH Door Latch Lever; Applicable for Right Hand Drive Vehicles $183.66
14 84873000 2 Door Arrester Tie-Rod $111.85
15 87507200 1 RH Outer Door Handle $80.08
15 87507300 1 LH Outer Door Handle $80.08
16 80821900 4 Door Handle Spacer $8.08
17 80365900 2 Screw 4x12 $0.90
18 83897000 2 Door Arrester Tie-Rod Seal Unavailable
19 87065700 1 RH Outer Door Handle Seal $12.81
19 87294300 1 LH Outer Door Handle Seal $12.81
20 262051 2 Sponge $2.54
21 14059121 8 Nut Unavailable
22 87871200 1 Compl. RH Door Front Plate $52.75
22 87871500 1 Compl. LH Door Front Plate $52.75
23 87877200 1 Compl. RH Door Removable Pla $54.06
23 87877600 1 Compl. LH Door Removable Pla $54.06
24 82629100 2 Cable Grommet Unavailable
25 14059121 2 Nut Unavailable
26 88446200 4 Door Hinge, Mobile Part $94.07
27 16043834 8 Screw Unavailable
28 12646778 8 Washer Unavailable
29 85730800 1 RH Door Lock LHD; Not for Right Hand Drive Vehicles- -Applicable until depletion Unavailable
29 785971 1 RH Door Lock LHD; Not for Right Hand Drive Vehicles- -Applicable after depletion of 85730800 $144.01
29 85731100 1 RH Door Lock RHD; Applicable for Right Hand Drive Vehicles- -Applicable until depletion Unavailable
29 785975 1 RH Door Lock RHD; Applicable for Right Hand Drive Vehicles- -Applicable after depletion of 85731100 $144.01
29 85730900 1 LH Door Lock LHD; Not for Right Hand Drive Vehicles- -Applicable until depletion Unavailable
29 785970 1 LH Door Lock LHD; Not for Right Hand Drive Vehicles- -Applicable after depletion of 85730900 $144.01
29 85731000 1 LH Door Lock RHD; Applicable for Right Hand Drive Vehicles- -Applicable until depletion Unavailable
29 785974 1 LH Door Lock RHD; Applicable for Right Hand Drive Vehicles- -Applicable after depletion of 85731000 $144.01
30 82596100 1 Inner Door Handle Bowden Cab $44.50
31 87638500 1 Buffer $23.64
32 305724 2 Bracket; Applicable from Ass. No. 163781 $5.38
33 14059121 2 Nut; Applicable from Ass. No. 163781 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
