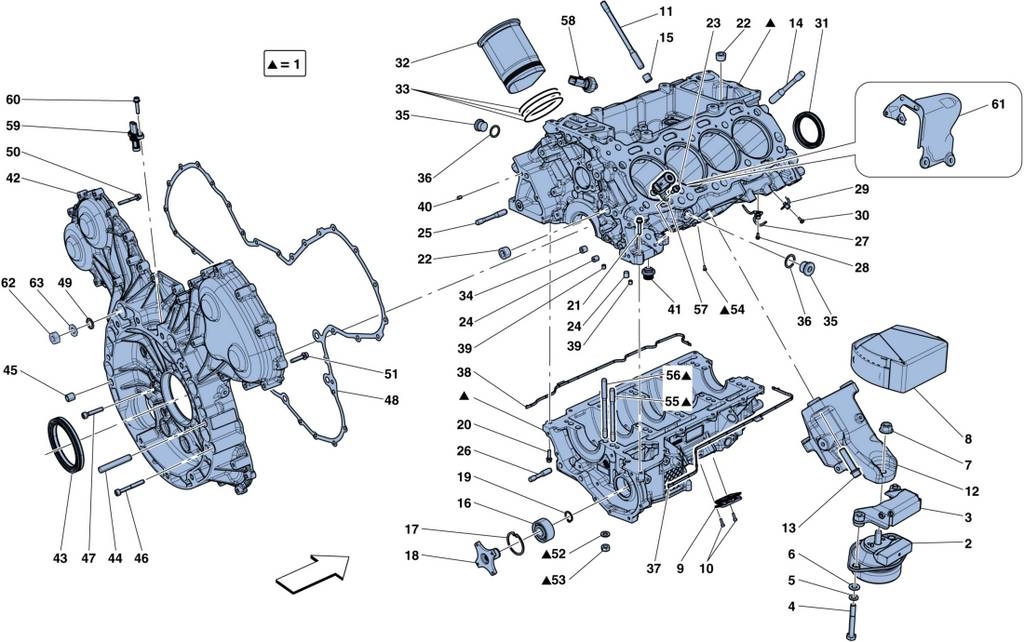

CRANKCASE

Go to Split View

CRANKCASE

Location Part # Quantity* Description Price Add To Cart
1 339315 1 Crankcase-Lower Crankcase Shell Assy;Applicable up to engine No. 411646 $4,550.60
1 804472 1 Crankcase-Lower Crankcase Shell Assy;Applicable from engine No. 411647 $4,809.66
2 339626 1 Compl. RH Bushing $493.15
2 339627 1 Compl. LH Bushing $493.15
3 341611 1 Compl. RH Bracket $120.75
3 341612 1 Compl. LH Bracket $120.75
4 15971324 6 Bolt $1.93
5 127497 6 Spring Washer 10mm $0.90
6 14496624 6 Washer D. 10.50-21 x2 $0.90
7 255271 2 Nut $1.71
8 312024 2 Heat Shield $68.38
9 255138 4 Blow-By Valve Assembly $104.39
10 14303123 8 Screw Unavailable
11 270464 18 Stud Bolt $28.16
12 337069 1 RH Engine Strut $306.95
12 342108 1 LH Engine Strut $311.14
13 290127 8 Screw $20.36
14 271564 2 Stud Bolt $26.40
15 185360 4 Centering Dowel $3.33
16 247049 1 Bearing $61.41
17 11060276 1 Snap Ring Unavailable
18 288133 1 Drive Joint $130.83
19 11066876 1 Circlip 20E Unavailable
20 231620 13 Screw 6x25 Unavailable
21 231621 1 Allen Screw 6x30 Unavailable
22 282753 2 Cover $8.65
23 233600 1 Screw 6x12 Unavailable
24 282755 2 Threaded Plug D 10x1.25 Unavailable
25 278119 6 Stud Bolt $19.95
26 278120 2 Stud Bolt $21.93
27 298858 4 Piston Cooling Nozzle Assembly $39.43
28 315493 4 Screw $1.36
29 298859 8 Piston Cooling Nozzle Assembly $27.14
30 315493 8 Screw $1.36
31 271598 1 Gasket $35.58
32 271810 8 Cylinder Sleeve $275.39
33 294153 24 Gasket $3.82
34 291078 2 Threaded Plug 12x11 $3.02
35 307477 2 Threaded Plug $4.83
36 10263460 2 Gasket Superseded
37 339298 1 RH Crankcase-Flange Gasket $50.57
38 339289 1 Gasket $50.57
39 102725 2 Dowel $1.36
40 311001 2 Alignment Dowel $3.51
41 294614 1 Check Valve $33.04
42 337624 1 Rear Timing Cover;Applicable up to engine No. 411646 $1,696.79
42 819301 1 Rear Timing Cover;Applicable from engine No. 411647 $1,803.06
43 240214 1 Rear Main Oil Seal $60.60
44 13546734 10 Stud 40mm $1.62
45 100052 2 Centering Dowel $2.64
46 231624 7 Allen Screw 6x45 Unavailable
46 285494 4 Screw 8x50 $1.26
47 231621 15 Allen Screw 6x30 Unavailable
47 231629 4 Allen Screw 8x30 Unavailable
48 331565 1 Gasket- -Applicable up to engine No. 411646 $222.68
49 323886 2 Washer With Rubber $14.52
50 231623 1 Screw 6x40 Unavailable
51 231621 1 Allen Screw 6x30 Unavailable
52 178348 20 Washer Unavailable
53 133988 20 Plain Nut 10mm Unavailable
54 312059 1 Alignment Dowel $1.42
55 270465 10 Stud Bolt $22.00
56 270466 10 Stud Bolt $24.64
57 269972 1 Oil Pressure Solenoid Valve $203.37
58 328660 1 Oil Pressure Sensor Unavailable
59 287273 1 RPM Sensor $91.38
60 231618 1 Allen Head Screw 6x20 Unavailable
61 291662 1 Paratia Anticalore Elettrov $184.89
62 133988 8 Plain Nut 10mm Unavailable
63 178348 8 Washer Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
