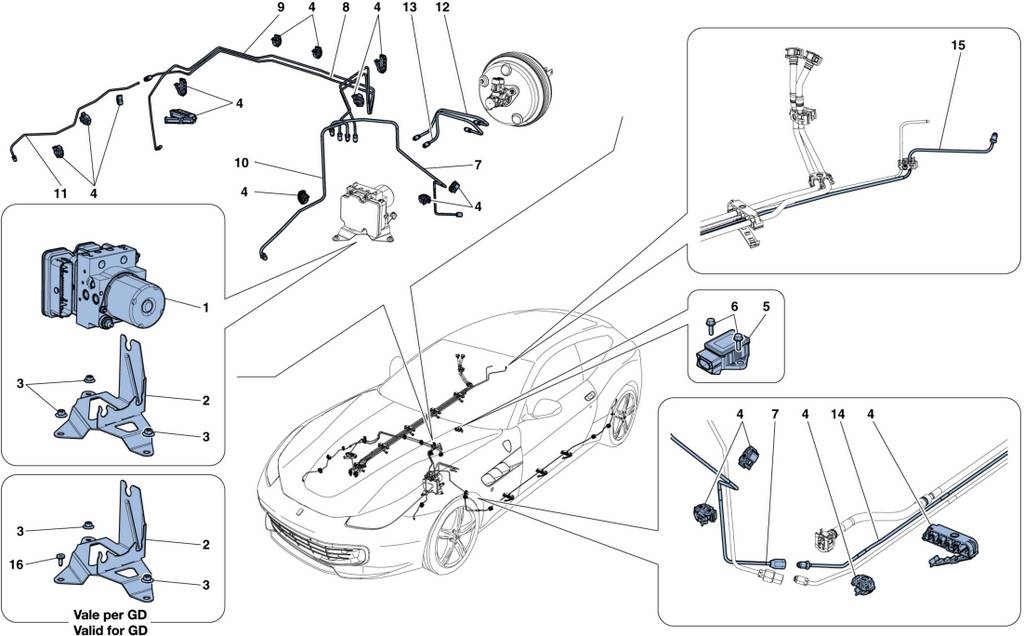

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 334088 1 Hydraulic Unit; Not for ADAS version $3,180.03
1 -0 1 HYDRAULIC UNIT; Applicable for ADAS version Unavailable
2 316239 1 Hydraulic Unit Fastener Bracket; Not for Right Hand Drive Vehicles $66.73
2 311486 1 Hydraulic Unit Fastener Bracket; Applicable for Right Hand Drive Vehicles $104.86
3 14039614 3 Flange Nut; Not for Right Hand Drive Vehicles Unavailable
3 14039614 2 Flange Nut; Applicable for Right Hand Drive Vehicles Unavailable
4 234284 2 Clip Unavailable
4 234285 8 Clip Unavailable
4 234286 2 Clip $1.93
4 241118 1 Clip; 5 compartments $1.62
5 307688 1 Yaw Sensor $268.87
6 16286124 2 Screw 6x20 Unavailable
7 309611 1 Brake Pipe To LH Rear Junction; Not for Right Hand Drive Vehicles $50.85
7 786051 1 Brake Pipe To LH Rear Junction; Applicable for Right Hand Drive Vehicles $123.17
8 316191 1 Brake Pipe To RH Front Junction; Not for Right Hand Drive Vehicles $101.68
8 311451 1 Brake Pipe To RH Front Junction; Applicable for Right Hand Drive Vehicles $43.34
9 339299 1 Brake Pipe To RH Rear Junction; Not for Right Hand Drive Vehicles $112.09
9 311447 1 Brake Pipe To RH Rear Junction; Applicable for Right Hand Drive Vehicles $52.37
10 314596 1 Brake Pipe To LH Front Junction; Not for Right Hand Drive Vehicles $40.67
10 340246 1 Brake Pipe To LH Front Junction; Applicable for Right Hand Drive Vehicles $107.15
11 268766 1 Brake Pipe From Junction To RH Front Module LHD; Not for Right Hand Drive Vehicles $45.24
11 274104 1 Brake Pipe From Junction To LH Front Module RHD; Applicable for Right Hand Drive Vehicles $51.35
12 309620 1 Rear Pump Brake Pipe; Not for Right Hand Drive Vehicles $50.21
12 311445 1 Rear Pump Brake Pipe; Applicable for Right Hand Drive Vehicles $49.31
13 309622 1 Front Pump Brake Pipe; Not for Right Hand Drive Vehicles $50.21
13 311437 1 Front Pump Brake Pipe; Applicable for Right Hand Drive Vehicles $49.19
14 268771 1 Brake Pipe From Junction To Rear LH Module $101.17
15 268773 1 Brake Pipe From Junction To Rear RH Module $88.97
16 80874100 1 Screw; Applicable for Right Hand Drive Vehicles $1.32

* Quantity shown indicates the number of pieces used in the diagram.
