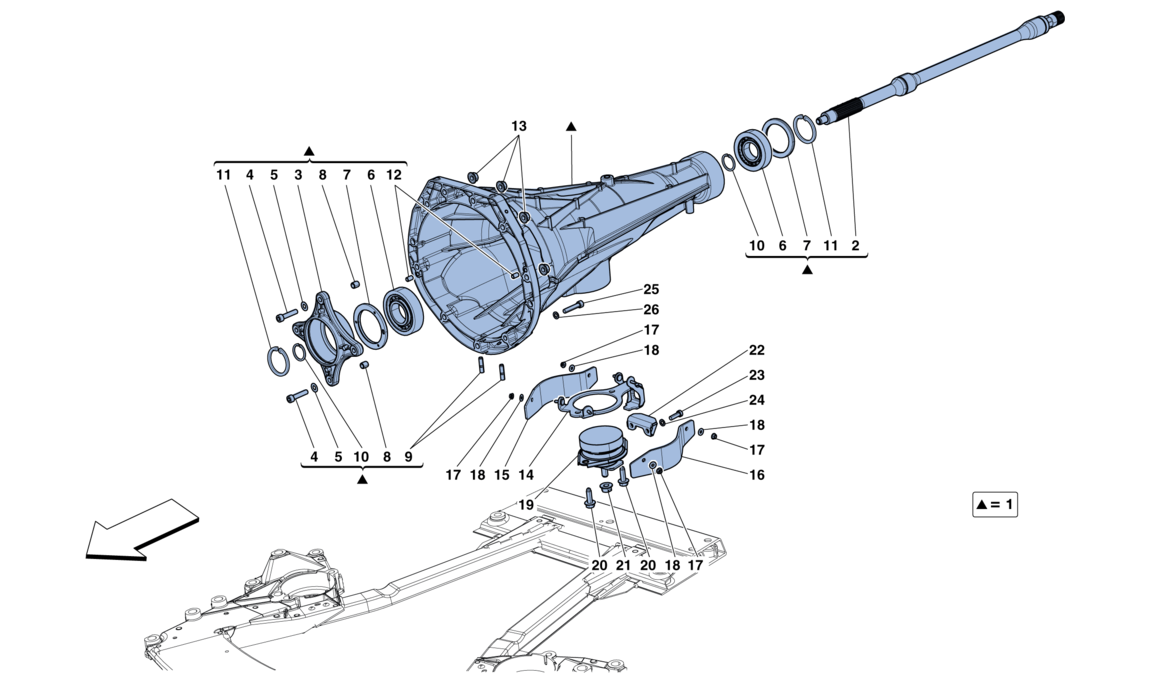

TRANSMISSION HOUSING

Go to Split View

TRANSMISSION HOUSING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 313195 *Qty: 1 COMPL. TRANSMISSION HOUSING Unavailable
Location: 2 Prev | Next Part: 313194 *Qty: 1 TRANSMISSION HOUSING SHAFT Unavailable
Location: 3 Prev | Next Part: 298690 *Qty: 1 FLANGE $3,891.38
Location: 4 Prev | Next Part: 14306624 *Qty: 4 SCREW Unavailable
Location: 5 Prev | Next Part: 12602479 *Qty: 4 WASHER Unavailable
Location: 6 Prev | Next Part: 253629 *Qty: 2 COMPLETE BEARING $586.86
Location: 7 Prev | Next Part: 253627 *Qty: 2 CONTAINMENT RING $211.86
Location: 8 Prev | Next Part: 102704 *Qty: 2 ALIGNMENT DOWEL $3.38
Location: 9 Prev | Next Part: 13543124 *Qty: 2 STUD BOLT Unavailable
Location: 10 Prev | Next Part: 11068874 *Qty: 2 SEEGER RING $17.51
Location: 11 Prev | Next Part: 11062474 *Qty: 2 SNAP RING $5.97
Location: 12 Prev | Next Part: 13807821 *Qty: 2 SCREW $74.75
Location: 13 Prev | Next Part: 14059421 *Qty: 10 NUT Unavailable
Location: 14 Prev | Next Part: 299596 *Qty: 1 COMPL. BUSH TRAVEL LIMITER BRACKET $92.06
Location: 15 Prev | Next Part: 299538 *Qty: 1 RH TRANSMISSION HOUSING BUSHING HEAT SHIELD $55.44
Location: 16 Prev | Next Part: 299539 *Qty: 1 LH TRANSMISSION HOUSING BUSHING HEAT SHIELD $55.44
Location: 17 Prev | Next Part: 14059114 *Qty: 4 NUT $0.90
Location: 18 Prev | Next Part: 12638124 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 270812 *Qty: 1 RUBBER BUSHING $186.20
Location: 20 Prev | Next Part: 18754324 *Qty: 2 SCREW $1.81
Location: 21 Prev | Next Part: 277822 *Qty: 1 NUT $1.25
Location: 22 Prev | Next Part: 277524 *Qty: 1 BUSHING TRAVEL STOP BRACKET Unavailable
Location: 23 Prev | Next Part: 13028734 *Qty: 2 SCREW Unavailable
Location: 24 Prev | Next Part: 14499424 *Qty: 2 WASHER Superseded
Location: 25 Prev | Next Part: 14306731 *Qty: 1 SCREW $0.99
Location: 26 Prev | Next Part: 14499424 *Qty: 1 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
