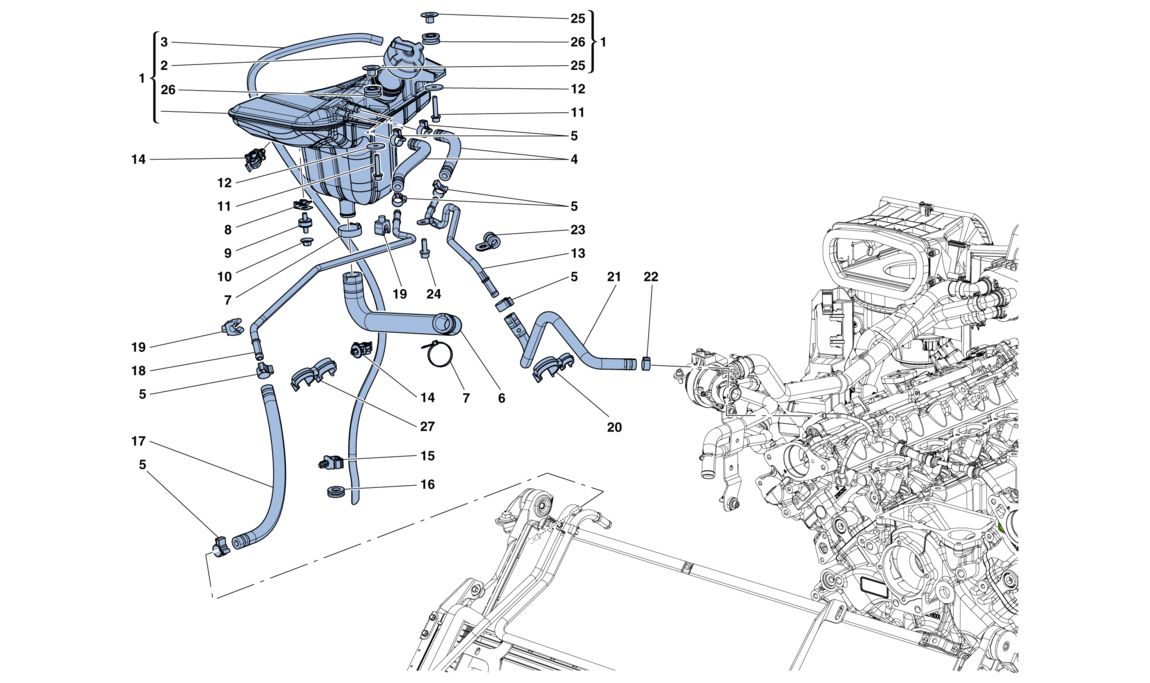

COOLING: HEADER TANK AND PIPES

Go to Split View

COOLING: HEADER TANK AND PIPES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 305322 *Qty: 1 COMPL. HEADER TANK $132.33
Location: 2 Prev | Next Part: 145030 *Qty: 1 CAP WITH BREATHER $49.75
Location: 3 Prev | Next Part: 305321 *Qty: 1 RUBBER PIPE $62.98
Location: 4 Prev | Next Part: 296672 *Qty: 2 RUBBER PIPE $14.94
Location: 5 Prev | Next Part: 13125470 *Qty: 7 RING CLAMP Unavailable
Location: 6 Prev | Next Part: 302788 *Qty: 1 FILLER PIPE $60.39
Location: 7 Prev | Next Part: 262111 *Qty: 2 COLLAR $1.78
Location: 8 Prev | Next Part: 62766300 *Qty: 1 CLIP FOR SCREW $0.90
Location: 9 Prev | Next Part: 225408 *Qty: 1 CYLINDRICAL BUSHING $7.37
Location: 10 Prev | Next Part: 14039614 *Qty: 1 NUT $0.90
Location: 11 Prev | Next Part: 231621 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 12640624 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 303327 *Qty: 1 METAL ENGINE VENT PIPE $86.28
Location: 14 Prev | Next Part: 250318 *Qty: 2 CLIP $0.90
Location: 15 Prev | Next Part: 262559 *Qty: 1 CLIP Unavailable
Location: 16 Prev | Next Part: 10397380 *Qty: 1 GROMMET $1.67
Location: 17 Prev | Next Part: 288385 *Qty: 1 RUBBER PIPE Unavailable
Location: 18 Prev | Next Part: 308735 *Qty: 1 METAL RADIATOR VENT PIPE $60.39
Location: 19 Prev | Next Part: 199589 *Qty: 2 CLIP $1.80
Location: 20 Prev | Next Part: 160014 *Qty: 1 CLIP $1.54
Location: 21 Prev | Next Part: 308658 *Qty: 1 PREFORMED VENT PIPE FROM ENGINE TO HEADER TANK $41.74
Location: 22 Prev | Next Part: 13431870 *Qty: 1 COLLAR FOR SLEEVE $0.90
Location: 23 Prev | Next Part: 10441190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 24 Prev | Next Part: 231617 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 286491 *Qty: 2 SPACER $37.37
Location: 26 Prev | Next Part: 286492 *Qty: 2 CABLE GROMMET $37.37
Location: 27 Prev | Next Part: 160013 *Qty: 1 CLIP $1.04

* Quantity shown indicates the number of pieces used in the diagram.
