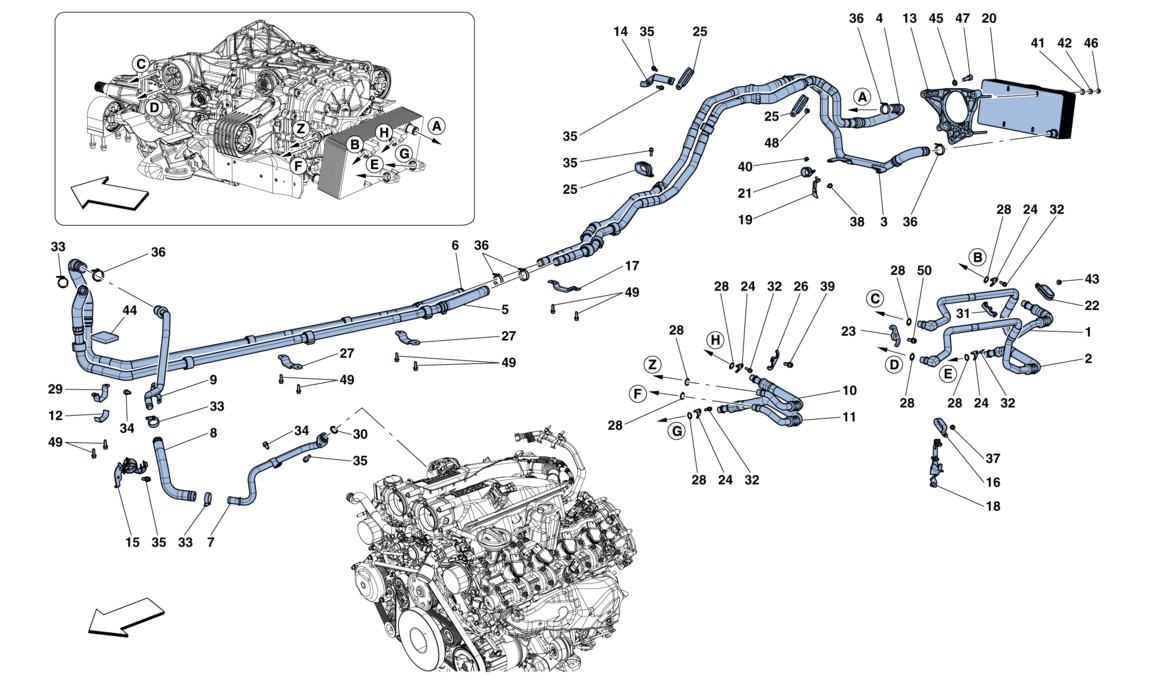

GEARBOX OIL LUBRICATION AND COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 275514 1 ATF FLUID RETURN PIPE $436.61
2 275515 1 ATF FLUID DELIVERY PIPE $442.11
3 288420 1 WATER DELIVERY PIPE ON GEARBOX $724.69
4 288421 1 WATER RETURN PIPE ON GEARBOX $621.16
5 279359 1 UNDERBODY WATER RETURN PIPE $534.88
6 280177 1 UNDERBODY WATER DELIVERY PIPE $793.71
7 310749 1 ENGINE COMPARTMENT WATER DELIVERY PIPE $241.55
8 303794 1 WATER DELIVERY FLEXIBLE HOSE $143.20
9 305550 1 ENGINE COMPARTMENT WATER DELIVERY PIPE ON CHASSIS $207.04
10 262814 1 GL OIL RETURN PIPE $264.12
11 262815 1 GL OIL DELIVERY PIPE $309.52
12 263561 1 FOAM $1.46
13 290643 1 OIL HEAT EXCHANGER MOUNTING FRAME Unavailable
14 279397 1 BRACKET $27.59
15 306952 1 BRACKET $13.98
16 275752 1 BRACKET $12.20
17 275903 1 UNDERBODY PIPE MOUNTING BRACKET $14.78
18 275751 1 BRACKET $48.30
19 268359 1 BRACKET Unavailable
20 266826 1 OIL HEAT EXCHANGER $1,174.75
21 10441990 1 BRACKET WITH SHEATH Unavailable
22 61712500 1 BRACKET WITH SHEATH $2.27
23 236479 1 FORK Superseded
24 262827 4 FORK $18.15
25 248454 3 BRACKET WITH SHEATH $10.80
26 261824 1 FORK $28.52
27 262045 2 UNDERBODY PIPE MOUNTING BRACKET $8.57
28 254644 8 O-RING $0.90
29 262056 1 PIPE RETAINER $24.14
30 264447 1 TOROID RING Unavailable
31 264810 1 SHIM $5.08
32 231617 4 SCREW Unavailable
33 262109 3 COLLAR $1.40
34 233600 2 SCREW Unavailable
35 231617 6 SCREW Unavailable
36 262111 5 COLLAR $2.11
37 14040611 1 NUT $0.90
38 233600 1 SCREW Unavailable
39 248471 1 SCREW $1.44
40 14040611 1 NUT $0.90
41 12647624 4 WASHER Unavailable
42 13604015 4 SHIM $2.68
43 14040611 1 NUT $0.90
44 266246 1 PROTECTIVE FOAM $3.78
45 12648321 3 WASHER Unavailable
46 14058421 4 NUT $1.66
47 14307534 3 SCREW $3.94
48 14040611 1 NUT $0.90
49 231618 8 SCREW Unavailable
50 231628 1 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
