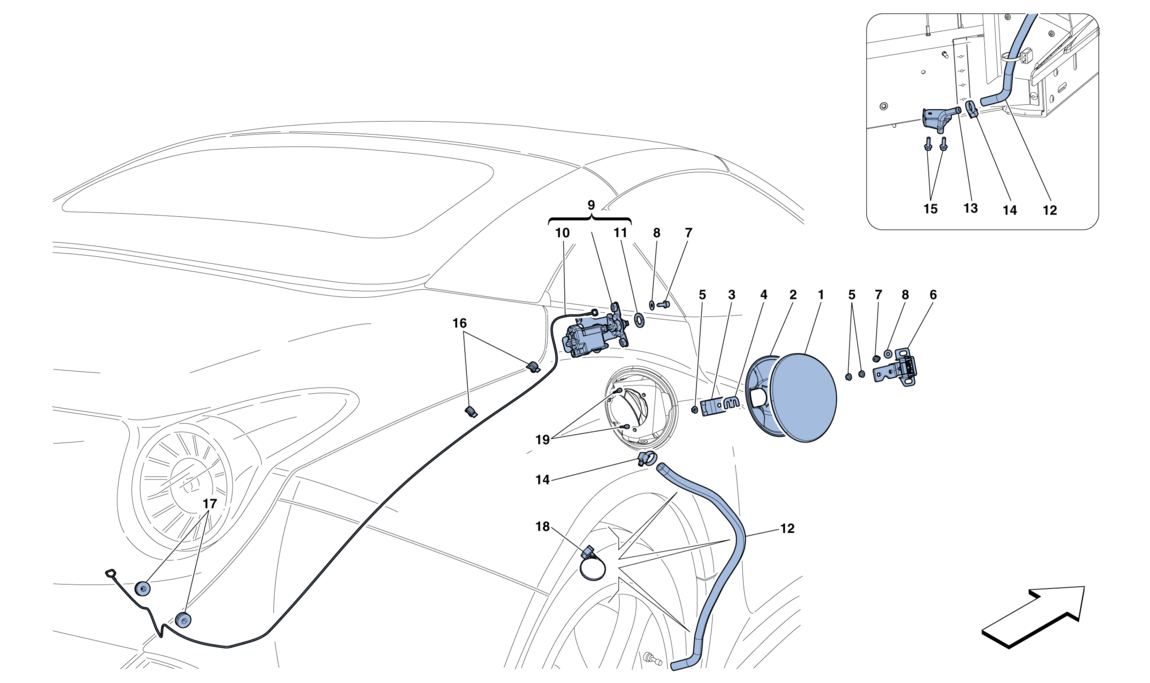

FUEL FILLER FLAP AND CONTROLS

Go to Split View

FUEL FILLER FLAP AND CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 85074411 *Qty: 1 FUEL FILLER FLAP $475.74
Location: 2 Prev | Next Part: 85184200 *Qty: 1 TRIM $12.27
Location: 3 Prev | Next Part: 82249400 *Qty: 1 STRIKER PLATE $7.47
Location: 4 Prev | Next Part: 81619400 *Qty: 1 SPACER $4.83
Location: 5 Prev | Next Part: 14059111 *Qty: 3 NUT $0.90
Location: 6 Prev | Next Part: 85528700 *Qty: 1 COMPL. HINGE $84.72
Location: 7 Prev | Next Part: 11566227 *Qty: 4 SCREW Unavailable
Location: 8 Prev | Next Part: 12638124 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 85143200 *Qty: 1 ACTUATOR $83.81
Location: 10 Prev | Next Part: 86491400 *Qty: 1 EMERGENCY CABLE $37.96
Location: 11 Prev | Next Part: 67067600 *Qty: 1 SEAL RING FOR BASE $3.13
Location: 12 Prev | Next Part: 84487700 *Qty: 1 FUEL DRAIN PIPE $9.97
Location: 13 Prev | Next Part: 84487800 *Qty: 1 COMPL. RIGID FUEL DRAIN PIPE $38.63
Location: 14 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR $0.90
Location: 15 Prev | Next Part: 16286121 *Qty: 2 SCREW $0.90
Location: 16 Prev | Next Part: 14569580 *Qty: 2 CLIP -No longer supplied- -Replaced by 14569480- $0.90
Location: 16 Prev | Next Part: 14569480 *Qty: 2 CLIP $0.90
Location: 17 Prev | Next Part: 10396180 *Qty: 2 RING $3.09
Location: 18 Prev | Next Part: 242384 *Qty: 3 RING CLAMP $0.90
Location: 19 Prev | Next Part: 84933800 *Qty: 2 RUBBER PAD -No longer supplied- -Replaced by 81802300- Unavailable
Location: 19 Prev | Next Part: 81802300 *Qty: 2 RUBBER PAD $5.00

* Quantity shown indicates the number of pieces used in the diagram.
