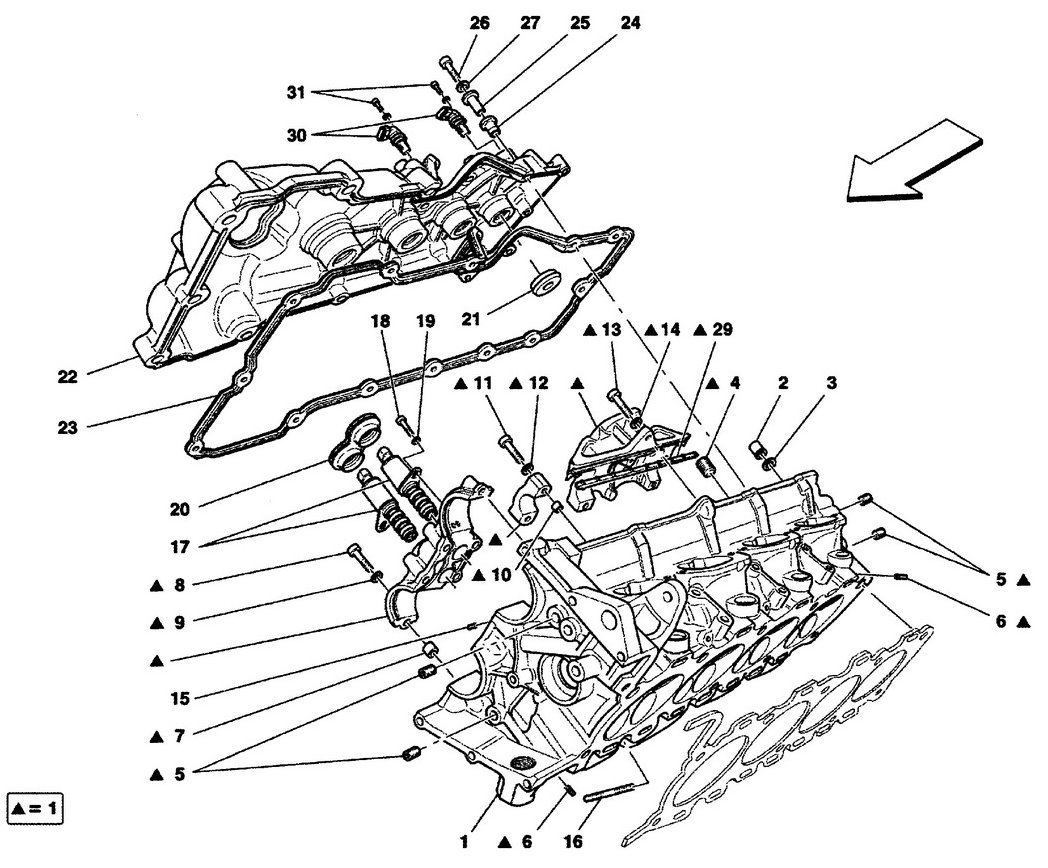

R.H. CYLINDER HEAD

Location Part # Quantity* Description Price Add To Cart
1 252772 1 COMPLETE R.H. HEAD -Applicable up to engine No. 149383- -Valid till stock exhaustion- $3,429.97
1 256825 1 COMPLETE R.H. HEAD -Applicable from engine No. 149384- -Applicable after depletion of 252772- $2,910.28
2 183524 10 NUT Unavailable
3 151117 10 WASHER $1.50
4 14325140 5 THREADED PLUG Unavailable
5 14326001 4 THREADED PLUG Unavailable
6 199760 5 THREADED PLUG $0.90
7 102725 2 CENTERING DOWEL $1.50
8 14305921 6 SCREW Unavailable
9 11197774 6 WASHER $0.90
10 102725 2 CENTERING DOWEL $1.50
11 14305621 12 SCREW Superseded
12 11197774 12 WASHER $0.90
13 14305621 4 SCREW Superseded
14 11197774 5 WASHER $0.90
15 226415 2 DOWEL -Applicable up to engine No. 149383- $6.31
15 256827 2 DOWEL -Applicable from engine No. 149384- $6.84
16 13543424 8 STUD Unavailable
17 227866 2 OIL PRESSURE CHECK VALVE Superseded
18 14304224 2 SCREW Unavailable
19 11181574 2 WASHER Unavailable
20 229353 1 GASKET $20.69
21 223982 4 GASKET $2.74
22 249635 1 R.H. HEAD COVER $552.14
23 239179 1 R.H. HEAD COVER GASKET $51.74
24 203102 11 RUBBER BUSHING $7.15
24 239748 5 RUBBER BUSHING $10.64
25 228598 11 BUSHING $4.71
25 239405 5 BUSHING $6.00
26 213129 11 SCREW Unavailable
26 239501 4 SCREW Unavailable
27 11197774 16 WASHER $0.90
28 250383 1 STUD -Image not available- $14.13
29 239614 1 GASKET $7.23
30 224573 2 PHASE SENSOR $42.20
31 231616 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
