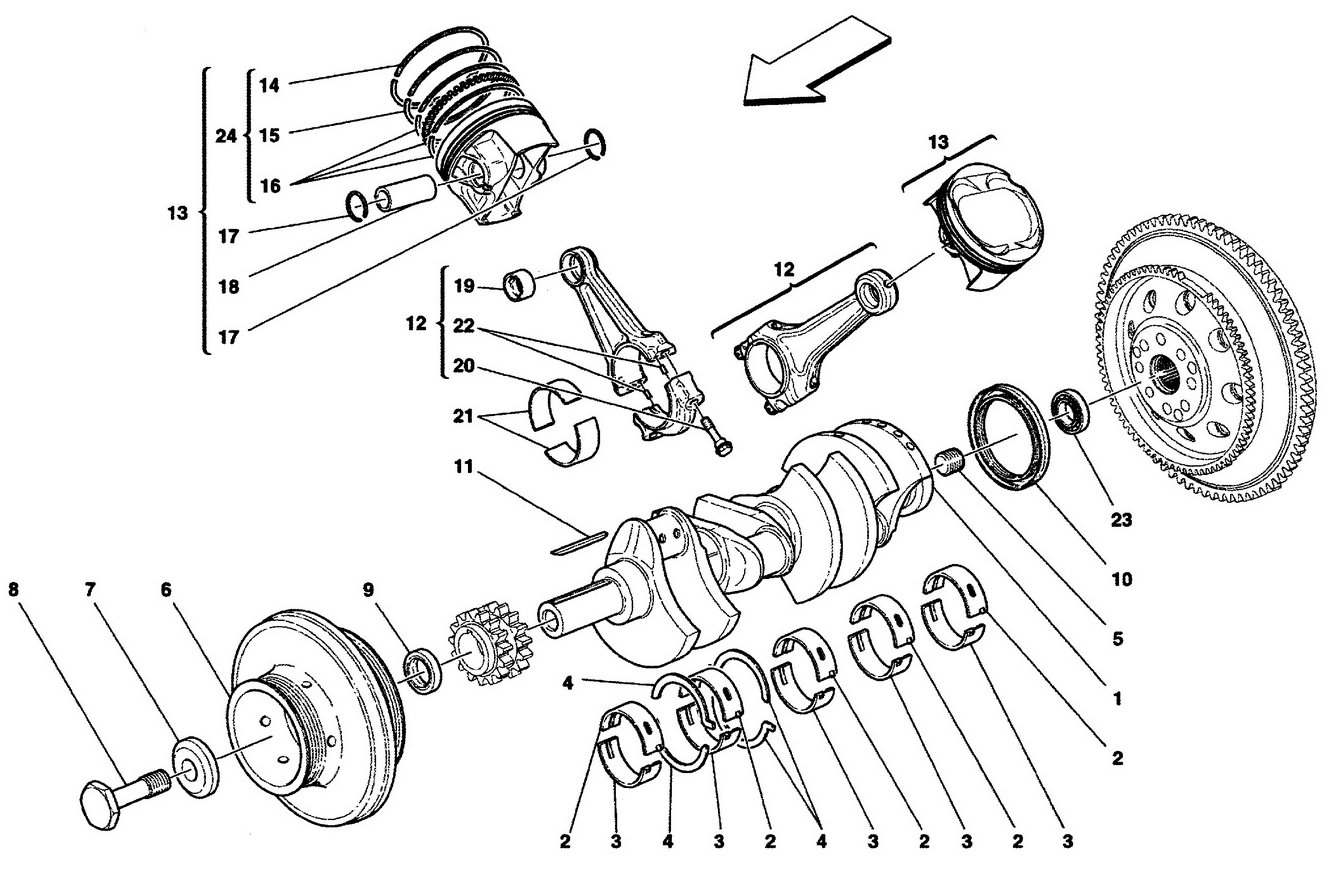

CRANKSHAFT, CONNECTING RODS AND PISTONS

Location Part # Quantity* Description Price Add To Cart
1 234930 1 CRANKSHAFT $1,990.98
2 198910 5 UPPER HALF BEARING -Green - Standard- $32.76
2 195307 5 UPPER HALF BEARING -Blue- Superseded
2 195308 5 UPPER HALF BEARING -Yellow- $101.78
3 200196 5 LOWER HALF BEARING -Green - Standard- $34.49
3 200194 5 LOWER HALF BEARING -Blue- Superseded
3 200195 5 LOWER HALF BEARING -Yellow- $29.31
4 222874 4 SHIM $36.22
5 176396 1 THREADED PLUG $7.29
6 239474 1 TORSION DAMPER $6.00
7 192106 1 WASHER $7.90
8 196216 1 SCREW FOR DAMPER FIXING $100.46
9 188717 1 GASKET $32.76
10 200323 1 SEAL RING $56.92
11 186201 1 KEY $1.28
12 256588 1 COMPLETE CONNECTING ROD -Not as spare part- -Replaced by 256588- Unavailable
12 256588 1 COMPLETE CONNECTING ROD Unavailable
13 246716 4 R.H. SIDE ENGINE PISTON WITH RINGS Unavailable
13 246717 4 LH. SIDE ENGINE PISTON WITH RINGS Unavailable
14 - 8 SEAL RING -Istgroove- Unavailable
15 - 8 SEAL RING -2nd groove- Unavailable
16 - 8 OIL SCRAPING RING -3nd groove- Unavailable
17 178890 16 STOP RING Unavailable
18 198260 8 PIN $81.63
19 224504 8 BUSHING $21.58
20 218371 16 CONNECTING ROD TIGHTENING SCREW Unavailable
21 204290 16 CONNECTING ROD HALFBEARING -Red - Standard- $9.99
21 204291 16 CONNECTING ROD HALF BEARING -Blue- $9.99
21 204292 16 CONNECTING ROD HALF BEARING -Black- $9.99
22 224608 4 CENTERING PIN $3.35
23 103877 1 BEARING $49.00
24 254778 8 Pistons Rings Set $240.45

* Quantity shown indicates the number of pieces used in the diagram.
