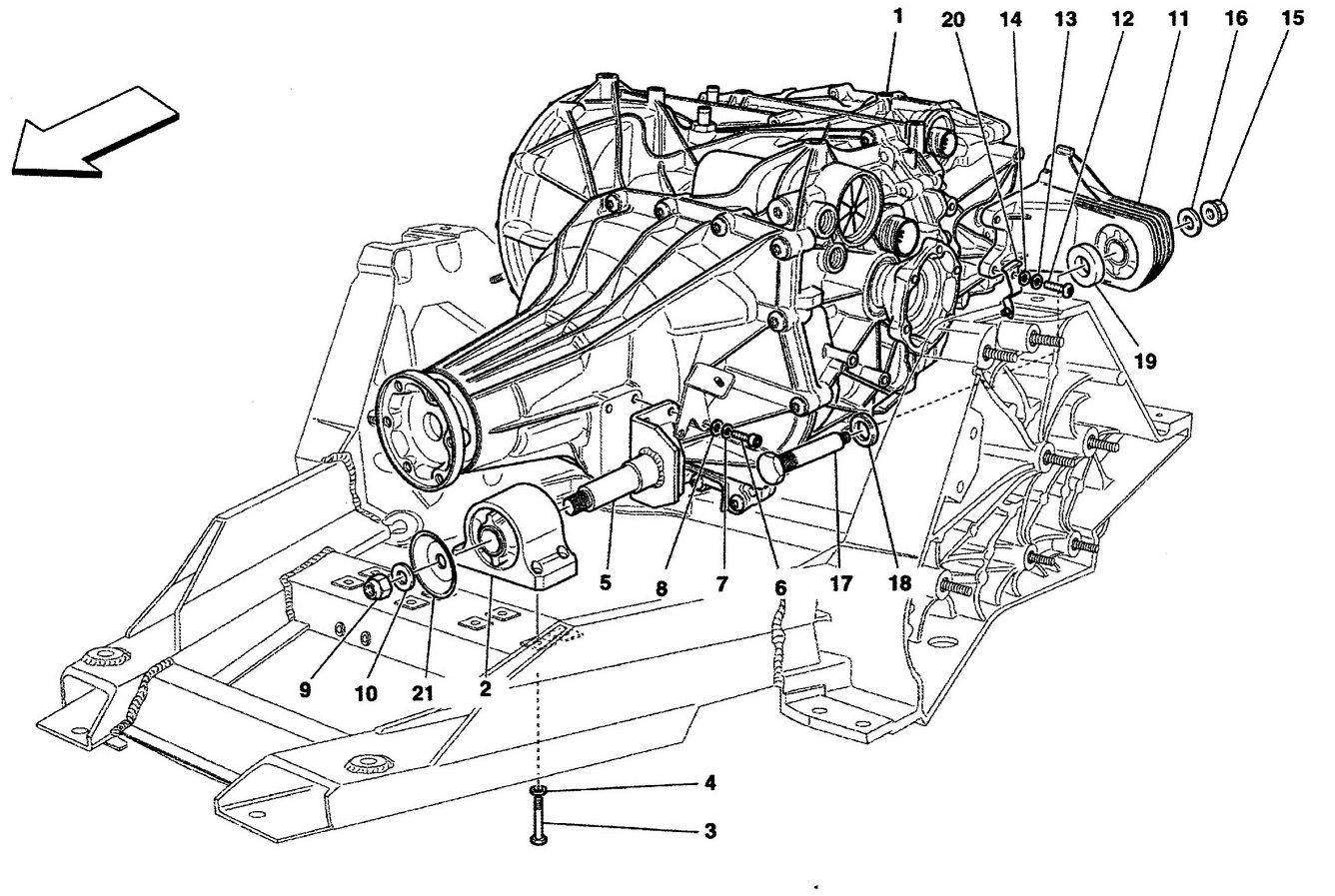

GEARBOX HOUSING
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 256098 | 1 | COMPLETE GEARBOX -Not as spare part- -Replaced by 256098- | Unavailable | |
| 1 | 256098 | 1 | Complete Gearbox | Unavailable | |
| 2 | 239753 | 2 | COMPLETE PAD SUPPORT | $552.14 | |
| 3 | 14308924 | 8 | SCREW | $5.62 | |
| 4 | 11198074 | 8 | WASHER | Unavailable | |
| 5 | 235647 | 1 | FRONT BRACKET FOR GEARBOX SUPPORT | $211.82 | |
| 6 | 14814434 | 8 | SCREW | Superseded | |
| 7 | 14499421 | 8 | WASHER | Unavailable | |
| 8 | 127496 | 8 | WASHER | $0.90 | |
| 9 | 14048921 | 2 | NUT | $2.29 | |
| 10 | 14496821 | 2 | WASHER | Unavailable | |
| 11 | 239754 | 1 | L.H. REAR BRACKET FOR GEARBOX SUPPORT | $621.16 | |
| 11 | 239755 | 1 | R.H. REAR BRACKET FOR GEARBOX SUPPORT | $621.16 | |
| 12 | 247857 | 8 | SCREW | $2.88 | |
| 13 | 14499421 | 8 | WASHER | Unavailable | |
| 14 | 127496 | 8 | WASHER | $0.90 | |
| 15 | 14048921 | 8 | NUT | $2.29 | |
| 16 | 14496821 | 2 | WASHER | Unavailable | |
| 17 | 243075 | 2 | PIN | $129.13 | |
| 18 | 10731314 | 2 | WASHER | $1.75 | |
| 19 | 243122 | 2 | SPACER | $6.90 | |
| 20 | 248729 | 1 | BRACKET | $13.74 | |
| 21 | 241603 | 4 | CUP | $11.25 |
* Quantity shown indicates the number of pieces used in the diagram.
