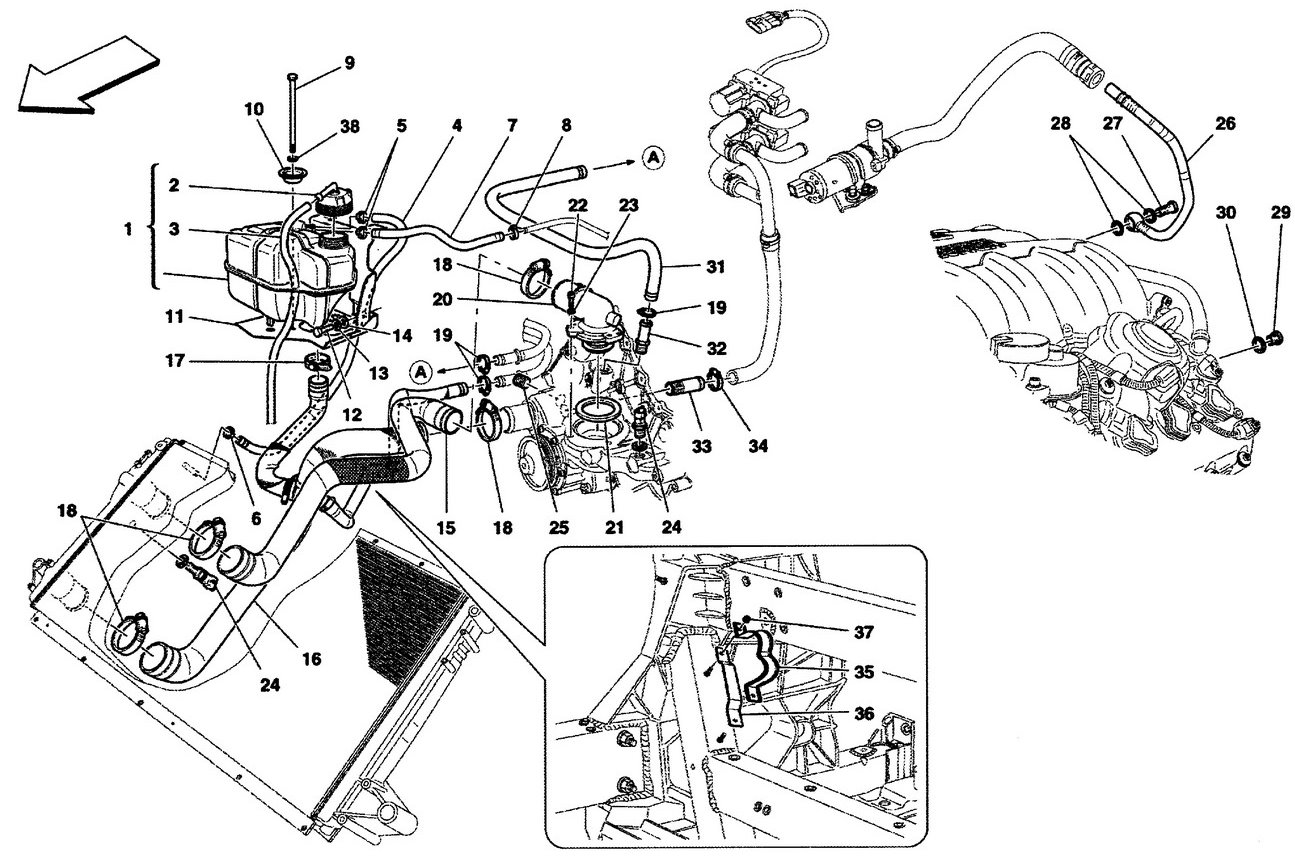

COOLING SYSTEM: NOURICE AND LINES

Location Part # Quantity* Description Price Add To Cart
1 225992 1 COMPLETE EXPANSION TANK $327.82
2 46556738 1 TANK PLUG $32.76
3 252752 1 HOSE $75.54
4 237540 1 VENT PIPE FROM EXPANSION TANK TO RADIATOR $55.20
5 13432070 2 COLLAR Unavailable
6 13000190 1 SCREW COLLAR $0.90
7 247800 1 VENT PIPE FROM EXPANSION TANK TO BUNDY $29.31
8 177995 1 CLAMP $1.52
9 254717 1 SCREW $5.46
10 82404496 1 CUP $4.14
11 252774 1 BRACKET $95.32
12 16043436 2 SCREW $0.90
13 127496 2 WASHER $0.90
14 12647121 2 WASHER Unavailable
15 244779 1 DELIVERY PIPE FROM ENGINE TO RADIATOR $483.12
16 250970 1 RETURN PIPE FROM RADIATOR TO ENGINE $345.08
17 13000490 1 SCREW COLLAR Superseded
18 13000790 4 SCREW COLLAR $1.02
19 13000390 3 SCREW COLLAR Unavailable
20 230890 1 THERMO-PRESSOSTAT COVER $189.78
21 137873 1 GASKET $5.68
22 14433124 3 SCREW Unavailable
23 12601274 3 WASHER $0.90
24 180137 2 WATER TEMPERATURE SENSOR $32.46
25 238510 1 PLUG $12.24
26 247666 1 WATER PIPE FROM R.H. CYLINDER HEAD -Not for RHD- $196.02
26 252689 1 WATER PIPE FROM R.H. CYLINDER HEAD -Valid for RHD- $119.04
27 203787 1 UNION $12.16
28 10259960 2 GASKET $0.90
29 10300811 1 THREADED PLUG $3.15
30 10259960 1 GASKET $0.90
31 241398 1 WATER DELIVERY PIPE $63.82
32 241579 1 THREADED UNION $18.92
33 235736 1 THREADED UNION Unavailable
34 13000490 1 SCREW COLLAR Superseded
35 236950 1 WATER SLEEVES SUPPORT $27.89
36 236951 1 SMALL PLATE $15.59
37 14058411 2 NUT Superseded
38 12601274 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
