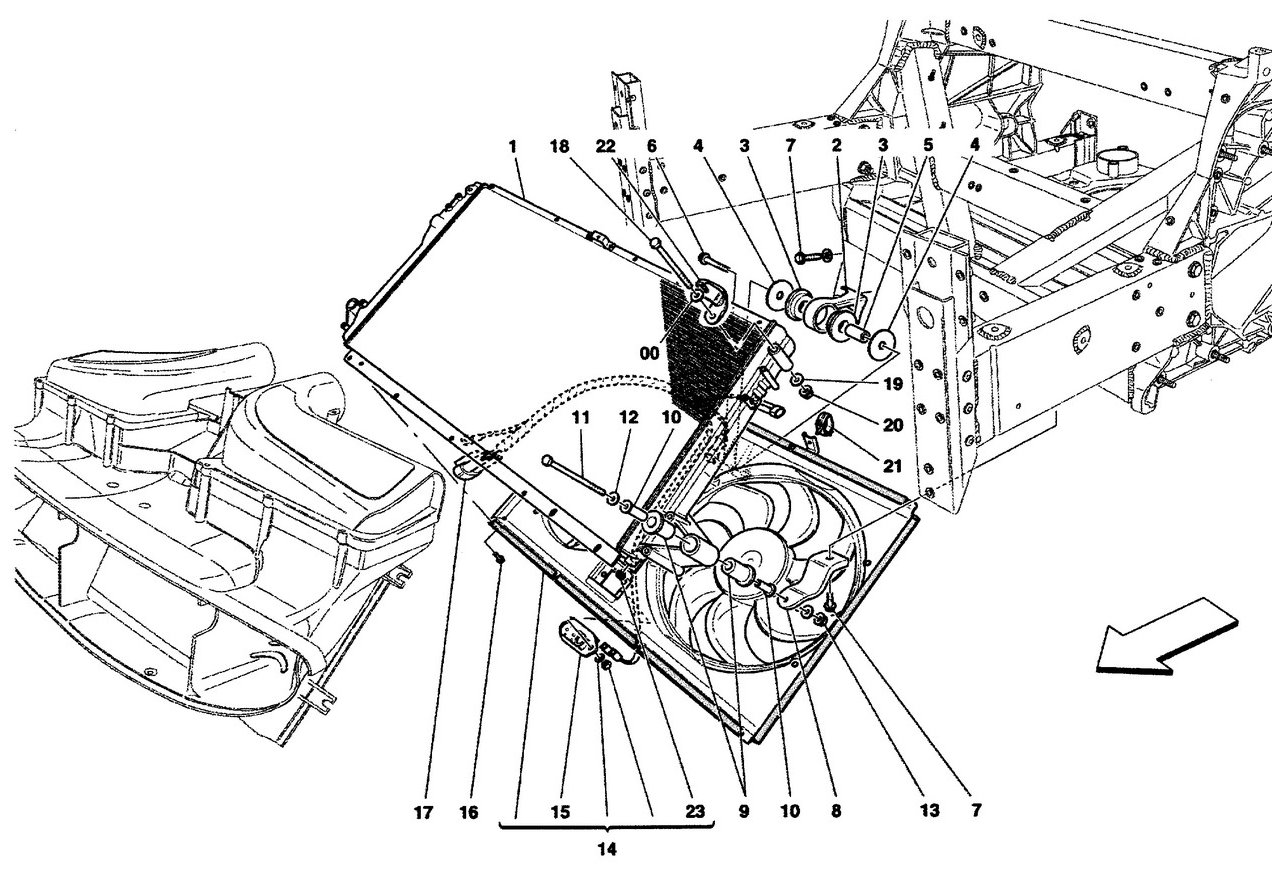

COOLING: AIR RADIATORS AND DUCTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 225988 *Qty: 1 WATER RADIATOR Superseded
Location: 2 Prev | Next Part: 213559 *Qty: 1 BRACKET FOR CENTRAL FIXING WATER RADIATOR $29.23
Location: 3 Prev | Next Part: 138926 *Qty: 2 RUBBER $4.95
Location: 4 Prev | Next Part: 227430 *Qty: 2 WASHER $2.36
Location: 5 Prev | Next Part: 227431 *Qty: 1 BUSHING $4.58
Location: 6 Prev | Next Part: 16044534 *Qty: 1 SCREW $1.17
Location: 7 Prev | Next Part: 16287224 *Qty: 4 SCREW Superseded
Location: 8 Prev | Next Part: 244584 *Qty: 1 L.H. LOWER BRACKET $35.08
Location: 8 Prev | Next Part: 244585 *Qty: 1 R.H. LOWER BRACKET $35.86
Location: 9 Prev | Next Part: 197584 *Qty: 4 RUBBER BUSHING $3.00
Location: 10 Prev | Next Part: 197585 *Qty: 4 BUSHING $5.12
Location: 11 Prev | Next Part: 16044824 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 12646724 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 14058511 *Qty: 2 NUT $0.90
Location: 14 Prev | Next Part: 247547 *Qty: 1 COMPLETE ELECTROFANS SET $1,237.09
Location: 15 Prev | Next Part: 219453 *Qty: 1 RESISTOR $57.30
Location: 16 Prev | Next Part: 16285227 *Qty: 8 SCREW $0.90
Location: 17 Prev | Next Part: 255567 *Qty: 1 FAN RADIATOR CABLE -Not as spare part- -Replaced by 255567- $108.57
Location: 17 Prev | Next Part: 255567 *Qty: 1 FAN RADIATOR CABLE $108.57
Location: 18 Prev | Next Part: 16044621 *Qty: 1 SCREW $0.90
Location: 19 Prev | Next Part: 12642024 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 14058511 *Qty: 1 NUT $0.90
Location: 21 Prev | Next Part: 224878 *Qty: 1 CLIP $1.57
Location: 22 Prev | Next Part: 253488 *Qty: 1 BRACKET FOR OIL DELIVERY TUBE $17.44
Location: 23 Prev | Next Part: 14621787 *Qty: 2 PLUG $26.37

* Quantity shown indicates the number of pieces used in the diagram.
