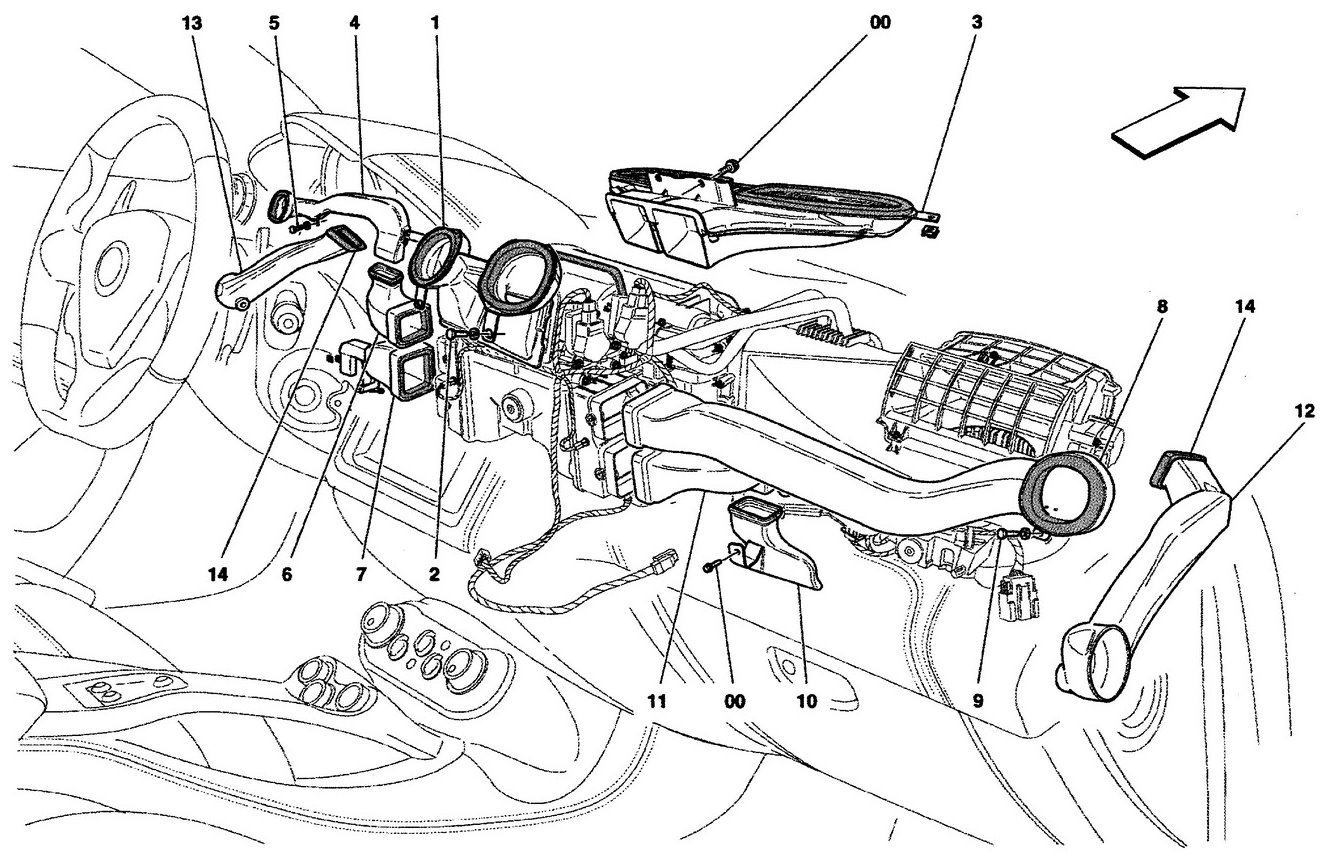

A/C UNIT: DIFFUSION

Go to Split View

A/C UNIT: DIFFUSION

Location Part # Quantity* Description Price Add To Cart
1 80810900 1 CENTRAL OPENING AIR DUCTING $89.46
2 16286024 2 SCREW Unavailable
3 80809500 1 AIR DUCTING $89.67
4 80811600 1 DRIVER SIDE UPPER AIR DUCTING -Not for RHD- $71.29
4 80895400 1 DRIVER SIDE UPPER AIR DUCTING -Valid for RHD- $73.20
5 16286024 2 SCREW Unavailable
6 81037800 1 LOWER DASHBOARD AIR DUCTING -Not for RHD- $34.35
6 81268200 1 LOWER DASHBOARD AIR DUCTING -Valid for RHD- $38.67
7 80811400 1 DRIVER SIDE LOWER AIR DUCTING -Not for RHD- $76.21
7 80896100 1 DRIVER SIDE LOWER AIR DUCTING -Valid for RHD- $88.14
8 80811200 1 PASSENGER SIDE AIR DUCTING -Not for RHD- $95.71
8 80895300 1 PASSENGER SIDE AIR DUCTING -Valid for RHD- $96.22
9 16286024 1 SCREW Unavailable
10 80812100 1 PASSENGER SIDE LOWER AIR DUCTING -Not for RHD- $46.51
10 80895900 1 PASSENGER SIDE LOWER AIR DUCTING -Valid for RHD- $53.80
11 80811900 1 PASSENGER SIDE UPPER AIR DUCTING -Not for RHD- $44.01
11 80896000 1 PASSENGER SIDE UPPER AIR DUCTING -Valid for RHD- $47.60
12 80518500 1 R.H. DOOR - DASHBOARD AIR DUCTING $38.71
13 80518600 1 L.H, DOOR - DASHBOARD AIR DUCTING $38.71
14 82238300 2 INSULATION $26.43

* Quantity shown indicates the number of pieces used in the diagram.
