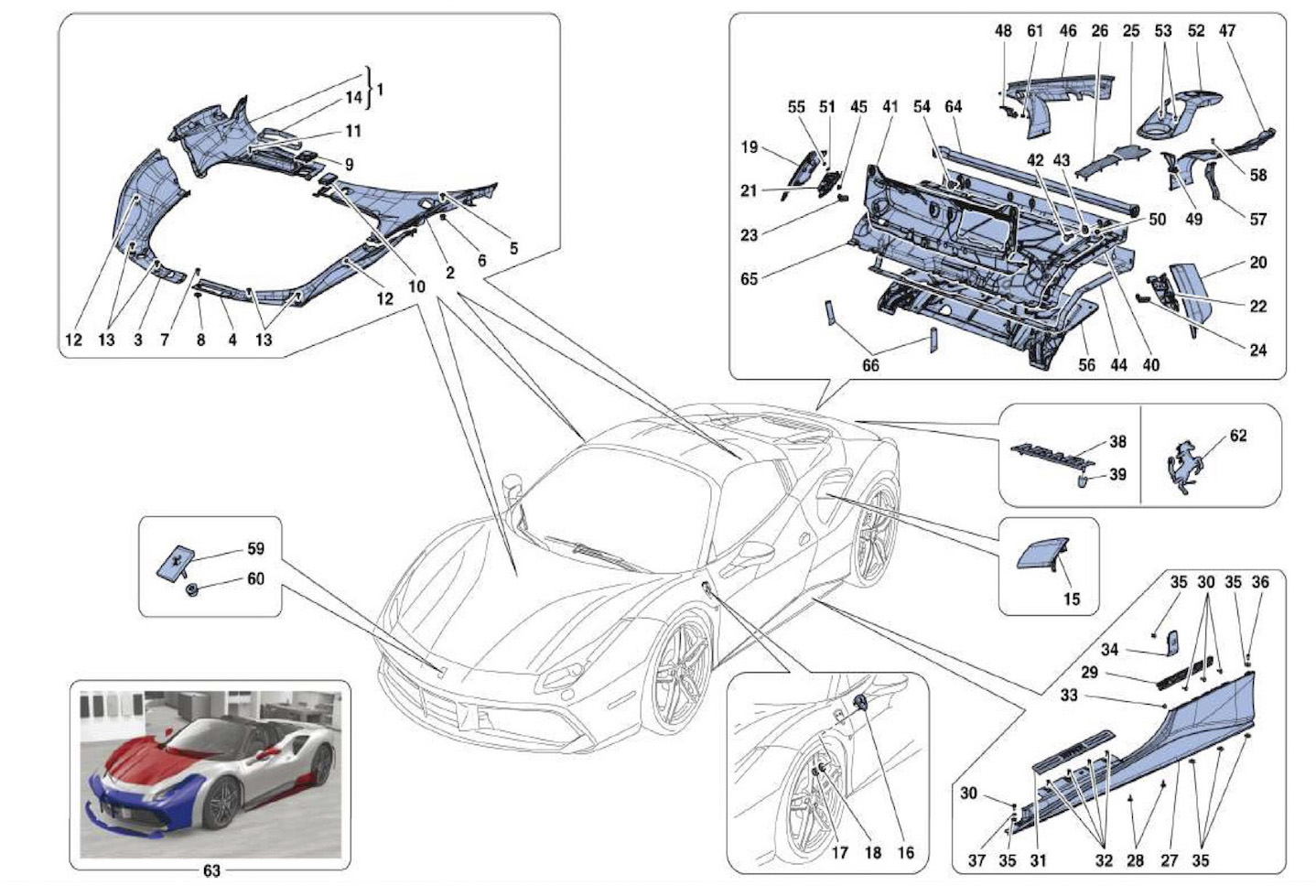

SHIELDS - EXTERNAL TRIM

Go to Split View

SHIELDS - EXTERNAL TRIM

Location Part # Quantity* Description Price Add To Cart
1 85774200 1 WINDSCREEN WIPER COMPLETE LHD-NOT FOR GD- $794.34
1 85890100 1 WINDSCREEN WIPER COMPLETE RHD-APPLICABLE FOR GD- $1,095.29
2 81511900 1 DRIVER SIDE WINDSCREEN WIPER ARM LHD-NOT FOR GD- $353.57
2 82964300 1 DRIVER SIDE WINDSCREEN WIPER ARM RHD-APPLICABLE FOR GD- $336.74
3 80534900 1 DRIVER SIDE WIPER BLADE LHD-NOT FOR GD- $112.30
3 80539000 1 DRIVERS SIDE WIPER BLADE RHD-APPLICABLE FOR GD- - DRIVERS $149.21
4 81511800 1 PASSENGER SIDE WINDSCREEN WIPER ARM LHD-NOT FOR GD- $171.70
4 82964200 1 PASSENGER SIDE WINDSCREEN WIPER ARM RHD-APPLICABLE FOR GD- $163.52
5 81511600 1 PASSENGER SIDE WINDSCREEN WIPER BLADE LHD-NOT FOR GD- $92.71
5 82964000 1 PASSENGER SIDE WINDSCREEN WIPER BLADE RHD-APPLICABLE FOR GD- $123.30
6 86626200 1 WINDSCREEN / HEADLIGHT WASHER FLUID RESERVOIR $598.95
7 310701 1 RH HORN-NOT FOR UK- $27.51
7 327396 1 RH HORN-APPLICABLE FOR UK- $72.65
8 310702 1 LH HORN-NOT FOR UK- Unavailable
8 327397 1 LH HORN-APPLICABLE FOR UK- $72.65
9 83087800 1 PIPE 4X8X126-FROM VALVE TO SPRAY NOZZLE- $17.23
10 86839800 1 PIPE-FROM VALVE TO SPRAY NOZZLE- $100.94
11 82984600 1 CHECK VALVE (3 WAY) $6.74
12 65191000 2 SPRAY NOZZLE $3.57
13 16281827 2 SCREW 5X14-M5 X 14- Unavailable
14 81045300 2 SCREW 6X16- USE 82118300 Unavailable
15 10902824 3 SCREW 6X30 Unavailable
16 10791021 2 NUT LHD-NOT FOR GD- Unavailable
16 10791011 2 NUT RHD-APPLICABLE FOR GD- Unavailable
17 12601474 2 WAVY WASHER 10MM Unavailable
18 15811787 2 PROTECTIVE CAP 17X10.5 $1.02
19 65759400 13 SPRING $0.95
20 12601274 3 WAVY WASHER 6MM $0.90
21 12640604 3 WASHER D.6 15-25X Unavailable
22 62940900 1 ALLEN HEAD SCREW 6X15 $1.71
23 10396180 1 RUBBER RING $3.39
24 83982600 1 ANTI-VIBRATION RUBBER PIPE-L. 500 MM- $5.70
25 83982500 1 ANTI-VIBRATION RUBBER PIPE-L. 100 MM- $1.93
26 87420200 1 ANTI-VIBRATION RUBBER PIPE-NOT FOR GD- $8.44

* Quantity shown indicates the number of pieces used in the diagram.
