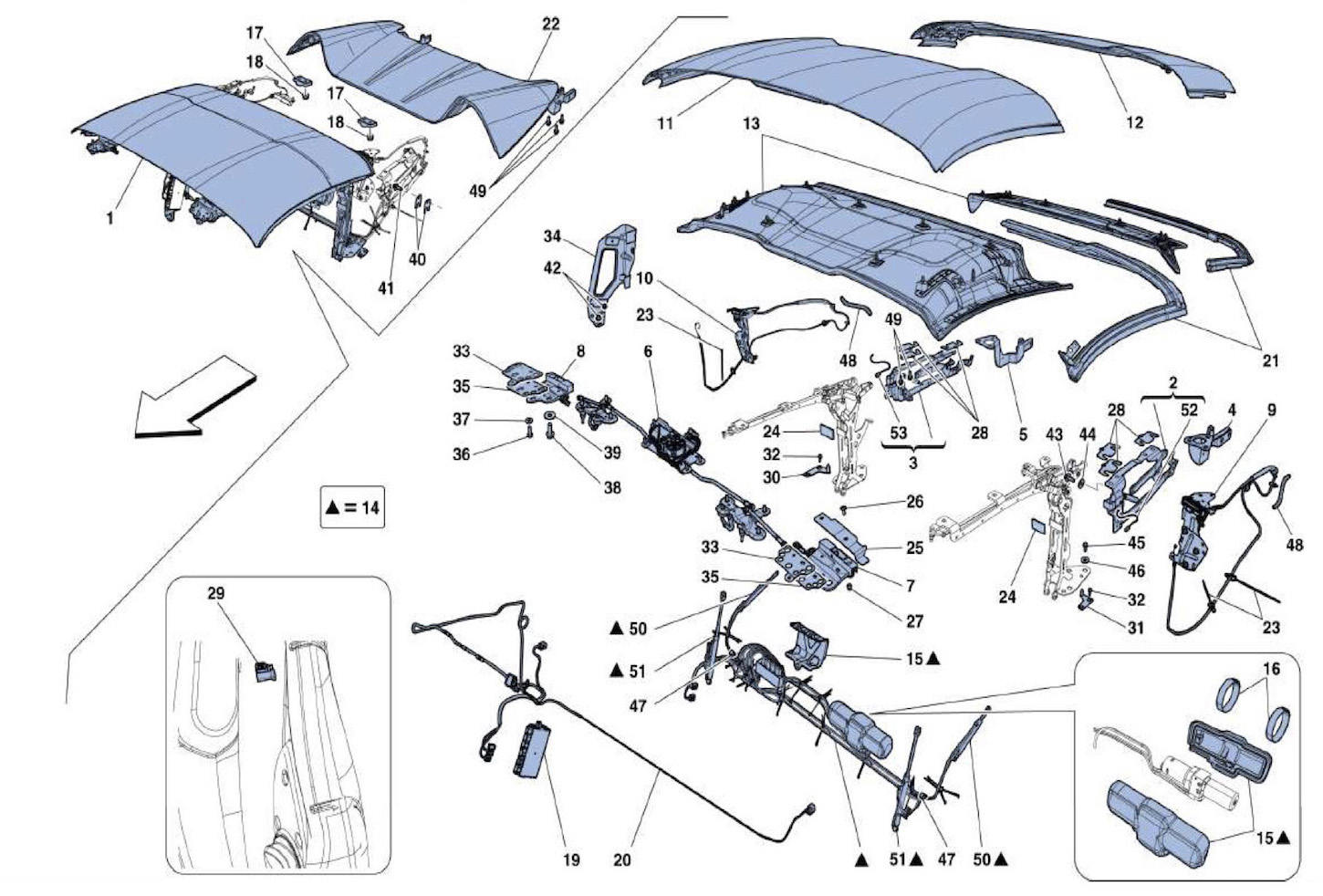

| Location |
Part # |
Quantity* |
Description |
Price |
Add To Cart |
|
1
|
839771..
|
1
|
ROOF ASSEMBLY-PAINTED- -STANDARD- -WITH FABRIC HEADLINER-
|
|
Unavailable
|
|
1
|
839795..
|
1
|
ROOF ASSEMBLY-INTP- -PAINTED- -OPTIONAL- -WITH LEATHER HEADLINER-
|
|
Unavailable
|
|
1
|
839796..
|
1
|
ROOF ASSEMBLY-INTA- -PAINTED- -OPTIONAL- -WITH ALCANTARA HEADLINER-
|
|
Unavailable
|
|
2
|
83977600
|
1
|
LH COVER LIFTER MECHANISM COMPLETE
|
$949.63
|
|
|
3
|
83977700
|
1
|
RH COVER LIFTER MECHANISM COMPLETE
|
$949.63
|
|
|
4
|
86879400
|
1
|
LH HINGE COMPLETE
|
$243.23
|
|
|
5
|
86879500
|
1
|
RH HINGE COMPLETE
|
$243.23
|
|
|
6
|
83977800
|
1
|
LATCH SYSTEM COMPLETE
|
$2,498.81
|
|
|
7
|
83977900
|
1
|
LH STRIKER COMPLETE
|
$408.38
|
|
|
8
|
83978000
|
1
|
RH STRIKER COMPLETE
|
$375.98
|
|
|
9
|
87551100
|
1
|
LH FLAP MECHANISM
|
$758.57
|
|
|
10
|
87646500
|
1
|
RH FLAP MECHANISM
|
$758.57
|
|
|
11
|
83977000
|
1
|
FRONT ROOF ASSEMBLY-UNPAINTED-
|
$7,519.30
|
|
|
12
|
83977300
|
1
|
REAR ROOF ASSEMBLY-UNPAINTED-
|
$6,611.79
|
|
|
13
|
84726100
|
1
|
FRONT AND REAR HEADLINER KIT-STANDARD- -FABRIC-
|
$3,253.38
|
|
|
13
|
847262..
|
1
|
FRONT AND REAR HEADLINER KIT-LEATHER- -OPTIONAL-
|
|
Unavailable
|
|
13
|
847263..
|
1
|
FRONT AND REAR HEADLINER KIT-ALCANTARA- -OPTIONAL-
|
|
Unavailable
|
|
14
|
84603300
|
1
|
HYDRAULIC SYSTEM KIT COMPLETE
|
$10,162.46
|
|
|
15
|
84697900
|
1
|
HYDRAULIC SYSTEM SOUNDPROOFING KIT
|
$375.90
|
|
|
16
|
84603200
|
1
|
HYDRAULIC SYSTEM FASTENER KIT
|
$68.72
|
|
|
17
|
83978100
|
2
|
LH BUMPER COMPLETE
|
$8.00
|
|
|
18
|
13046112
|
4
|
NUT
|
|
Unavailable
|
|
19
|
83979100
|
1
|
ROOF ECU-NO LONGER SUPPLIED- -REPLACED BY 86719000-
|
$2,940.31
|
|
|
19
|
86719000
|
1
|
ROOF ECU
|
$2,800.30
|
|
|
20
|
83979000
|
1
|
WIRE HARNESSES
|
$414.85
|
|
|
21
|
84726500
|
1
|
FRONT AND REAR SEAL KIT
|
$2,430.80
|
|
|
22
|
86473311
|
1
|
TONNEAU COVER
|
$3,812.36
|
|
|
23
|
145854
|
4
|
RING CLAMP 200MM
|
|
Unavailable
|
|
24
|
84706800
|
2
|
ADHESIVE FOAM RUBBER
|
|
Unavailable
|
|
25
|
84643400
|
1
|
LH BRACKET
|
$12.71
|
|
|
25
|
84643500
|
1
|
RH BRACKET
|
$12.71
|
|
|
26
|
65366700
|
4
|
SCREW 5X12-M5 X 12-
|
|
Unavailable
|
|
27
|
168698
|
4
|
NUT 5X11
|
|
Unavailable
|
|
28
|
84807000
|
2
|
SPACER-TH. 0.5 MM-
|
$5.20
|
|
|
28
|
84807100
|
4
|
SPACER-TH. 1 MM-
|
$5.20
|
|
|
28
|
84842000
|
7
|
SPACER-TH. 3 MM-
|
$6.48
|
|
|
29
|
215411
|
2
|
PIPE CLIP
|
|
Unavailable
|
|
30
|
84256000
|
1
|
RH REAR CENTRING PLATE
|
$50.55
|
|
|
31
|
84256100
|
1
|
LH REAR CENTRING PLATE
|
$50.55
|
|
|
32
|
11568124
|
4
|
SCREW 6X20-M6 X 20-
|
|
Unavailable
|
|
33
|
86495900
|
1
|
LH WINDSCREEN STRIKER PLATE
|
$59.62
|
|
|
33
|
86496000
|
1
|
RH WINDSCREEN STRIKER PLATE
|
$59.62
|
|
|
34
|
316338
|
1
|
ECU MOUNTING BRACKET
|
$91.55
|
|
|
35
|
84503800
|
2
|
SHIM KIT FOR ADJUSTING ROOF RELATIVE TO WINDSCREEN
|
$46.65
|
|
|
36
|
14305334
|
4
|
SCREW 6X20-M6 X 20-
|
$0.90
|
|
|
37
|
12646624
|
4
|
WASHER 6.15-15X1.5
|
|
Unavailable
|
|
38
|
16287224
|
6
|
SCREW 8X25-M8 X 16-
|
|
Superseded
|
|
39
|
219344
|
6
|
WASHER D8.5X24X
|
|
Unavailable
|
|
40
|
84508500
|
2
|
TUB LIFTING MECHANISM FASTENER SHIM 0.5
|
$5.48
|
|
|
40
|
84508600
|
2
|
TUB LIFTING MECHANISM FASTENER SHIM 1
|
$5.77
|
|
|
40
|
84508700
|
2
|
TUB LIFTING MECHANISM FASTENER SHIM 1.5
|
$8.24
|
|
|
40
|
85422400
|
2
|
TUB LIFTING MECHANISM FASTENER SHIM 4
|
$3.67
|
|
|
41
|
82271400
|
6
|
SCREW-M8 X 25-
|
$1.46
|
|
|
42
|
14040514
|
5
|
NUT
|
|
Unavailable
|
|
43
|
82271400
|
6
|
SCREW-M8 X 25-
|
$1.46
|
|
|
44
|
219344
|
4
|
WASHER D8.5X24X
|
|
Unavailable
|
|
45
|
16286127
|
4
|
SCREW 6X20-M6 X 20-
|
|
Unavailable
|
|
46
|
12640678
|
4
|
WASHER 6.15X25X2
|
$2.25
|
|
|
47
|
244223
|
2
|
CLIP
|
$5.56
|
|
|
48
|
84975900
|
2
|
BOWDEN CABLE PROTECTOR SPIRA
|
$21.32
|
|
|
49
|
82271400
|
10
|
SCREW-M8 X 25-
|
$1.46
|
|
|
50
|
70003528
|
1
|
CYLINDER COVER KIT
|
$2,268.75
|
|
|
51
|
70003529
|
1
|
ROOF PISTON KIT
|
$2,528.04
|
|
|
52
|
88035900
|
1
|
CABLE HARNESS WITH LH COVER LIFT SENSOR COMPLETE
|
$341.18
|
|
|
53
|
88036000
|
1
|
CABLE HARNESS WITH RH COVER LIFT SENSOR COMPLETE
|
$395.83
|
|
* Quantity shown indicates the number of pieces used in the diagram.
