PASSENGER COMPARTMENT CARPETS

Go to Split View

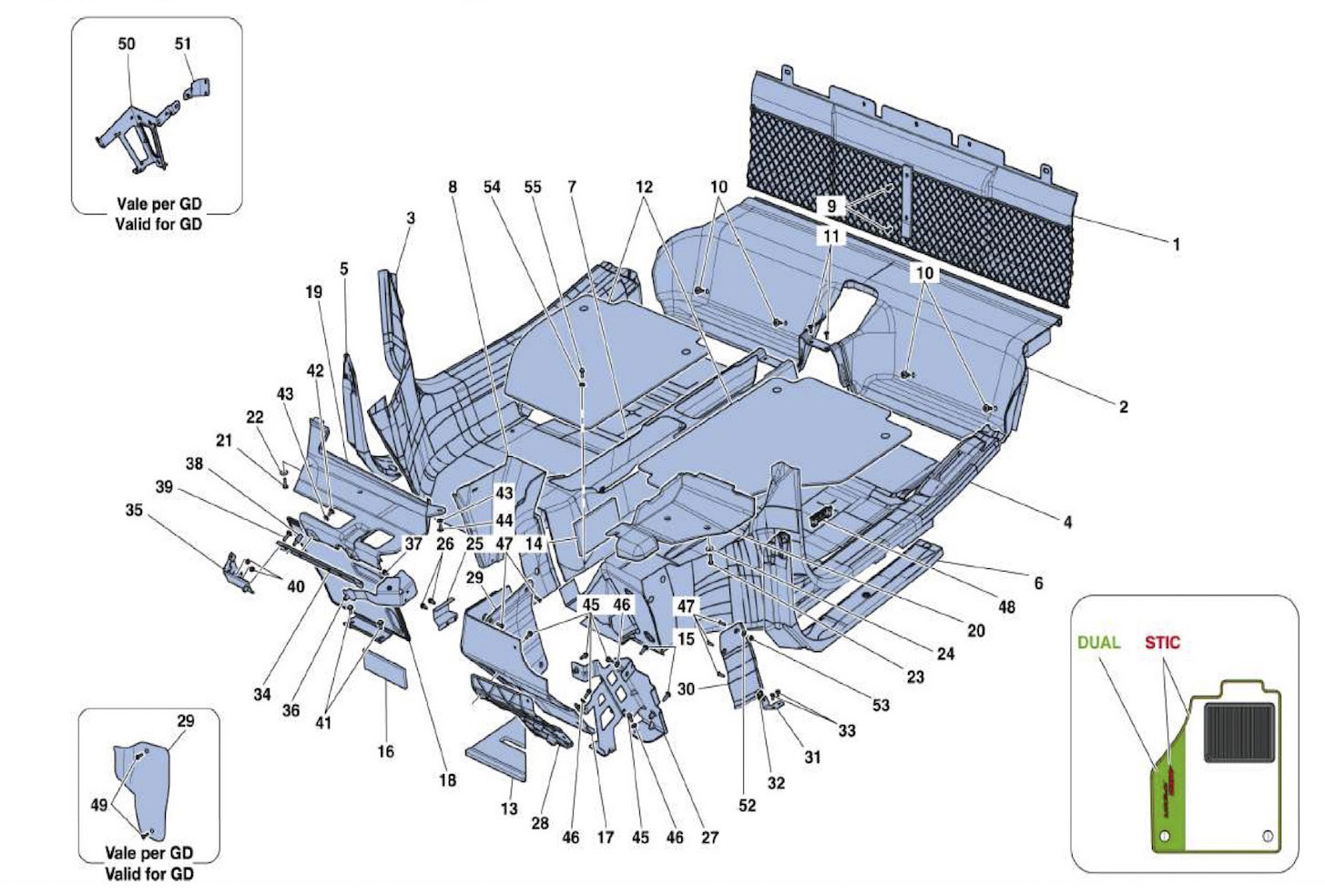

PASSENGER COMPARTMENT CARPETS

Location Part # Quantity* Description Price Add To Cart
1 86732000 1 REAR VERTICAL WALL TRIM COMPLETE-1MAT- -MAT- - 1MAT - MAT $907.49
1 87499200 1 REAR VERTICAL WALL TRIM COMPLETE-INTP- -LEATHER- - INTP - LEATHER Unavailable
1 87499400 1 REAR VERTICAL WALL TRIM COMPLETE-INTA- -ALCANTARA- - INTA - ALCANTARA Unavailable
2 86421700 1 REAR BENCH MAT-1MAT- -MAT- $1,296.42
2 87304200 1 REAR BENCH MAT-INTP- -LEATHER- -VERSION WITH LOWER CENTRE TUNNEL CONSOLE IN LEATHER- -CODE NOT CURRENTLY ORDERABLE- Unavailable
2 87350000 1 REAR BENCH MAT-INTA- -ALCANTARA- -VERSION WITH LOWER CENTRE TUNNEL CONSOLE IN ALCANTARA- -CODE NOT CURRENTLY ORDERABLE- Unavailable
3 86578100 1 RH FLOOR MAT LHD-1MAT- -MAT- -NOT FOR GOLFO, GD- Unavailable
3 87348300 1 RH FLOOR MAT LHD-1MAT- -MAT- -VERSION WITH EXTINGUISHER- -NOT FOR GD- Unavailable
3 87186800 1 RH FLOOR MAT RHD-1MAT- -MAT- -APPLICABLE FOR GD- Unavailable
4 86154600 1 LH FLOOR MAT LHD-1MAT- -MAT- -NOT FOR GD- - 1MAT - MAT $3,889.30
4 86495600 1 LH FLOOR MAT-1MAT- -MAT- -APPLICABLE FOR GOLFO- Unavailable
4 87186300 1 LH FLOOR MAT RHD-1MAT- -MAT- -VERSION WITH EXTINGUISHER- -APPLICABLE FOR GD- - VERSION WITH EXTINGUISHER - APPLICABLE FOR GD $10,101.97
4 87186600 1 LH FLOOR MAT RHD-1MAT- -MAT- -APPLICABLE FOR GD- $3,889.30
5 84097200 1 RH SILL PAD LHD-NOT FOR GD- $64.27
5 84097400 1 RH SILL PAD RHD-APPLICABLE FOR GD- $94.31
6 84097300 1 LH SILL PAD LHD-NOT FOR GD- $68.67
6 84097500 1 LH SILL PAD RHD-APPLICABLE FOR GD- $77.97
7 86495400 1 REAR TUNNEL TRIM-1MAT- -MAT- $648.22
7 87304100 1 REAR TUNNEL TRIM-INTP- -LEATHER- -CODE NOT CURRENTLY ORDERABLE- Unavailable
7 87350100 1 REAR TUNNEL TRIM-INTA- -ALCANTARA- -CODE NOT CURRENTLY ORDERABLE- Unavailable
8 87510100 1 FRONT TUNNEL TRIM LHD-1MAT- -MAT- -NOT FOR GD- $427.82
8 87510900 1 FRONT TUNNEL TRIM LHD-INTP- -LEATHER- -CODE NOT CURRENTLY ORDERABLE- -NOT FOR GD- - INTP - LEATHER - CODE NOT CURRENTLY ORDERABLE Unavailable
8 87466000 1 FRONT TUNNEL TRIM RHD-1MAT- -MAT- -APPLICABLE FOR GD- Unavailable
8 87465800 1 FRONT TUNNEL TRIM RHD-INTP- -LEATHER- -CODE NOT CURRENTLY ORDERABLE- -APPLICABLE FOR GD- Unavailable
9 86077300 2 SCREW Unavailable
10 83956900 4 SCREW $7.69
11 13311177 2 SCREW Unavailable
12 832360.. 1 REMOVABLE MAT KIT-MAT- -NOT FOR GOLFO, GD- Unavailable
12 832363.. 1 REMOVABLE MAT KIT-MAT- -VERSION WITH EXTINGUISHER- -NOT FOR GD- Unavailable
12 836347.. 1 REMOVABLE MAT KIT-MAT- -APPLICABLE FOR GD- Unavailable
12 839131.. 1 REMOVABLE MAT KIT-MAT- -VERSION WITH EXTINGUISHER- -APPLICABLE FOR GD- Unavailable
12 87528200 1 REMOVABLE MAT KIT-1MAT- -MAT- -VERSION WITH LOGO- -DUAL- -STIC- -1MAT FOR MAT COLOUR SELECTION, DUAL FOR COLOUR OF PIPING AND EDGE INSERT, AND STIC FOR COLOUR OF LOGO STITCHING (SEE IMAGE)- -NOT FOR GOLFO, GD- -NO LONGER SUPPLIED- -REPLACED BY 881110 Unavailable
12 87528300 1 REMOVABLE MAT KIT-1MAT- -MAT- -VERSION WITH LOGO- -VERSION WITH EXTINGUISHER- -DUAL- -STIC- -1MAT FOR MAT COLOUR SELECTION, DUAL FOR COLOUR OF PIPING AND EDGE INSERT, AND STIC FOR COLOUR OF LOGO STITCHING (SEE IMAGE)- -NOT FOR GD- -NO LONGER SUPPLIED Unavailable
12 88111000 1 REMOVABLE MAT KIT-1MAT- -MAT- -VERSION WITH LOGO- -DUAL- -STIC- -1MAT FOR MAT COLOUR SELECTION, DUAL FOR COLOUR OF PIPING AND EDGE INSERT, AND STIC FOR COLOUR OF LOGO STITCHING (SEE IMAGE)- -NOT FOR GOLFO, GD- $1,543.88
12 88111100 1 REMOVABLE MAT KIT-1MAT- -MAT- -VERSION WITH LOGO- -VERSION WITH EXTINGUISHER- -DUAL- -STIC- -1MAT FOR MAT COLOUR SELECTION, DUAL FOR COLOUR OF PIPING AND EDGE INSERT, AND STIC FOR COLOUR OF LOGO STITCHING (SEE IMAGE)- -NOT FOR GD- $1,543.88
12 88111400 1 REMOVABLE MAT KIT-1MAT- -MAT- -VERSION WITH LOGO- -DUAL- -STIC- -1MAT FOR MAT COLOUR SELECTION, DUAL FOR COLOUR OF PIPING AND EDGE INSERT, AND STIC FOR COLOUR OF LOGO STITCHING (SEE IMAGE)- -APPLICABLE FOR GD- $1,621.08
12 88111600 1 REMOVABLE MAT KIT-1MAT- -MAT- -VERSION WITH LOGO- -VERSION WITH EXTINGUISHER- -DUAL- -STIC- -1MAT FOR MAT COLOUR SELECTION, DUAL FOR COLOUR OF PIPING AND EDGE INSERT, AND STIC FOR COLOUR OF LOGO STITCHING (SEE IMAGE)- -APPLICABLE FOR GD- $1,543.88
13 87510200 1 DRIVER SIDE FLOOR ETHOFOAM-NOT FOR GD- $13.46
14 87510300 1 DRIVER SIDE TUNNEL ETHOFOAM $9.52
15 66091000 2 SCREW Unavailable
16 142798 1 RUBBER SHIM-STANDARD- $1.71
17 87511000 1 ACCELERATOR PEDAL GUARD LHD-1MAT- -MAT- -NOT FOR GD- $388.93
17 827927.. 1 ACCELERATOR PEDAL GUARD-MAT- -APPLICABLE FOR GD- Unavailable
18 842591.. 1 PASSENGER SIDE FOOTREST-MAT- -NOT FOR GD- Unavailable
18 87548600 1 PASSENGER SIDE FOOTREST RHD-MAT- -1MAT- -APPLICABLE FOR GD- Unavailable
19 86578300 1 RH UNDERDASHBOARD SHIELD LHD-1MAT- -MAT- -NOT FOR GD- - 1MAT - MAT - NOT FOR GD $388.93
19 87541700 1 RH UNDERDASHBOARD SHIELD RHD-1MAT- -MAT- -APPLICABLE FOR GD- Unavailable
20 86578400 1 LH UNDERDASHBOARD SHIELD LHD-1MAT- -MAT- -NOT FOR GD- - 1MAT - MAT - NOT FOR GD $388.93
20 87541600 1 LH UNDERDASHBOARD SHIELD RHD-1MAT- -MAT- -APPLICABLE FOR GD- $1,373.76
21 64830600 2 SCREW 6X22-M6 X 22- - WASHER USE 12605374 Unavailable
22 12647727 2 WASHER 6X21 Unavailable
23 85833900 2 SCREW-M5 X 16- Unavailable
24 12647727 2 WASHER 6X21 Unavailable
25 87499000 1 AIRBAG ECU CONNECTION GUARD-NOT FOR GOLFO- $9.87
26 11584821 2 SCREW-NOT FOR GD- $5.18
27 85184000 1 DRIVER SIDE FOOTREST MOUNTING BRACKET LHD-NOT FOR GD- $123.14
27 84293400 1 DRIVER SIDE FOOTREST MOUNTING BRACKET RHD-APPLICABLE FOR GD- $74.91
28 83868700 1 REINFORCEMENT PLATE RHD $35.67
29 85853400 1 RH DRIVER SIDE STAINLESS STEEL COSMETIC COVER LHD-NOT FOR GD- $25.15
29 83029100 1 RH DRIVER SIDE STAINLESS STEEL COSMETIC COVER RHD-APPLICABLE FOR GD- $51.87
30 82679200 1 LH DRIVER SIDE STAINLESS STEEL COSMETIC COVER LHD-NOT FOR GD- $22.13
31 82925800 1 LH COSMETIC COVER FASTENER BRACKET-NOT FOR GD- $12.32
32 66927700 1 BRACKET WITH COLLAR $1.32
33 85692200 2 SCREW 5X12-M5 X 12- Unavailable
34 87549500 1 FOOTREST MOUNTING BRACKET-NOT FOR USA, CDN, USA LIGHT- $49.37
34 87837700 1 FOOTREST MOUNTING BRACKET-APPLICABLE FOR USA, CDN, USA LIGHT- $49.37
35 83216100 1 RH TUBE FASTENER BRACKET LHD-NOT FOR USA, CDN, GD, USA LIGHT- $45.39
35 87837800 1 RH TUBE FASTENER BRACKET-APPLICABLE FOR USA, CDN, USA LIGHT- $62.83
35 87500300 1 RH TUBE FASTENER BRACKET RHD-APPLICABLE FOR GD- $110.39
36 83216200 1 LH TUBE FASTENER BRACKET LHD-NOT FOR GD- $70.01
36 83216400 1 LH TUBE FASTENER BRACKET RHD-APPLICABLE FOR GD- $44.48
37 16285124 2 SCREW 5X16-M5 X 16- Unavailable
38 212519 1 STUD BOLT $7.61
39 81911600 2 SCREW-M6 X 22- $0.90
40 14059111 2 NUT M5 Unavailable
41 11625714 2 SCREW 6X16-M6 X 16- Unavailable
42 85833700 2 SCREW 5X14-M5 X 14- Unavailable
43 12644401 3 WASHER Superseded
44 85692200 1 SCREW 5X12-M5 X 12- Unavailable
45 16285124 8 SCREW 5X16-M5 X 16- Unavailable
46 12638124 5 WASHER $0.90
47 13311117 7 SCREW Unavailable
48 69987700 2 MAT FASTENER PROFILE $16.75
49 13311477 2 SCREW 5X25-M5 X 25- -APPLICABLE FOR GD- Unavailable
50 84293500 1 BRACKET RHD-APPLICABLE FOR GD- $88.93
51 87186900 1 SUPPORT BRACKET CONNECTOR-APPLICABLE FOR GD- Unavailable
52 12640678 2 WASHER 6.15X25X2 $2.25
53 14059111 2 NUT M5 Unavailable
54 13337507 8 WASHER D.5.2 $1.71
55 13310877 8 SCREW 5X12 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
