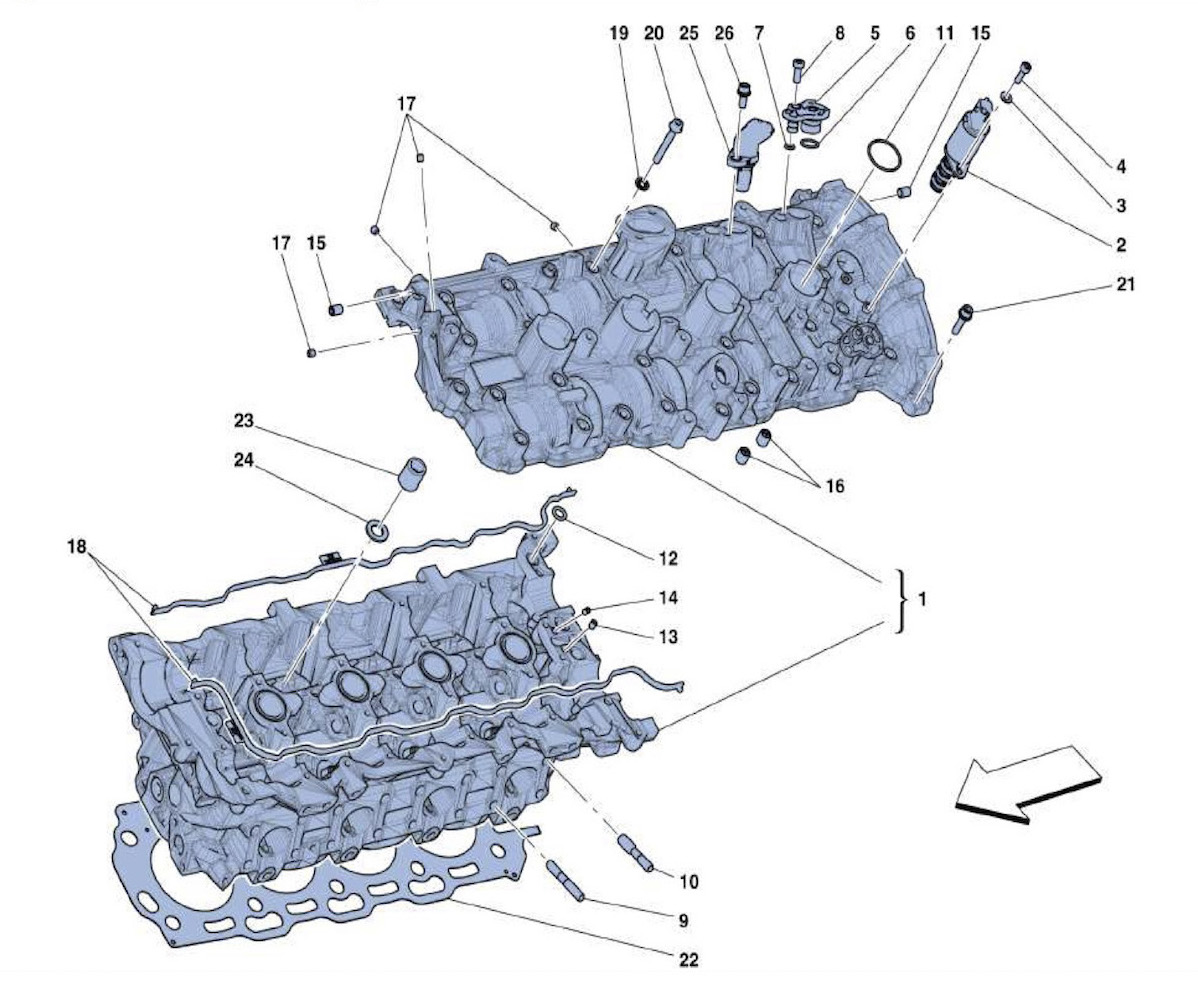

LEFT CYLINDER HEAD

Go to Split View

LEFT CYLINDER HEAD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 322085 *Qty: 1 LH CYLINDER HEAD Unavailable
Location: 2 Prev | Next Part: 296017 *Qty: 2 OIL PRESSURE REGULATOR VALVE $212.08
Location: 3 Prev | Next Part: 11181574 *Qty: 2 WASHER Unavailable
Location: 4 Prev | Next Part: 14304224 *Qty: 2 SCREW 5X16 Unavailable
Location: 5 Prev | Next Part: 287024 *Qty: 2 CAP $8.57
Location: 6 Prev | Next Part: 14453281 *Qty: 4 O RING GASKET $1.54
Location: 7 Prev | Next Part: 14452781 *Qty: 4 GASKET Unavailable
Location: 8 Prev | Next Part: 13026924 *Qty: 2 SCREW 6X14 Unavailable
Location: 9 Prev | Next Part: 307168 *Qty: 6 STUD BOLT $2.63
Location: 10 Prev | Next Part: 306320 *Qty: 4 STUD BOLT $3.61
Location: 11 Prev | Next Part: 166657 *Qty: 4 STUD BOLT D.29,8 Unavailable
Location: 12 Prev | Next Part: 127816 *Qty: 1 SEALING RING $4.07
Location: 13 Prev | Next Part: 256827 *Qty: 1 DOWEL $6.56
Location: 14 Prev | Next Part: 226414 *Qty: 1 GRUB SCREW $8.24
Location: 15 Prev | Next Part: 277903 *Qty: 2 CAP Unavailable
Location: 16 Prev | Next Part: 200458 *Qty: 2 NON RETURN VALVE $8.70
Location: 17 Prev | Next Part: 199760 *Qty: 4 THREADED PLUG D 6X1 $0.90
Location: 18 Prev | Next Part: 295062 *Qty: 1 CAM COVER GASKET Unavailable
Location: 19 Prev | Next Part: 296075 *Qty: 30 WASHER $1.43
Location: 20 Prev | Next Part: 296759 *Qty: 30 SCREW Unavailable
Location: 21 Prev | Next Part: 231620 *Qty: 3 SCREW 6X25-M6 X 25- Unavailable
Location: 22 Prev | Next Part: 278646 *Qty: 1 HEAD GASKET $145.91
Location: 23 Prev | Next Part: 271125 *Qty: 10 NUT $8.68
Location: 24 Prev | Next Part: 271129 *Qty: 10 WASHER $1.45
Location: 25 Prev | Next Part: 224573 *Qty: 2 PHASE SENSOR $36.56
Location: 26 Prev | Next Part: 231617 *Qty: 2 SCREW 6X18-M6 X 18- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
