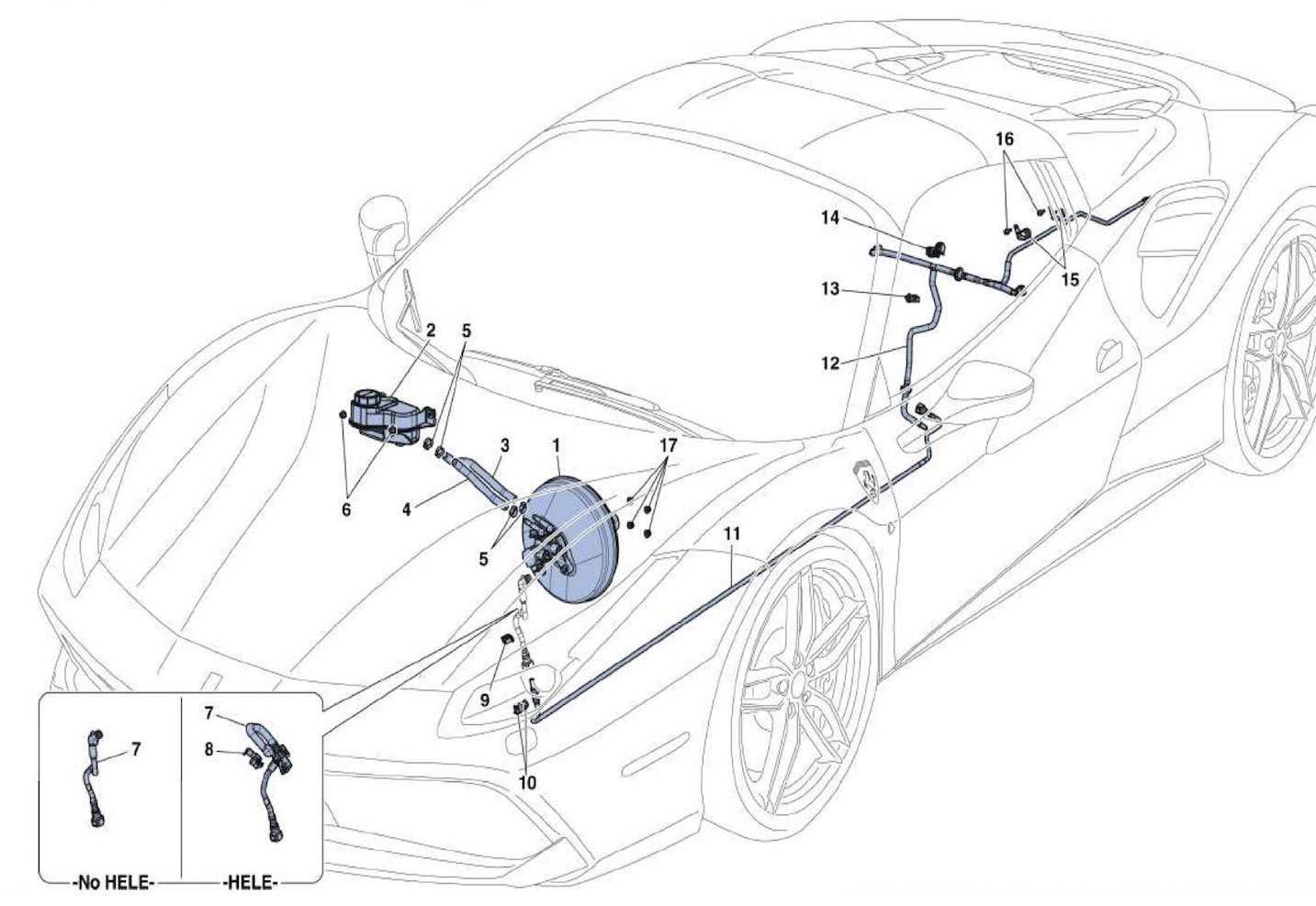

HYDRAULIC BRAKE SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 244010 1 BRAKE SERVO WITH PUMP COMPLETE LHD-NOT FOR GD- Unavailable
1 248907 1 BRAKE SERVO WITH PUMP COMPLETE RHD-APPLICABLE FOR GD- $563.16
2 259047 1 BRAKE FLUID RESERVOIR $46.10
3 238606 1 RUBBER PIPE LHD-NOT FOR GD- $23.14
3 262569 1 RUBBER PIPE RHD-APPLICABLE FOR GD- $71.29
4 238607 1 RUBBER PIPE LHD-NOT FOR GD- $21.80
4 262570 1 RUBBER PIPE RHD-APPLICABLE FOR GD- $71.29
5 13432070 4 SCREW COLLAR D15.7MM Unavailable
6 14040611 2 NUT M6 $2.25
7 263409 1 FRONT VACUUM PIPE COMPLETE LHD-NOT FOR HELE- -NOT FOR GD- $222.73
7 262431 1 FRONT VACUUM PIPE COMPLETE RHD-NOT FOR HELE- -APPLICABLE FOR GD- $43.42
7 273670 1 FRONT VACUUM PIPE COMPLETE LHD-APPLICABLE FOR HELE- -NOT FOR GD- $220.40
7 275505 1 FRONT VACUUM PIPE COMPLETE RHD-APPLICABLE FOR HELE- -APPLICABLE FOR GD- $136.72
8 204777 1 CLIP-APPLICABLE FOR HELE- -NOT FOR GD- Unavailable
9 250733 1 CLIP $1.06
10 140130 2 CLIP $0.90
11 305757 1 UNDERBODY BRAKE SERVO VACUUM-NO LONGER SUPPLIED- -REPLACED BY 320099- Unavailable
11 320099 1 UNDERBODY BRAKE SERVO VACUUM $43.42
12 315060 1 DEPRESSOR CONNECTOR PIPE $317.76
13 191904 1 CLIP Unavailable
14 319839 1 CLIP $1.79
15 318111 2 BRACKET WITH SHEATH LHD-NOT FOR GD- $15.08
15 172842 2 BRACKET WITH SHEATH RHD-APPLICABLE FOR GD- $9.30
16 231616 2 SCREW 6X14-M6 X 14- Unavailable
17 12578211 4 NUT Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
