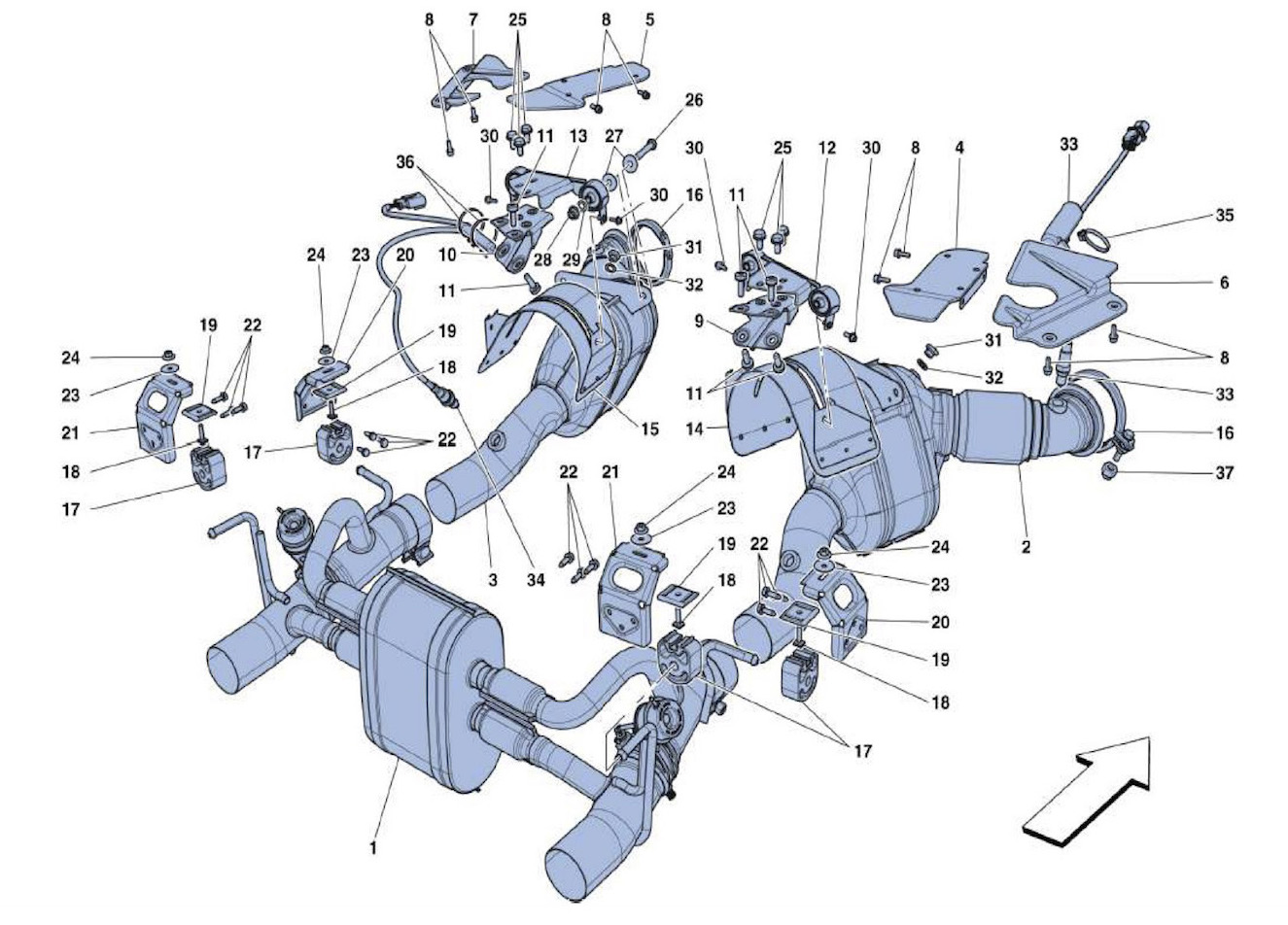

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 324752 *Qty: 1 CENTRAL SILENCER-NO LONGER SUPPLIED- -REPLACED BY 327047- Unavailable
Location: 1 Prev | Next Part: 327047 *Qty: 1 CENTRAL SILENCER Unavailable
Location: 2 Prev | Next Part: 321608 *Qty: 1 RH CATALYTIC CONVERTER COMPLETE $7,180.84
Location: 3 Prev | Next Part: 321609 *Qty: 1 LH CATALYTIC CONVERTER COMPLETE $7,180.84
Location: 4 Prev | Next Part: 319368 *Qty: 1 RH CATALYTIC CONVERTER HEAT SHIELD $75.68
Location: 5 Prev | Next Part: 319369 *Qty: 1 LH CATALYTIC CONVERTER HEAT SHIELD $75.68
Location: 6 Prev | Next Part: 319366 *Qty: 1 RH CHASSIS TURBO HEAT SHIELD $59.84
Location: 7 Prev | Next Part: 319367 *Qty: 1 LH CHASSIS TURBO HEAT SHIELD $59.84
Location: 8 Prev | Next Part: 231617 *Qty: 8 SCREW 6X18-M6 X 18- Unavailable
Location: 9 Prev | Next Part: 300595 *Qty: 1 RH CATALYTIC CONVERTER BRACKET $96.58
Location: 10 Prev | Next Part: 300596 *Qty: 1 LH CATALYTIC CONVERTER BRACKET $96.58
Location: 11 Prev | Next Part: 216575 *Qty: 8 SCREW $1.32
Location: 12 Prev | Next Part: 305308 *Qty: 1 RH BRACKET COMPLETE WITH BUSHES $146.25
Location: 13 Prev | Next Part: 305310 *Qty: 1 LH BRACKET COMPLETE WITH BUSHES $146.25
Location: 14 Prev | Next Part: 320008 *Qty: 1 RH CATALYTIC CONVERTER SHIELD $125.84
Location: 15 Prev | Next Part: 320009 *Qty: 1 LH CATALYTIC CONVERTER SHIELD $125.84
Location: 16 Prev | Next Part: 256884 *Qty: 2 RING CLAMP-NO LONGER SUPPLIED- -REPLACED BY 324642- $44.58
Location: 16 Prev | Next Part: 324642 *Qty: 2 RING CLAMP $44.94
Location: 17 Prev | Next Part: 239798 *Qty: 4 BUFFER FOR SUPPORT $61.07
Location: 18 Prev | Next Part: 283425 *Qty: 4 SCREW SQUARED HEAD 6X18.5 $2.89
Location: 19 Prev | Next Part: 240598 *Qty: 4 PLUG $13.42
Location: 20 Prev | Next Part: 303052 *Qty: 2 SILENCER MOUNTING BRACKET $62.27
Location: 21 Prev | Next Part: 304317 *Qty: 2 SILENCER MOUNTING BRACKET $41.36
Location: 22 Prev | Next Part: 11585024 *Qty: 12 SCREW 6X20 Unavailable
Location: 23 Prev | Next Part: 12648978 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 14039614 *Qty: 4 FLANGE NUT Unavailable
Location: 25 Prev | Next Part: 11627826 *Qty: 6 SCREW 8X18 $1.13
Location: 26 Prev | Next Part: 16044321 *Qty: 4 SCREW 8X55 Unavailable
Location: 27 Prev | Next Part: 13578324 *Qty: 8 WASHER 8.15-24X Unavailable
Location: 28 Prev | Next Part: 14059311 *Qty: 4 NUT Unavailable
Location: 29 Prev | Next Part: 12601374 *Qty: 4 WAVY WASHER 8MM Unavailable
Location: 30 Prev | Next Part: 256323 *Qty: 4 SCREW 5X16-M5 X 16- Unavailable
Location: 31 Prev | Next Part: 110860 *Qty: 2 MANIFOLD BLANKING PLUG $16.63
Location: 32 Prev | Next Part: 10298460 *Qty: 2 COPPER WASHER $0.90
Location: 33 Prev | Next Part: 292582 *Qty: 2 FRONT OXYGEN SENSOR $227.07
Location: 34 Prev | Next Part: 300507 *Qty: 2 REAR OXYGEN SENSOR $97.33
Location: 35 Prev | Next Part: 217854 *Qty: 2 CLIP 170MM Unavailable
Location: 36 Prev | Next Part: 217854 *Qty: 4 CLIP 170MM Unavailable
Location: 37 Prev | Next Part: 292945 *Qty: 2 NUT Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
