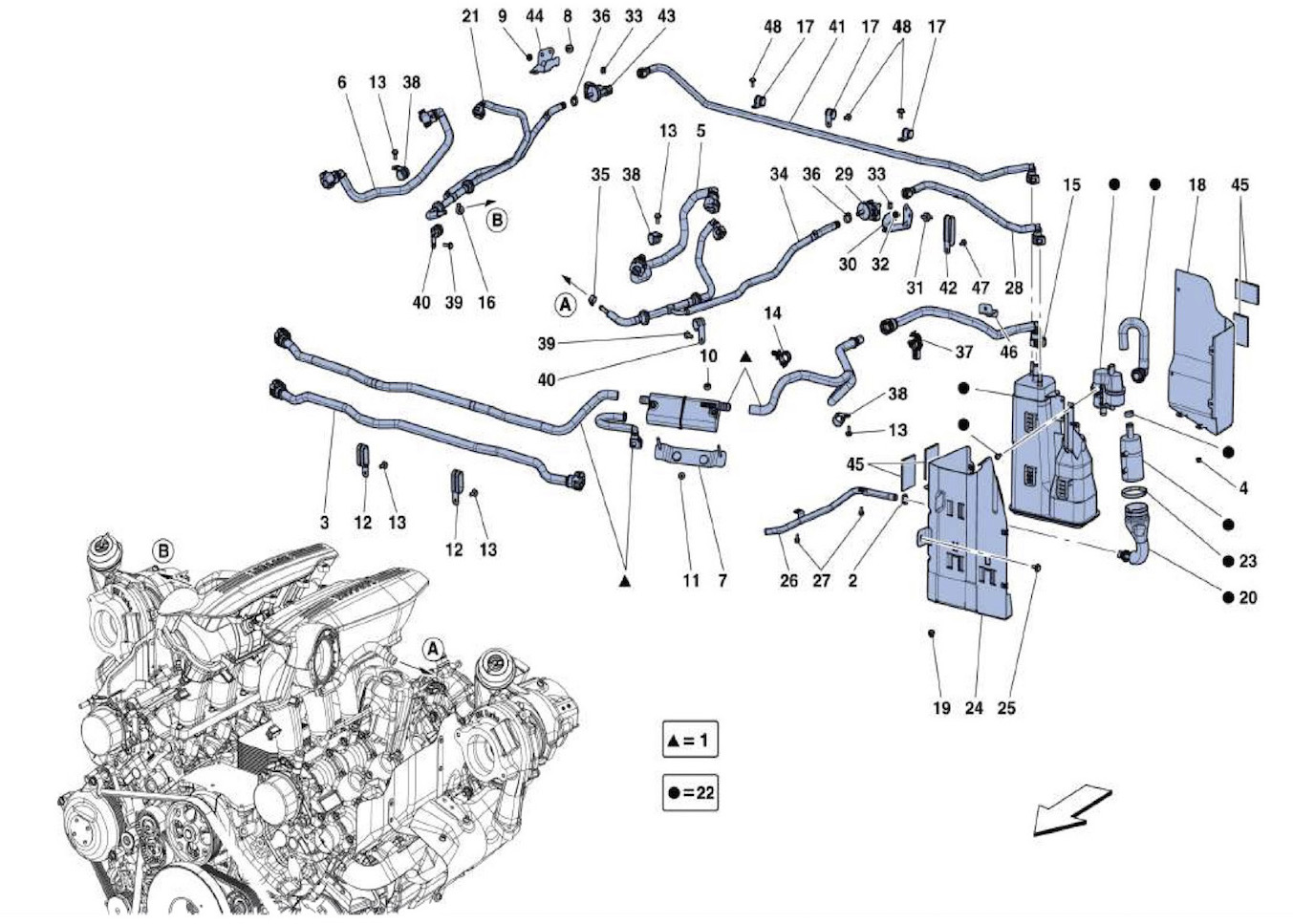

EVAPORATIVE EMISSINS CONTROL

Location Part # Quantity* Description Price Add To Cart
1 314011 1 VAPOUR SEPARATOR COMPLETE $414.10
2 10716470 1 COLLAR $1.81
3 315903 1 TANK AIR BUBBLE CONNECTOR PIPE Unavailable
4 14040514 2 NUT Unavailable
5 319787 1 LH INLET PIPE $103.23
6 319789 1 RH INLET PIPE $103.23
7 314613 1 BRACKET $27.83
8 225408 2 CYLINDRICAL BUSHING $9.14
9 14040614 2 NUT 6MM Unavailable
10 14039511 2 NUT Unavailable
11 14040614 2 NUT 6MM Unavailable
12 181268 2 BRACKET $20.69
13 11625714 6 SCREW 6X16-M6 X 16- Unavailable
14 239094 1 CLIP $1.48
15 310825 1 PIPE FROM DISCONNECTER TO CANISTER $106.82
16 13125570 1 COLLAR-NO LONGER SUPPLIED- -REPLACED BY 13432070- $2.11
16 13432070 1 SCREW COLLAR D15.7MM Unavailable
17 290424 3 BRACKET WITH SHEATH D16MM Unavailable
18 310845 1 CANISTER SHIELD Unavailable
19 85691900 4 SCREW 5X8-M5 X 8- Unavailable
20 310848 1 CAP $58.65
21 319788 1 RH FLUSH VALVE PIPE $331.21
22 313209 1 VAPOUR FILTER COMPLETE $828.22
23 13434170 1 COLLAR $32.07
24 310836 1 BRACKET Unavailable
25 81591700 3 SCREW 6X18-M6 X 18- $2.88
26 310838 1 OBD AIR FILTER INLET PIPE $117.31
27 231616 2 SCREW 6X14-M6 X 14- Unavailable
28 310826 1 PIPE FROM CANISTER TO LEFT VALVE $86.17
29 254425 1 FLUSH VALVE $55.20
30 312143 1 LH FLUSH VALVE MOUNTING BRACKET $15.25
31 225408 2 CYLINDRICAL BUSHING $9.14
32 14040614 2 NUT 6MM Unavailable
33 254427 2 CLIP Unavailable
34 319786 1 LH FLUSH VALUE PIPE $331.21
35 13125570 1 COLLAR-NO LONGER SUPPLIED- -REPLACED BY 13432070- $2.11
35 13432070 1 SCREW COLLAR D15.7MM Unavailable
36 13434670 2 SCREW COLLAR D16.2MM Unavailable
37 266156 3 CLIP Unavailable
38 10441690 4 CLAMP D18MM $2.72
39 11625824 4 SCREW 6X18-M6 X 18- Unavailable
40 305724 4 BRACKET $6.03
41 310829 1 PIPE FROM CANISTER TO RIGHT $207.04
42 248454 1 BRACKET WITH SHEATH $10.80
43 254425 1 FLUSH VALVE $55.20
44 312144 1 RH FLUSH VALVE MOUNTING BRACKET $15.25
45 255515 4 ZAGATO SEAL $1.93
46 87805300 1 LH EVAP. EM. CONTROL SYSTEM $5.61
47 11570024 1 SCREW 6X22-M6 X 22- Unavailable
48 11568124 3 SCREW 6X20-M6 X 20- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
