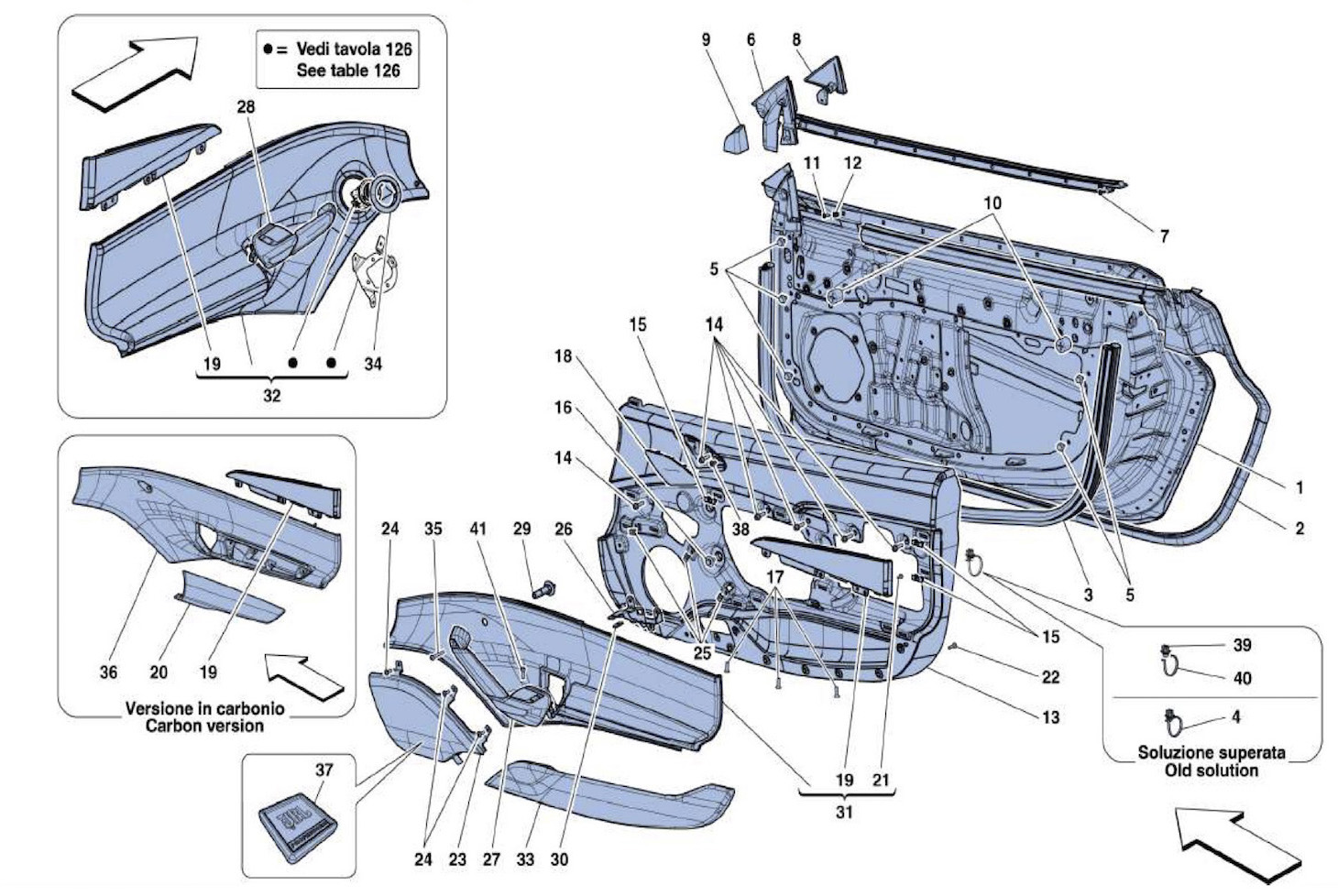

DOORS – STRUCTURE AND TRIMS

Go to Split View

DOORS – STRUCTURE AND TRIMS

Location Part # Quantity* Description Price Add To Cart
1 86087511 1 RH DOOR STRUCTURE COMPLETE LHD-NOT FOR CINA, USA, CDN, GOLFO, GD, USA LIGHT- $5,888.28
1 86087611 1 LH DOOR STRUCTURE COMPLETE LHD-NOT FOR CINA, USA, CDN, GOLFO, GD, USA LIGHT- $5,888.28
1 86885411 1 LH DOOR STRUCTURE COMPLETE RHD-APPLICABLE FOR GD- $6,525.11
1 86885511 1 RH DOOR STRUCTURE COMPLETE RHD-APPLICABLE FOR GD- $6,214.38
1 87281111 1 RH DOOR STRUCTURE COMPLETE-APPLICABLE FOR CINA, USA, CDN, GOLFO, USA LIGHT- $5,845.63
1 87281211 1 LH DOOR STRUCTURE COMPLETE-APPLICABLE FOR CINA, USA, CDN, GOLFO, USA LIGHT- $5,845.63
2 86743000 1 LH DOOR INNER PERIMETER SEAL-NOT FOR CINA, USA, CDN, GOLFO, USA LIGHT- $416.90
2 86743100 1 RH DOOR INNER PERIMETER SEAL-NOT FOR CINA, USA, CDN, GOLFO, USA LIGHT- $397.05
2 87627000 1 RH DOOR INNER PERIMETER SEAL-APPLICABLE FOR CINA, USA, CDN, GOLFO, USA LIGHT- $473.09
2 87627100 1 LH DOOR INNER PERIMETER SEAL-APPLICABLE FOR CINA, USA, CDN, GOLFO, USA LIGHT- $473.09
3 83987400 2 LOWER SEAL $162.54
4 69708300 2 CLIP-NO LONGER SUPPLIED- $1.56
5 82672700 10 FIXING CLIP $1.06
5 86004700 2 CLIP Unavailable
6 86742800 1 LH DOOR OUTER PERIMETER SEAL $354.80
6 86742900 1 RH DOOR OUTER PERIMETER SEAL $337.91
7 63343400 2 SCREW $3.17
8 81486300 1 RH DOOR CORNER TRIANGLE $127.77
8 81486500 1 LH DOOR CORNER TRIANGLE $127.77
9 86716600 1 LH DOOR INNER CORNER TRIANGLE TRIM $42.18
9 86726400 1 RH DOOR INNER CORNER TRIANGLE TRIM $42.18
10 83888400 4 DOOR ALIGNMENT FOAM PAD Unavailable
11 15689801 16 SCREW Unavailable
12 14115885 16 FIXING BLOCK Unavailable
13 87820100 1 LH DOOR PANEL-INTP- -LEATHER- -HIGH POWER HI-FI VERSION- - INTP - LEATHER - HIGH POWER HI-FI VERSION Unavailable
13 87820500 1 LH DOOR PANEL-INTP- -LEATHER- -STANDARD- - INTP - LEATHER - STANDARD Unavailable
13 87820800 1 RH DOOR PANEL-INTP- -LEATHER- -HIGH POWER HI-FI VERSION- - INTP - LEATHER - HIGH POWER HI-FI VERSION $5,315.62
13 87821200 1 RH DOOR PANNEL-INTP- -LEATHER- -STANDARD- Unavailable
14 231620 12 SCREW 6X25-M6 X 25- Unavailable
15 68700200 38 FIXING CLIP-NO LONGER SUPPLIED- Unavailable
16 81290900 2 SCREW 6X20X22 Unavailable
17 14441434 6 ALLEN HEAD COUNTER SUNK SCREW 6X20 Unavailable
18 87363700 1 LH TWEETER SURROUND-STANDARD- -APPLICABLE FROM ASS. NO. 133503- - STANDARD - APPLICABLE FROM ASS. NO. 133503 $130.06
18 87364300 1 RH TWEETER SURROUND-STANDARD- -APPLICABLE FROM ASS. NO. 133503- - STANDARD - APPLICABLE FROM ASS. NO. 133503 $130.06
18 87514000 1 LH TWEETER SURROUND-APPLICABLE UP TO ASS. NO. 133502- $122.08
18 87514000 1 LH TWEETER SURROUND-HIGH POWER HI-FI VERSION- -APPLICABLE FROM ASS. NO. 133503- $122.08
18 87514200 1 RH TWEETER SURROUND-APPLICABLE UP TO ASS. NO. 133502- $122.08
18 87514200 1 RH TWEETER SURROUND-HIGH POWER HI-FI VERSION- -APPLICABLE FROM ASS. NO. 133503- $122.08
19 86916400 1 LH UPPER DOOR CAR-INTA- -ALCANTARA- Unavailable
19 86917700 1 RH UPPER DOOR CARD-INTA- -ALCANTARA- - INTA - ALCANTARA $514.32
20 87168000 1 LH ARMREST COMPLETE-INTP- -LEATHER- -CARBON CENTRE DOOR CARD SUBSTRUCTURE- $789.89
20 87169500 1 RH ARMREST COMPLETE-INTP- -LEATHER- -CARBON CENTRE DOOR CARD SUBSTRUCTURE- $789.89
21 65752800 6 SCREW-M4 X 10- $2.66
22 85692300 16 SCREW 5X20-M5 X 20- Unavailable
23 87363300 1 LH DOOR WOOFER GRILLE-HIGH POWER HI-FI VERSION- $224.40
23 87363500 1 LH DOOR WOOFER GRILLE-STANDARD- $197.46
23 87363900 1 RH DOOR WOOFER GRILLE-HIGH POWER HI-FI VERSION- $224.40
23 87364100 1 RH DOOR WOOFER GRILLE-STANDARD- $197.46
24 85833900 10 SCREW-M5 X 16- Unavailable
25 67278400 10 BRACKET Unavailable
26 86214900 1 RH DOOR PULL HANDLE BRACKET $44.07
26 86215200 1 LH DOOR PULL HANDLE BRACKET $44.07
27 86918000 1 RH DOOR PULL HANDLE-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - STC1 - STC2 - NOT FOR GD Unavailable
27 87058000 1 LH DOOR PULL HANDLE-INTP- -LEATHER- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - STC1 - STC2 - APPLICABLE FOR GD Unavailable
27 88278600 1 RH DOOR PULL HANDLE-INTA- -ALCANTARA- -STC1- -STC2- -NOT FOR GD- Unavailable
27 88328700 1 LH DOOR PULL HANDLE-INTA- -ALCANTARA- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
28 86916700 1 LH DOOR PULL HANDLE-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - STC1 - STC2 - NOT FOR GD Unavailable
28 87060200 1 RH DOOR PULL HANDLE-INTP- -LEATHER- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - STC1 - STC2 - APPLICABLE FOR GD Unavailable
28 88278500 1 LH DOOR PULL HANDLE-INTA- -ALCANTARA- -STC1- -STC2- -NOT FOR GD- Unavailable
28 88329300 1 RH DOOR PULL HANDLE-INTA- -ALCANTARA- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
29 86858100 1 DRIVER SIDE GRAB HANDLE SPACER Unavailable
29 87231500 1 PASSENGER SIDE GRAB HANDLE SPACER $23.79
30 14371279 2 BRACKET $2.98
31 86916900 1 RH DOOR CARD LHD-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - STC1 - STC2 - NOT FOR GD Unavailable
31 87057300 1 RH DOOR CARD RHD-INTP- -LEATHER- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - STC1 - STC2 - APPLICABLE FOR GD Unavailable
31 87312500 1 RH DOOR CARD LHD-INTA- -ALCANTARA- -STC1- -STC2- -NOT FOR GD- - INTA - ALCANTARA - STC1 - STC2 - NOT FOR GD Unavailable
31 87316400 1 RH DOOR CARD RHD-INTA- -ALCANTARA- -STC1- -STC2- -APPLICABLE FOR GD- - INTA - ALCANTARA - STC1 - STC2 - APPLICABLE FOR GD $3,898.78
32 86915700 1 LH DOOR CARD LHD-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- Unavailable
32 87051700 1 LH DOOR CARD RHD-INTP- -LEATHER- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - STC1 - STC2 - APPLICABLE FOR GD Unavailable
32 87310700 1 LH DOOR CARD LHD-INTA- -ALCANTARA- -STC1- -STC2- -NOT FOR GD- - INTA - ALCANTARA - STC1 - STC2 - NOT FOR GD Unavailable
32 87315600 1 LH DOOR CARD RHD-INTA- -ALCANTARA- -STC1- -STC2- -APPLICABLE FOR GD- - INTA - ALCANTARA - STC1 - STC2 - APPLICABLE FOR GD Unavailable
33 86160700 1 RH DOOR PANEL POCKET LHD-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- -APPLICABLE UNTIL DEPLETION- - INTP - LEATHER - STC1 - STC2 - NOT FOR GD Unavailable
33 87873000 1 RH DOOR PANEL POCKET LHD-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- -APPLICABLE AFTER DEPLETION OF 86160700- Unavailable
33 86207700 1 LH DOOR PANEL POCKET LHD-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- -APPLICABLE UNTIL DEPLETION- - INTP - LEATHER - STC1 - STC2 - NOT FOR GD Unavailable
33 87872900 1 LH DOOR PANEL POCKET LHD-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- -APPLICABLE AFTER DEPLETION OF 86207700- $1,473.86
33 87302600 1 LH DOOR PANEL POCKET LHD-INTA- -ALCANTARA- -STC1- -STC2- -NOT FOR GD- -APPLICABLE UNTIL DEPLETION- - INTA - ALCANTARA - STC1 - STC2 - NOT FOR GD Unavailable
33 87873300 1 LH DOOR PANEL POCKET LHD-INTA- -ALCANTARA- -STC1- -STC2- -NOT FOR GD- -APPLICABLE AFTER DEPLETION OF 87302600- Unavailable
33 87312200 1 RH DOOR PANEL POCKET LHD-INTA- -ALCANTARA- -STC1- -STC2- -NOT FOR GD- -APPLICABLE UNTIL DEPLETION- - INTA - ALCANTARA - STC1 - STC2 - NOT FOR GD Unavailable
33 87873400 1 RH DOOR PANEL POCKET LHD-INTA- -ALCANTARA- -STC1- -STC2- -NOT FOR GD- -APPLICABLE AFTER DEPLETION OF 87312200- Unavailable
33 87873700 1 LH DOOR PANEL POCKET RHD-INTP- -LEATHER- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
33 87873800 1 RH DOOR PANEL POCKET RHD-INTP- -LEATHER- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
33 87874100 1 LH DOOR PANEL POCKET RHD-INTA- -ALCANTARA- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
33 87874200 1 RH DOOR PANEL POCKET RHD-INTA- -ALCANTARA- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
34 86214500 1 MIRROR CONTROLS PANEL $491.97
35 65071900 2 SCREW-M6 X 40- -NO LONGER SUPPLIED- -REPLACED BY 87627200- - 6 X 40MM Superseded
35 87627200 2 SCREW-M6 X 40- Unavailable
36 87167900 1 LH DOOR CARD SUBSTRUCTURE LHD-CARBON- -NOT FOR GD- $2,930.67
36 87169400 1 RH DOOR CARD SUBSTRUCTURE LHD-CARBON- -NOT FOR GD- $2,875.92
36 87464900 1 LH DOOR PANEL CARD SUBSTRUCTURE RHD-CARBON- -APPLICABLE FOR GD- $2,875.92
36 87465200 1 RH DOOR PANEL CARD SUBSTRUCTURE RHD-CARBON- -APPLICABLE FOR GD- $2,930.67
37 83198200 1 JBL LOGO-HIGH POWER HI-FI VERSION- $27.20
38 85833700 2 SCREW 5X14-M5 X 14- Unavailable
39 255869 2 CLIP $2.27
40 145854 2 RING CLAMP 200MM Unavailable
41 86077300 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
