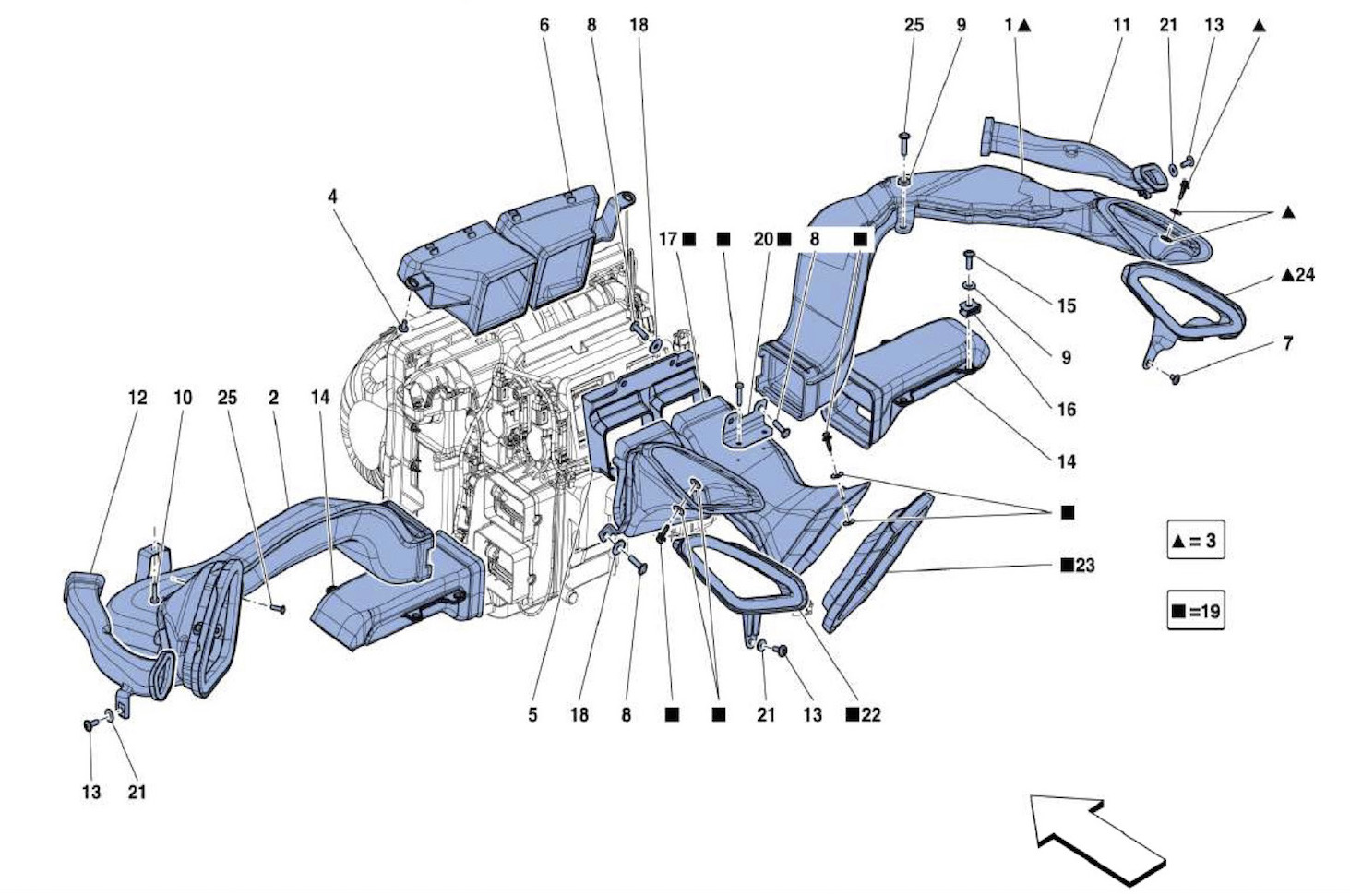

DASHBOARD AIR DUCTING

Go to Split View

DASHBOARD AIR DUCTING

Location Part # Quantity* Description Price Add To Cart
1 86180300 1 RH PASSENGER SIDE AIR VENT DUCT COMPLETE LHD-AFTER DEPLETION, ORDER COMPL. 86180200 REF. 3- -NOT FOR GD- -APPLICABLE UNTIL DEPLETION- Unavailable
2 86179700 1 LH DRIVER SIDE AIR VENT DUCT COMPLETE LHD-NOT FOR GD- $207.34
2 87023000 1 RH DRIVER SIDE AIR VENT DUCT COMPLETE RHD-APPLICABLE FOR GD- $215.42
3 86180200 1 RH PASSENGER VENTILATION DUCT COMPLETE LHD-NOT FOR GD- $143.62
3 87028400 1 LH PASSENGER VENTILATION DUCT COMPLETE RHD-APPLICABLE FOR GD- $161.57
4 85692000 2 SCREW 5X10-M5 X 10- Unavailable
5 83127400 1 CENTRE AIR DUCT CONNECTOR $13.62
6 86166200 1 HVAC DEFROSTER CONNECTOR LHD-NOT FOR GD- $91.55
6 87030200 1 HVAC DEFROSTER CONNECTOR RHD-APPLICABLE FOR GD- $91.55
7 85691900 1 SCREW 5X8-M5 X 8- Unavailable
8 64830600 7 SCREW 6X22-M6 X 22- - WASHER USE 12605374 Unavailable
9 12644401 5 WASHER Superseded
10 85833900 1 SCREW-M5 X 16- Unavailable
11 86175500 1 RH DEMISTER DUCT COMPLETE LHD-NOT FOR GD- $84.39
11 87031300 1 LH DEMISTER DUCT COMPLETE RHD-APPLICABLE FOR GD- $84.39
12 86170700 1 LH DEMISTER DUCT COMPLETE LHD-NOT FOR GD- $84.39
12 87030600 1 RH DEMISTER DUCT COMPLETE RHD-APPLICABLE FOR GD- $84.39
13 85692000 3 SCREW 5X10-M5 X 10- Unavailable
13 85833700 3 SCREW 5X14-M5 X 14- -NO LONGER SUPPLIED- -REPLACED BY 85692000- Unavailable
14 84497100 2 FOOTWELL DUCT $63.78
15 65377400 4 SCREW 6X18-M6 X 18- -NO LONGER SUPPLIED- -REPLACED BY 16286024- Superseded
15 16286024 4 SCREW 5X16-M5 X 16- Unavailable
16 62766300 4 SPIRE CLIP Unavailable
17 86178500 1 RH DRIVER SIDE / LH PASSENGER SIDE VENT DUCT-AFTER DEPLETION, ORDER COMPL. 86178400 REF. 19- -NOT FOR GD- -APPLICABLE UNTIL DEPLETION- Unavailable
18 12643701 7 FLAT WASHER Superseded
19 86178400 1 RH DRIVERS / LH PASSENGER VENTILATION DUCT COMPLETE LHD-NOT FOR GD- $166.99
19 87023900 1 RH DRIVERS / LH PASSENGER VENTILATION DUCT COMPLETE RHD-APPLICABLE FOR GD- $197.46
20 86178200 1 FASTENER BRACKET FOR LH PASSENGER SIDE VENT DUCT-AFTER DEPLETION, ORDER COMPL. 86178400 REF. 19- -APPLICABLE UNTIL DEPLETION- Unavailable
21 12646624 3 WASHER 6.15-15X1.5 Unavailable
22 86949200 1 AIR DUCT FASTENER SURROUND-APPLICABLE UNTIL DEPLETION- $11.22
23 86949300 1 AIR DUCT FASTENER SURROUND-APPLICABLE UNTIL DEPLETION- $11.67
24 86949400 1 AIR DUCT FASTENER SURROUND-APPLICABLE UNTIL DEPLETION- $11.67
25 16286124 2 SCREW 6X20-M6 X 20- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
