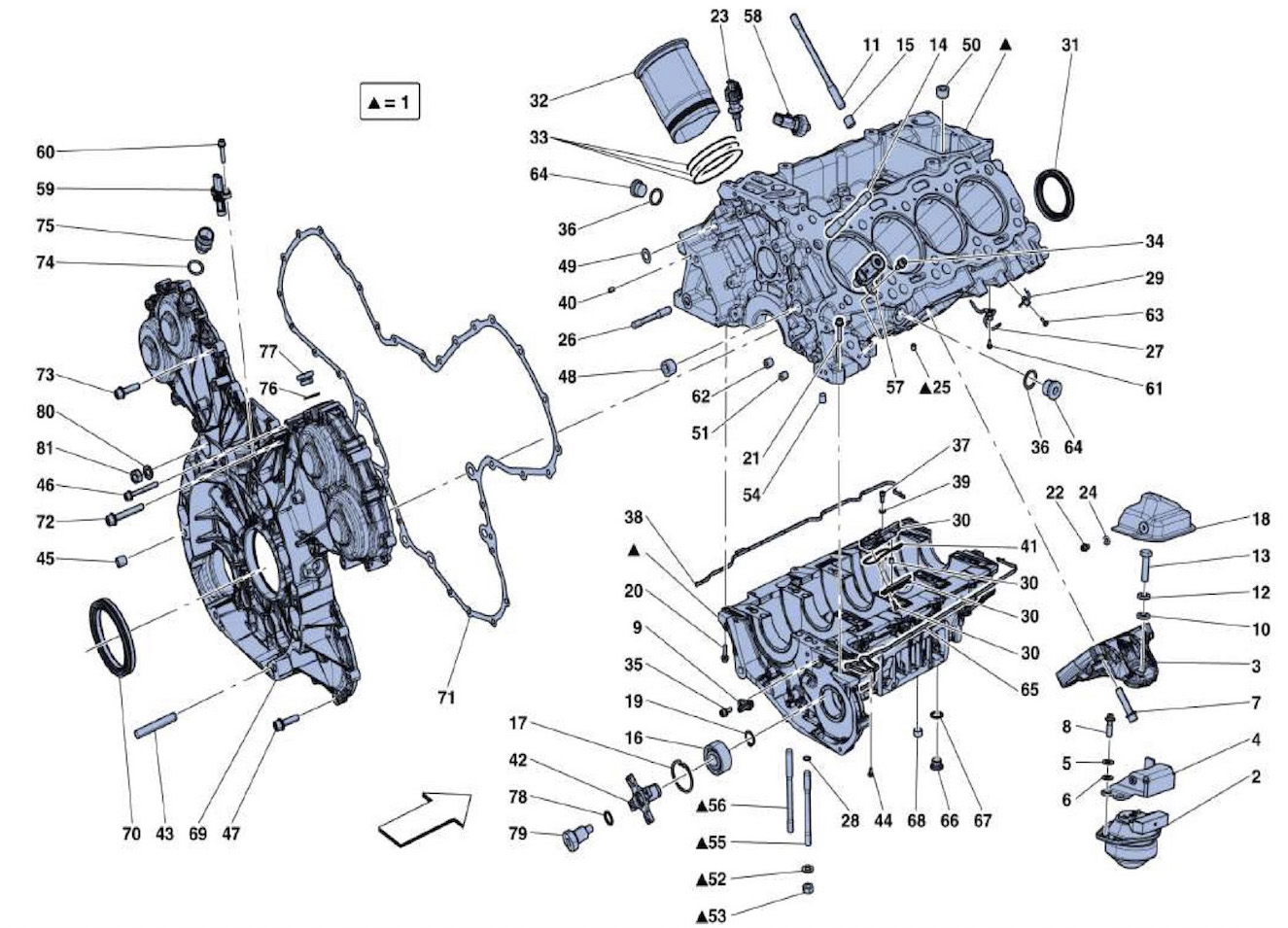

CRANKCASE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 319256 *Qty: 1 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY Unavailable
Location: 2 Prev | Next Part: 312805 *Qty: 1 RH BUSHING $391.69
Location: 2 Prev | Next Part: 312806 *Qty: 1 LH PLUG $391.69
Location: 3 Prev | Next Part: 324057 *Qty: 2 ENGINE STRUT $218.28
Location: 4 Prev | Next Part: 263593 *Qty: 1 RH BUSH TRAVEL LIMITER BRACKET $95.96
Location: 4 Prev | Next Part: 263594 *Qty: 1 LH BUSH TRAVEL LIMITER BRACKET $95.96
Location: 5 Prev | Next Part: 127497 *Qty: 6 SPRING WASHER 10MM- GREY $0.90
Location: 6 Prev | Next Part: 14496624 *Qty: 6 WASHER D. 10.50-21 X2 $0.90
Location: 7 Prev | Next Part: 290127 *Qty: 8 SCREW $19.57
Location: 8 Prev | Next Part: 243841 *Qty: 6 SCREW $1.77
Location: 9 Prev | Next Part: 317217 *Qty: 1 CHAIN COOLING NOZZLE ASSEMBLY $51.77
Location: 10 Prev | Next Part: 10738021 *Qty: 2 WASHER $1.46
Location: 11 Prev | Next Part: 270464 *Qty: 18 STUD BOLT $27.61
Location: 12 Prev | Next Part: 127498 *Qty: 2 SPRING WASHER 12MM $0.90
Location: 13 Prev | Next Part: 11599534 *Qty: 2 SCREW $2.30
Location: 14 Prev | Next Part: 271564 *Qty: 2 STUD BOLT $25.88
Location: 15 Prev | Next Part: 185360 *Qty: 4 CENTERING DOWEL $3.06
Location: 16 Prev | Next Part: 247049 *Qty: 1 BEARING $56.21
Location: 17 Prev | Next Part: 11060276 *Qty: 1 SNAP RING $0.90
Location: 18 Prev | Next Part: 304792 *Qty: 2 SHIELD $52.33
Location: 19 Prev | Next Part: 11066876 *Qty: 1 CIRCLIP 20E $0.90
Location: 20 Prev | Next Part: 231620 *Qty: 12 SCREW 6X25-M6 X 25- $0.90
Location: 21 Prev | Next Part: 231621 *Qty: 1 ALLEN SCREW 6X30-M6 X 30- $0.90
Location: 22 Prev | Next Part: 233600 *Qty: 4 SCREW 6X12-M6 X 12- $0.90
Location: 23 Prev | Next Part: 180137 *Qty: 1 WATER/OIL TEMPERATURE SENSOR $26.68
Location: 24 Prev | Next Part: 12644404 *Qty: 4 WASHER Superseded
Location: 25 Prev | Next Part: 312059 *Qty: 10 ALIGNMENT DOWEL $1.39
Location: 26 Prev | Next Part: 278120 *Qty: 8 STUD BOLT $21.50
Location: 27 Prev | Next Part: 298858 *Qty: 4 PISTON COOLING NOZZLE ASSEMBLY $38.65
Location: 28 Prev | Next Part: 134705 *Qty: 20 GASKET $0.90
Location: 29 Prev | Next Part: 298859 *Qty: 8 PISTON COOLING NOZZLE ASSEMBLY $26.61
Location: 30 Prev | Next Part: 312836 *Qty: 0 COMPLETE VALVE HOLDER $290.75
Location: 31 Prev | Next Part: 271598 *Qty: 1 GASKET $34.89
Location: 32 Prev | Next Part: 271810 *Qty: 8 CYLINDER SLEEVE $269.99
Location: 33 Prev | Next Part: 294153 *Qty: 24 GASKET $3.75
Location: 34 Prev | Next Part: 233600 *Qty: 1 SCREW 6X12-M6 X 12- $0.90
Location: 35 Prev | Next Part: 282392 *Qty: 1 SCREW 6X14 Unavailable
Location: 36 Prev | Next Part: 10263460 *Qty: 2 GASKET Superseded
Location: 37 Prev | Next Part: 13026924 *Qty: 8 SCREW 6X14 $0.90
Location: 38 Prev | Next Part: 296397 *Qty: 1 GASKET $57.51
Location: 39 Prev | Next Part: 11197774 *Qty: 8 CONIC WASHER 6.4X12X1.2- Q.TY 2 WITH SCREW 14303824, REF. 19 $0.90
Location: 40 Prev | Next Part: 311001 *Qty: 2 ALIGNMENT DOWEL $3.36
Location: 41 Prev | Next Part: 103994 *Qty: 4 GASKET $5.69
Location: 42 Prev | Next Part: 304697 *Qty: 1 DRIVE JOINT $152.71
Location: 43 Prev | Next Part: 13546734 *Qty: 10 STUD 40MM $1.49
Location: 44 Prev | Next Part: 231618 *Qty: 1 ALLEN HEAD SCREW 6X20-M6 X 20- $0.90
Location: 45 Prev | Next Part: 100052 *Qty: 2 CENTERING DOWEL $2.42
Location: 46 Prev | Next Part: 231624 *Qty: 7 ALLEN SCREW 6X45-M6 X 45- $0.90
Location: 46 Prev | Next Part: 231621 *Qty: 2 ALLEN SCREW 6X30-M6 X 30- $0.90
Location: 47 Prev | Next Part: 231621 *Qty: 15 ALLEN SCREW 6X30-M6 X 30- $0.90
Location: 48 Prev | Next Part: 282753 *Qty: 1 COVER $7.92
Location: 49 Prev | Next Part: 281725 *Qty: 2 GASKET $1.42
Location: 50 Prev | Next Part: 282753 *Qty: 1 COVER $7.92
Location: 51 Prev | Next Part: 282755 *Qty: 2 THREADED PLUG D 10X1.25 Unavailable
Location: 52 Prev | Next Part: 178348 *Qty: 20 WASHER $0.90
Location: 53 Prev | Next Part: 133988 *Qty: 20 PLAIN NUT 10MM $0.90
Location: 54 Prev | Next Part: 282755 *Qty: 2 THREADED PLUG D 10X1.25 Unavailable
Location: 55 Prev | Next Part: 270465 *Qty: 10 STUD BOLT $21.57
Location: 56 Prev | Next Part: 270466 *Qty: 10 STUD BOLT $24.16
Location: 57 Prev | Next Part: 269972 *Qty: 1 OIL PRESSURE SOLENOID VALVE $199.38
Location: 58 Prev | Next Part: 318371 *Qty: 1 OIL PRESSURE SENSOR $34.04
Location: 59 Prev | Next Part: 287273 *Qty: 1 RPM SENSOR $89.60
Location: 60 Prev | Next Part: 231618 *Qty: 1 ALLEN HEAD SCREW 6X20-M6 X 20- $0.90
Location: 61 Prev | Next Part: 315493 *Qty: 4 SCREW $1.29
Location: 62 Prev | Next Part: 291078 *Qty: 2 THREADED PLUG 12X11 $2.91
Location: 63 Prev | Next Part: 315493 *Qty: 8 SCREW $1.29
Location: 64 Prev | Next Part: 307477 *Qty: 2 THREADED PLUG $4.42
Location: 65 Prev | Next Part: 310839 *Qty: 1 GASKET Unavailable
Location: 66 Prev | Next Part: 306145 *Qty: 3 COVER $11.42
Location: 67 Prev | Next Part: 10259960 *Qty: 3 COPPER WASHER $0.90
Location: 68 Prev | Next Part: 164400 *Qty: 1 PLUG $3.97
Location: 69 Prev | Next Part: 316665 *Qty: 1 REAR TIMING COVER $1,285.50
Location: 70 Prev | Next Part: 240214 *Qty: 1 REAR MAIN OIL SEAL $55.47
Location: 71 Prev | Next Part: 313188 *Qty: 1 CRANKCASE GASKET $542.01
Location: 72 Prev | Next Part: 285494 *Qty: 5 SCREW-M8 X 50- $1.20
Location: 73 Prev | Next Part: 231629 *Qty: 5 ALLEN SCREW 8X30-M8 X 30- $0.90
Location: 74 Prev | Next Part: 10263160 *Qty: 1 WASHER $0.90
Location: 75 Prev | Next Part: 309101 *Qty: 1 CONNECTOR $18.98
Location: 76 Prev | Next Part: 10263160 *Qty: 1 WASHER $0.90
Location: 77 Prev | Next Part: 10300811 *Qty: 1 PLUG $3.15
Location: 78 Prev | Next Part: 302618 *Qty: 1 GASKET $1.40
Location: 79 Prev | Next Part: 307936 *Qty: 1 COVER $18.46
Location: 80 Prev | Next Part: 178348 *Qty: 8 WASHER $0.90
Location: 81 Prev | Next Part: 133988 *Qty: 8 PLAIN NUT 10MM $0.90

* Quantity shown indicates the number of pieces used in the diagram.
