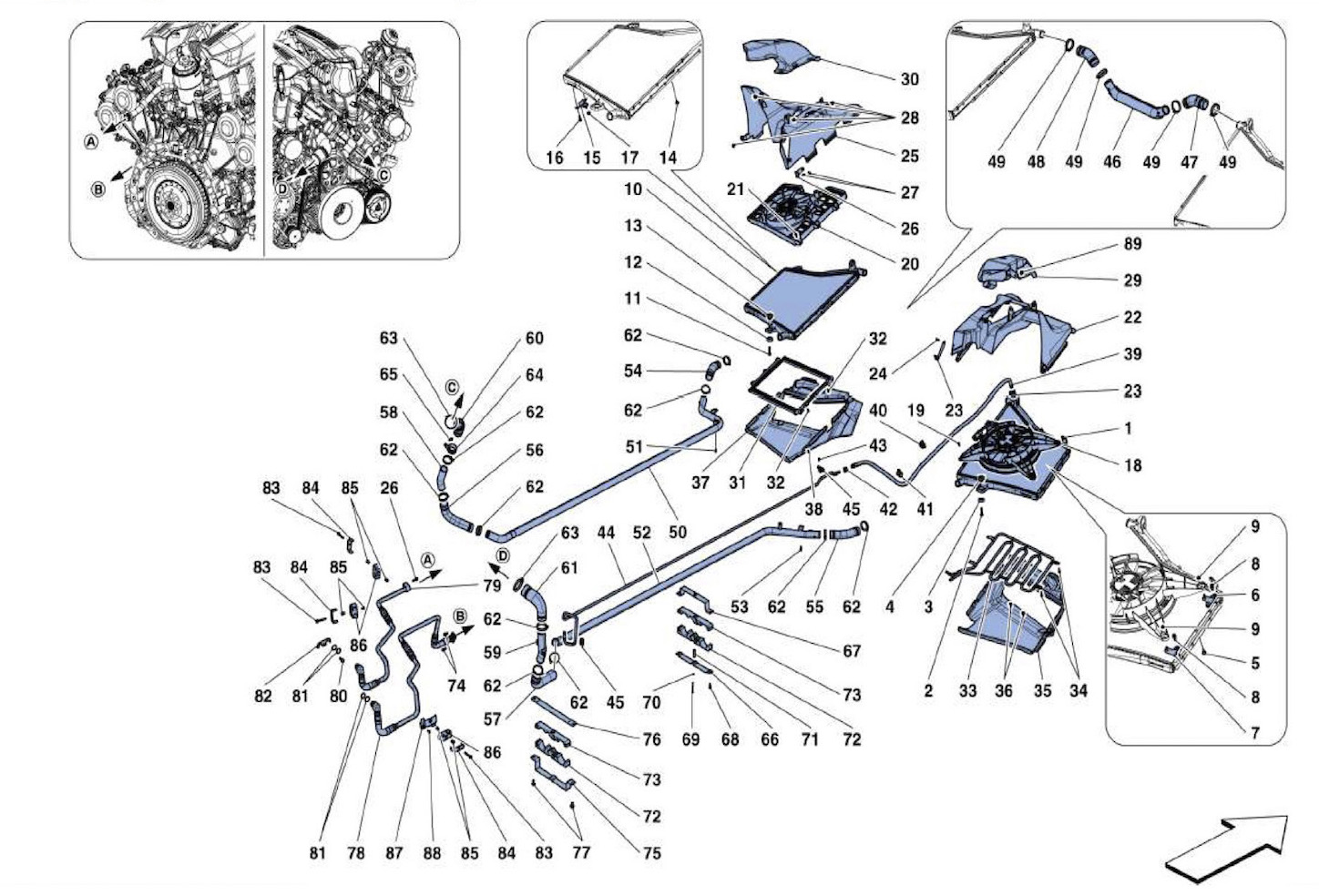

COOLING – RADIATORS AND DUCTS

Location Part # Quantity* Description Price Add To Cart
1 312913 1 RH WATER RADIATOR $1,673.71
2 16287734 3 SCREW 8X50-M8 X 50- $1.81
3 247751 3 WASHER $8.06
4 237478 3 MOUNTING $25.86
5 15699804 1 SCREW 6X20-M6 X 20- Unavailable
6 308980 1 ELECTRIC FAN MOUNTING BRACKET $151.82
7 308982 1 ELECTRIC FAN MOUNTING BRACKET $46.57
8 11566524 3 SCREW 5X20-M5 X 20- Unavailable
9 14040514 2 NUT Unavailable
10 312912 1 LH WATER RADIATOR $1,673.71
11 16287734 3 SCREW 8X50-M8 X 50- $1.81
12 247751 3 WASHER $8.06
13 237478 3 MOUNTING $25.86
14 15699804 1 SCREW 6X20-M6 X 20- Unavailable
15 308938 2 CONDENSER MOUNTING BRACKET COMPLETE $20.69
16 11566524 4 SCREW 5X20-M5 X 20- Unavailable
17 14040514 2 NUT Unavailable
18 315071 1 ELECTRIC FAN $949.00
19 11566724 2 SCREW 5X25-M5 X 25- $2.72
20 314522 1 ELECTRIC FAN $1,087.04
21 11566724 6 SCREW 5X25-M5 X 25- $2.72
22 86730000 1 RH RADIATOR UPPER SECTION DUCT COMPLETE $125.94
23 241986 1 SCREW COLLAR $1.32
24 231617 2 SCREW 6X18-M6 X 18- -NO LONGER SUPPLIED- Unavailable
25 86729700 1 LH RADIATOR UPPER SECTION DUCT COMPLETE $125.94
26 231620 1 SCREW 6X25-M6 X 25- Unavailable
27 231617 2 SCREW 6X18-M6 X 18- -NO LONGER SUPPLIED- Unavailable
28 81290900 4 SCREW 6X20X22 Unavailable
29 86368800 1 RH UPPER SECTION RADIATOR DUCT COMPLETE $91.43
30 86368400 1 LH UPPER SECTION RADIATOR DUCT COMPLETE $91.43
31 262836 1 CONDENSER $1,023.10
32 11566524 3 SCREW 5X20-M5 X 20- Unavailable
33 308943 1 POWER STEERING FLUID COOLING $655.67
34 11566524 4 SCREW 5X20-M5 X 20- Unavailable
35 86730600 1 RH RADIATOR LOWER DUCT COMPLETE $131.12
36 80874700 4 SCREW 6X22-M6 X 22- -NO LONGER SUPPLIED- -REPLACED BY 83442900- - ORIG. 51810312 Superseded
36 83442900 4 SCREW 6X22-M6 X 22- - ORIG. 51810312 Unavailable
37 86730200 1 LH RADIATOR LOWER DUCT COMPLETE $131.12
38 16285224 10 SCREW 5X20-M5 X 20- Unavailable
39 311439 1 VENT PIPE FROM RADIATOR TO DISCONNECTOR UNION $79.35
40 259844 3 CLIP-NO LONGER SUPPLIED- -REPLACED BY 247440- $0.90
40 247440 3 CLIP Unavailable
41 10441490 2 P CLIP BRACKET WITH SHEATH D14MM Unavailable
42 13125470 1 COLLAR Unavailable
43 231617 3 SCREW 6X18-M6 X 18- Unavailable
44 305447 1 RADIATOR SELF-BLEEDING PIPE $56.54
45 10441190 2 BRACKET WITH SHEATH D8MM $0.90
46 311601 1 H2O PIPE $119.04
47 311440 1 RH HOSE UNION RADIATOR CONNECTION $62.10
48 311442 1 LH HOSE UNION RADIATOR CONNECTION $62.10
49 262114 4 COLLAR $1.66
50 308679 1 UNDERBODY H20 DELIVERY PIPE-NOT FOR USA, CDN- $897.24
50 318397 1 UNDERBODY H20 DELIVERY PIPE-APPLICABLE FOR USA, CDN- $278.25
51 11568024 1 SCREW-M6 X 18- $1.26
52 313345 1 UNDERBODY WATER RETURN PIPE $258.80
53 11568024 1 SCREW-M6 X 18- $1.26
54 313343 1 WATER DELIVERY SLEEVE $60.37
55 313344 1 WATER RETURN SLEEVE $60.37
56 306911 1 REAR DELIVERY SLEEVE $207.04
57 306915 1 REAR RETURN SLEEVE $84.53
58 306910 1 REAR DELIVERY PIPE $48.48
59 324564 1 REAR RETURN PIPE $104.12
60 306908 1 DELIVERY SLEEVE FROM PUMP $67.27
61 307916 1 RETURN HOSE TO PUMP $75.90
62 262114 10 COLLAR $1.66
63 262383 2 COLLAR $4.24
64 182301 1 BRACKET $24.34
65 11568024 1 SCREW-M6 X 18- $1.26
66 263069 3 LOWER BRACKET $16.38
67 263068 3 UPPER BRACKET $22.41
68 13833614 6 SCREW-M5 X 16- $1.81
69 14302424 3 SCREW 4X45-M4 X 45- Unavailable
70 14497704 3 WASHER Unavailable
71 263070 3 BUSHING $7.06
72 310745 4 PIPE LOWER RETAINER BLOCK $24.14
73 322053 3 PIPE UPPER RETAINER BLOCK $25.86
73 310747 1 PIPE UPPER RETAINER BLOCK $24.14
74 248334 2 SCREW 6X16-M6 X 16- $0.90
75 263137 1 LOWER BRACKET $17.23
76 263136 1 UPPER BRACKET $16.38
77 13836414 2 BOLT-M6 X 16- $2.88
78 318318 1 WATER DELIVERY PIPE Unavailable
79 318319 1 WATER RETURN PIPE Unavailable
80 231617 1 SCREW 6X18-M6 X 18- Unavailable
81 166656 4 O-RING Unavailable
82 309168 1 FORK $32.76
83 231624 3 ALLEN SCREW 6X45-M6 X 45- Unavailable
84 243398 3 PLATE $13.70
85 243399 6 BUSHING Unavailable
86 243397 3 PILLORY BLOCK $20.69
87 315654 1 WATER PIPE MOUNTING BRACKET $62.10
88 231617 1 SCREW 6X18-M6 X 18- Unavailable
89 14059211 2 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
