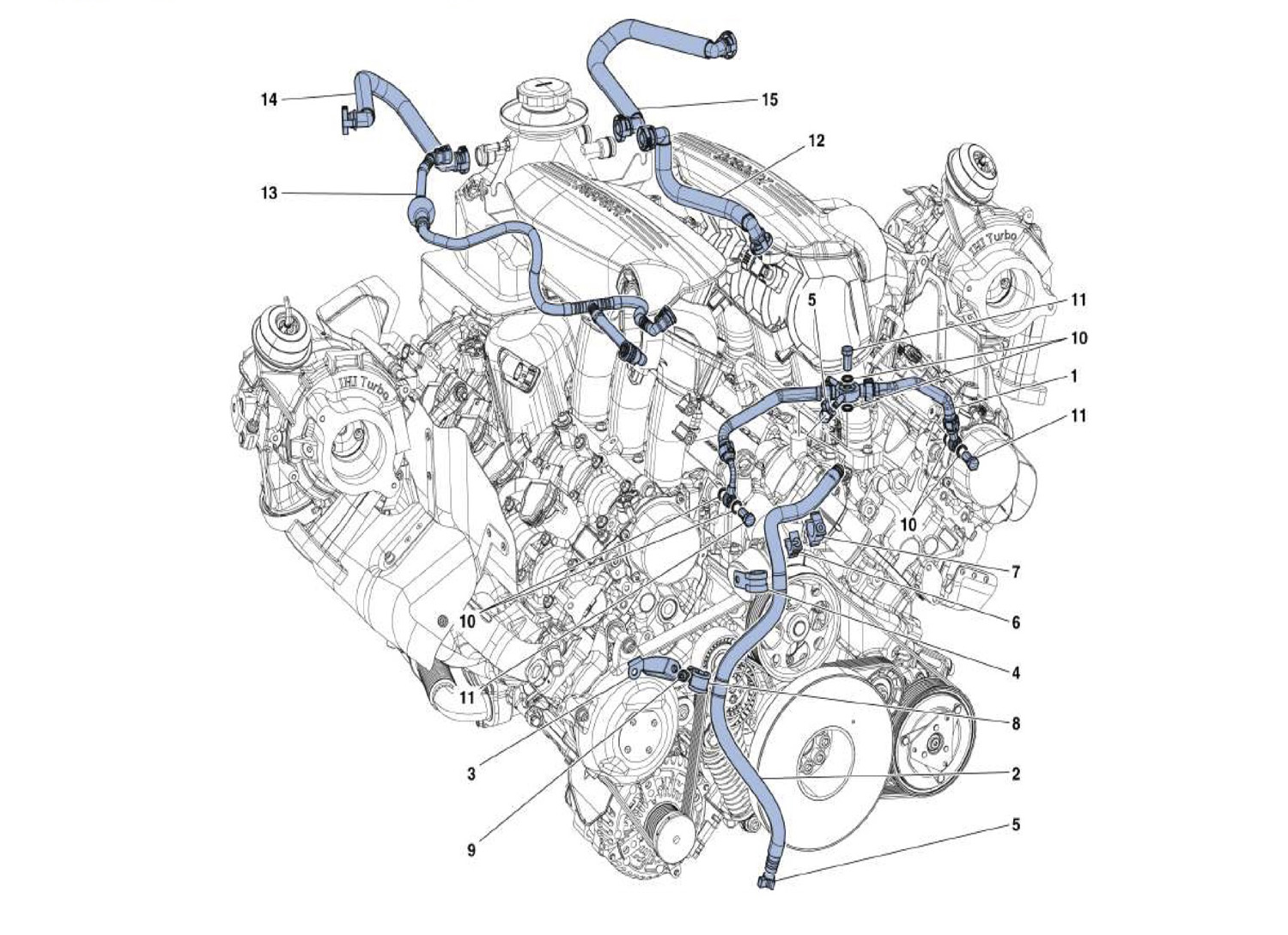

VENTING

Go to Split View

VENTING

Location Part # Quantity* Description Price Add To Cart
2 323682 1 RUBBER PIPE COMPL. WITH SHEATH $105.82
3 231618 10 SCREW -M6 X 20- Unavailable
3 324497 1 SELF-BLEEDING PIPE MOUNTING BRACKET -No longer supplied- -Replaced by 323685- $23.35
3 324497 1 SELF-BLEEDING PIPE MOUNTING BRACKET -No longer supplied- -Replaced by 324497- $23.35
3 324497 1 SELF-BLEEDING PIPE MOUNTING BRACKET $23.35
4 318122 1 BRACKET WITH SHEATH $8.24
5 13125470 2 COLLAR Unavailable
6 140727 1 CLIP $0.90
7 213069 1 CLIP Unavailable
8 10441590 1 BRACKET WITH SHEATH Unavailable
9 233600 1 SCREW -M6 X 12- Unavailable
10 10260960 6 GASKET Unavailable
11 11903811 3 PIPE UNION Unavailable
12 311359 1 PIPE FROM TANK TO REAR COVER -Not for USA $96.04
13 320566 1 PIPE FROM TANK TO MANIFOLD PLENUM -Not for USA $188.49
14 322002 1 RH VAPOUR INLET PIPE -Not for USA $97.85
14 322002 1 RH VAPOUR INLET PIPE -Not for USA $97.85
15 322004 1 LH VAPOUR INLET PIPE -Not for USA $97.85
15 322004 1 LH VAPOUR INLET PIPE -Not for USA $97.85

* Quantity shown indicates the number of pieces used in the diagram.
